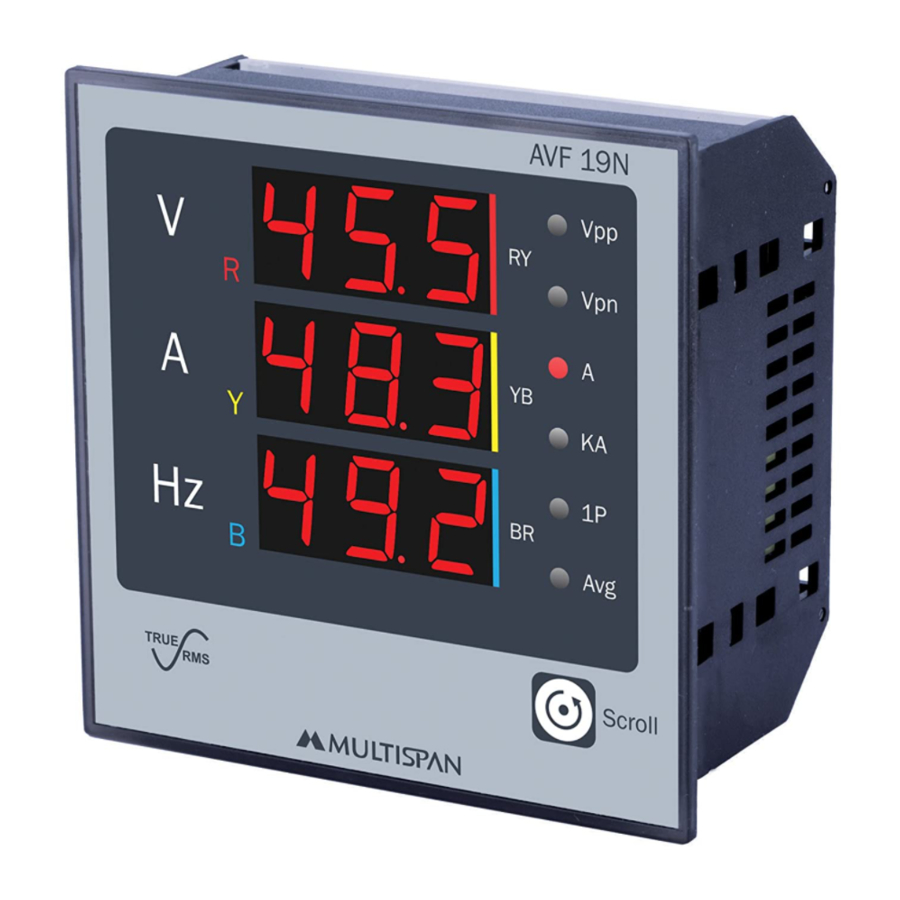

- Page 1 ProductManual 3PHASEPANELMETER AVF-19N MultispanControlInstrumentsPvtLtd 72/B,Phase1,GIDCEstate,Vatva,Ahmedabad-382445,Gujarat,India. +91-79-40029250 +91-9978991471 marketing@multispanindia.com www.multispanindia.com AVF-19N www.multispanindia.com...
- Page 2 TechnicalSpecification Model AVF-19N Display 3 Digit/Line 7 seg 0.56”,red LED Display Size (mm) 96(H) X 96 (W) X 50 (D) mm Panel Cutout 92 X 92 mm 50 To 500V AC P-P CAT III Voltage Input 30 To 300V AC P-N CAT III 0.5 To 5Amp AC direct or C.T...
- Page 3 CT Ratio Mode CT Ratio changed by If CT primary is To save changes turn OFF greater than 975 Amp. Then the instrument. “kA” Led will be ON and Bottom Display shown CT primary in kilo Amp. AVF-19N Page-2 www.multispanindia.com...
- Page 4 Accuracy Class: 1.0 Voltage(L-L) : 50-500V AC, CAT III (L-N) : 30-300V AC, CAT III CT Selection up to 6000/5 Amp AC CAT III www.multispanindia.com MadeinIndia 100-250V A C IP-65 50 / 6 0 H z, 3 VA AVF-19N Page-3 www.multispanindia.com...
- Page 5 1) The equipment should be cleaned regularly to avoid blockage of ventilating parts. 2) Clean the equipment with a clean soft cloth. Do not use isopropyl alcohol or any other cleaning agent. 3) Fusible resistor must not be replaced by operator. AVF-19N Page-4 www.multispanindia.com...
- Page 6 MechanicalDimensions RightSideView TopView MODEL 96mm 96mm 92mm 92mm 50mm 53mm DIMENSIONS AVF-19N Page-5 www.multispanindia.com...
- Page 7 Note AVF-19N Page-6 www.multispanindia.com...
- Page 8 Note Product improvement and upgrade is a constant procedure. So for more updated operating information and Support, Please contact our Email :- service@multispanindia.com AVF-19N Page-7 www.multispanindia.com...
