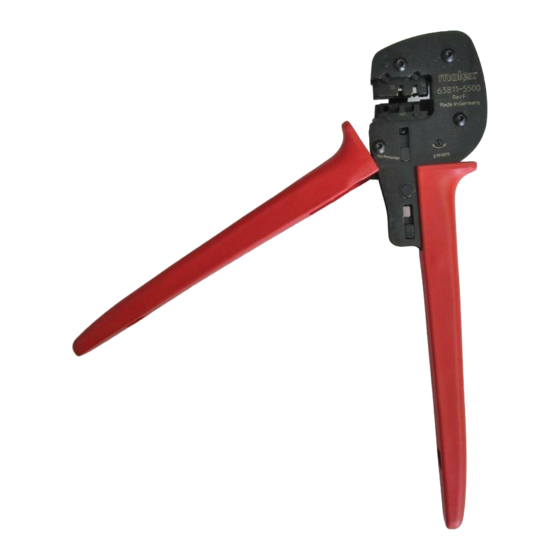

Hand Crimp Tool for Contact Pin Crimp Terminals
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Ergonomic soft grip handles for comfortable crimping
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant
SCOPE
Products: Contact Pin Crimp Terminals, 16-18 AWG.
Terminal Series No.
84590

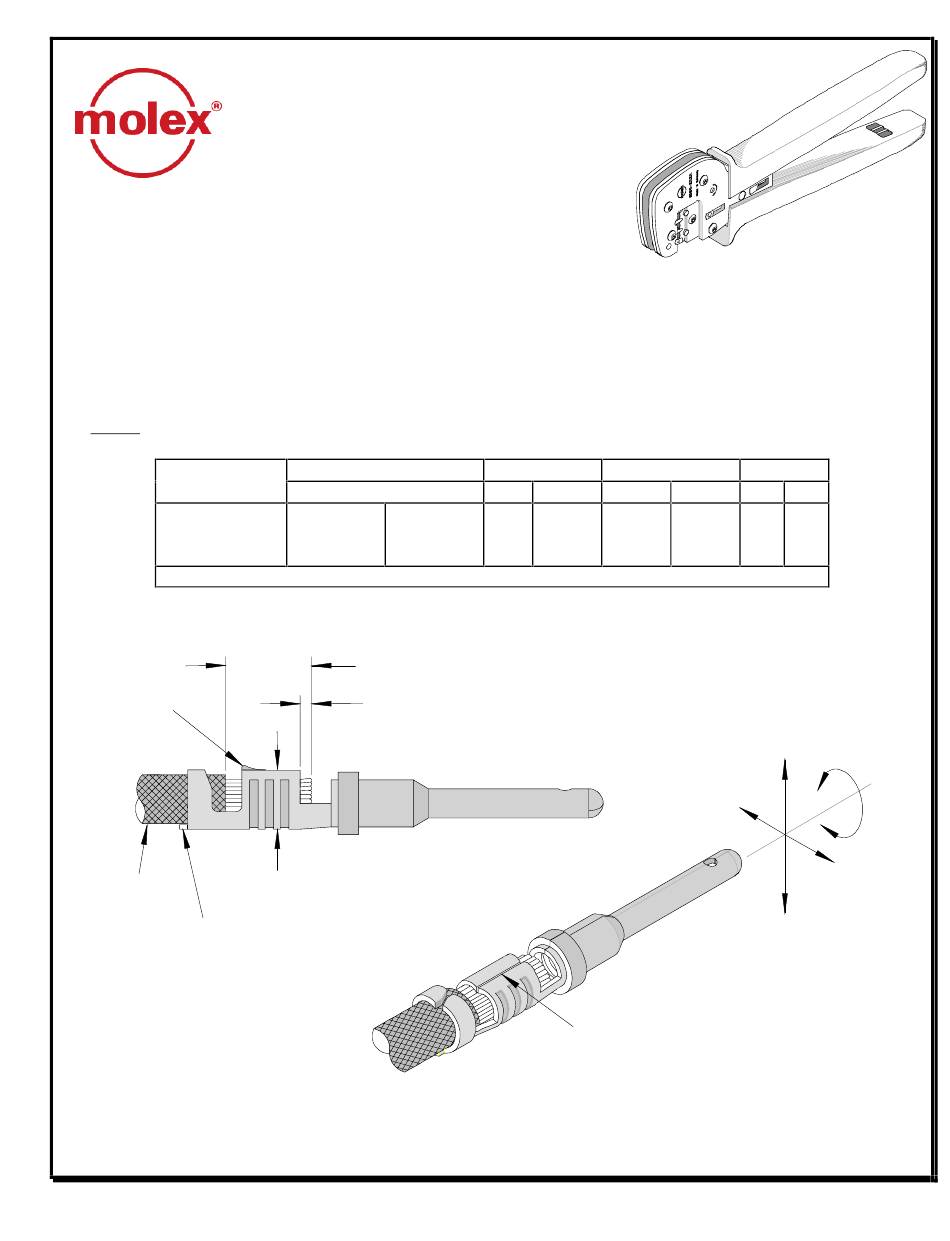

DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No. ATS-638115500
Revision: D
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-5500
Terminal Order No.
Æ
Available in Reel form only
Æ
Æ
84590-0020
84590-0031
Æ
Æ
84590-0025
84590-0040
Æ
Æ
84590-0026
84590-0043
Æ
Follow the Cut-Off Tab specifications on Applicator specification sheets.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 01-18-07
Revision Date: 01-18-07
Wire Size
Insulation Diameter
AWG
mm²
mm
16-18
0.82-1.33
1.40-2.11
SEAM
UNCONTROLLED COPY
TYPE 4C
Strip Length
in
mm
in
.055-.083
4.45
.175
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63811-5500
Summary of Contents for molex 63811-5500
- Page 1 Hand Crimp Tool for Contact Pin Crimp Terminals HAND CRIMP TOOL SPECIFICATION SHEET Order No. 63811-5500 FEATURES TYPE 4C ΠΠA full cycle ratcheting hand tool ensures complete crimps ΠErgonomic soft grip handles for comfortable crimping ΠA precision user-friendly terminal locator wire stop holds terminals in the proper crimping position...
- Page 2 25.0 OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
- Page 3 Hand Crimp Tool for Contact Pin Crimp Terminals HANDLE WIRE AGAINST OPEN WIRE STOP TERMINAL WIRE IN TERMINAL JAWS PARTIALLY CLOSED LOCATOR PUSH HERE TO CLOSED OPEN WIRE STOP Figure 2 Figure 3 3. Press down on the wire stop on the locator as shown in Figure1. Insert the proper terminal into the proper nest opening. Make sure when choosing the nest opening, it will correspond with the 16 or 18 profile on the hand tool.
- Page 4 Hand Crimp Tool for Contact Pin Crimp Terminals LIFT UP ON Locator Replacement THE LOCATOR See the parts list on the last page of this document for the proper locator order number. PRESS DOWN Follow the steps below to replace the locator. ON THE BRASS PIVOT SHAFT SWING...
- Page 5 CAUTION: Repetitive use of this tool should be avoided. Certification Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for customers to re-certify hand tools. This tool is qualified to pull force only. To re-certify, crimp a terminal to a wire, which has been stripped 12.7mm (1/2”) long, so there is no crimping of the insulation.
- Page 6 %$%FHE8WÁ %!##" !Á #"##%#%#%Á !&%&! &Á Et„wpÁBEÁ#" ÁTR4Á fxpƒtyq€3x€wp‰h€xÁ qpytyq€3x€wp‰h€xÁ qp„tyq€3x€wp‰h€xÁ p†ƒtyq€3x€wp‰h€xÁ # &#&!""Á 9f‰'Á# &#& " Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No. ATS-638115500 Release Date: 01-18-07 Page 6 of 6 Revision: D Revision Date: 01-18-07...
