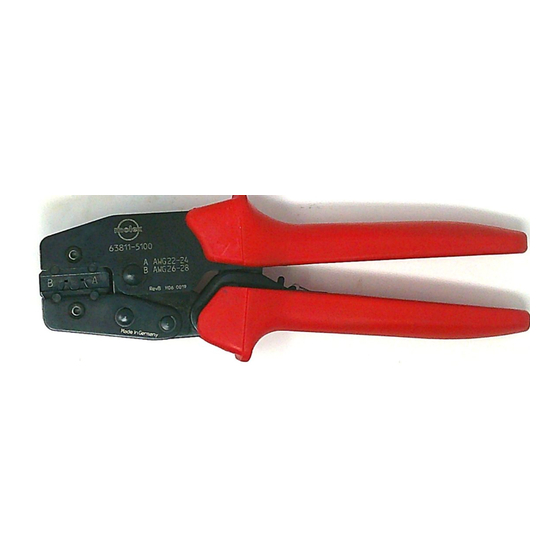

Hand Crimp Tool for Mini-Fit Jr.™ Crimp Terminals
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is WHMA-IPCA620 Class 2 and RoHS compliant
SCOPE
Products: Mini-Fit Jr.™ Male, and Female Crimp Terminals, 22-28 AWG.
Terminal
Series No.
Loose Piece
39-00-0047 39-00-0172 39-00-0046 39-00-0171
39-00-0066 39-00-0178 39-00-0065 39-00-0177
39-00-0086 39-00-0184 39-00-0085 39-00-0183
39-00-0092 39-00-0197 39-00-0091 39-00-0196
5556
39-00-0111 39-00-0203 39-00-0110 39-00-0202
39-00-0117 39-00-0210 39-00-0116 39-00-0209
39-00-0140 39-00-0216 39-00-0139 39-00-0215
39-00-0156 39-00-0435 39-00-0155 39-00-0434
39-00-0166
39-00-0049 39-00-0129 39-00-0048 39-00-0128
39-00-0068 39-00-0146 39-00-0067 39-00-0145
5558
39-00-0088 39-00-0222 39-00-0087 39-00-0221
39-00-0098 39-00-0433 39-00-0097 39-00-0432
39-00-0123
39-00-2212 39-00-2412 39-00-2211 39-00-2411
44485
39-00-2312
Doc No: ATS- 638115100
Revision: C

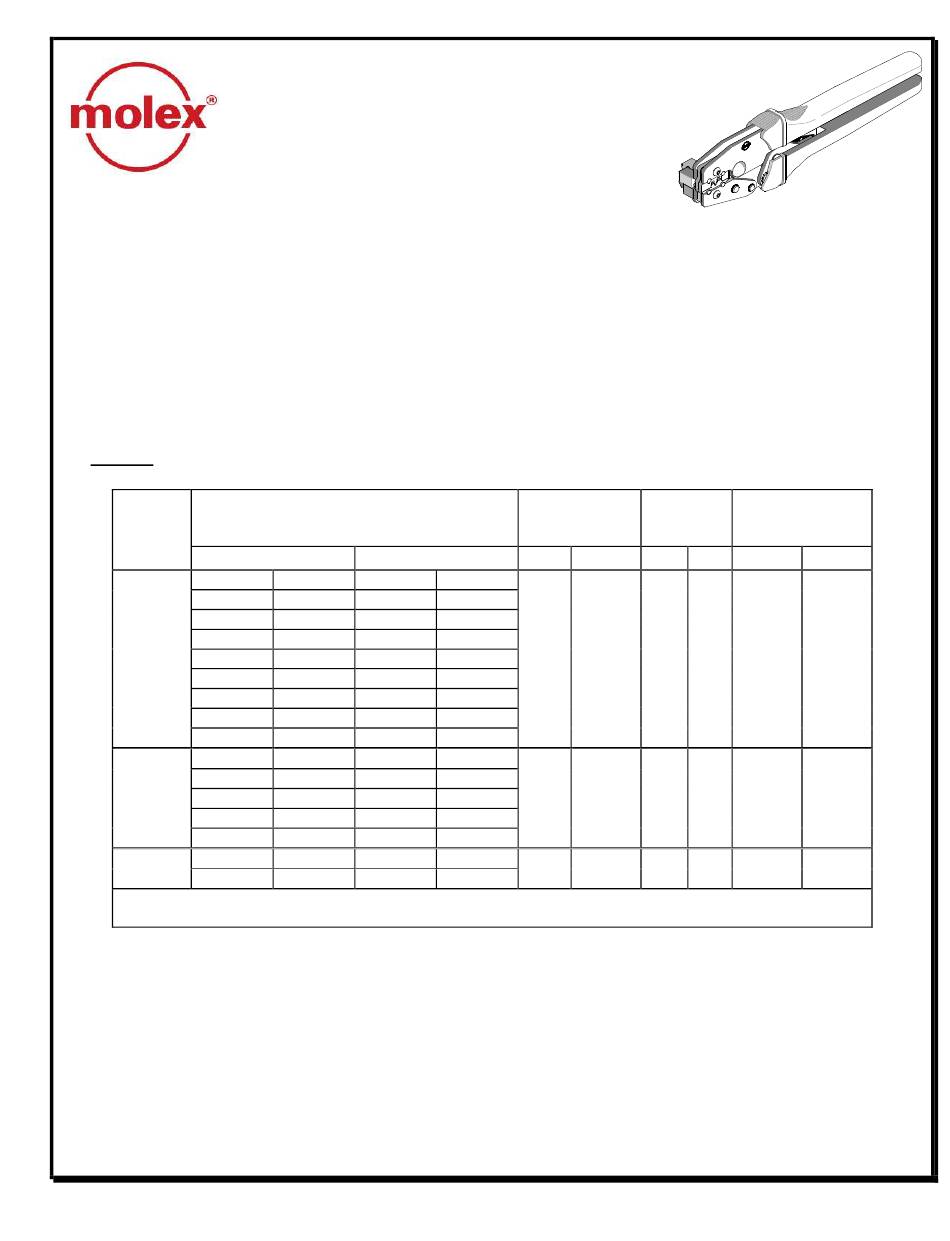

HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-5100
Terminal Order No.
Reel
39-00-0165
39-00-0122
39-00-2311
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
See Conditions on page 2
Release Date: 04-03-06
Revision Date: 03-27-08
Insulation
Wire Size
Diameter
Maximum
AWG mm²
mm In.
22-28 0.35-0.08
1.80
22-28 0.35-0.08
1.80
22-28 0.35-0.08
1.80
UNCONTROLLED COPY
TYPE 2C
Strip Length
mm
In.
.071 2.79-3.30 .110-.130
.071 2.79-3.30 .110-.130
.071 2.79-3.30 .110-.130
Page 1 of 7
