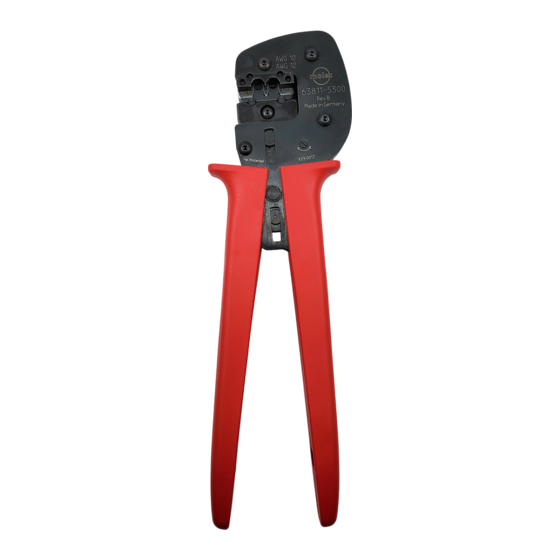

Hand Crimp Tool for MX150L Terminals
FEATURES
%
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
SCOPE
Products: MX150L 10-12 AWG
Terminal Series No.
19431
19434

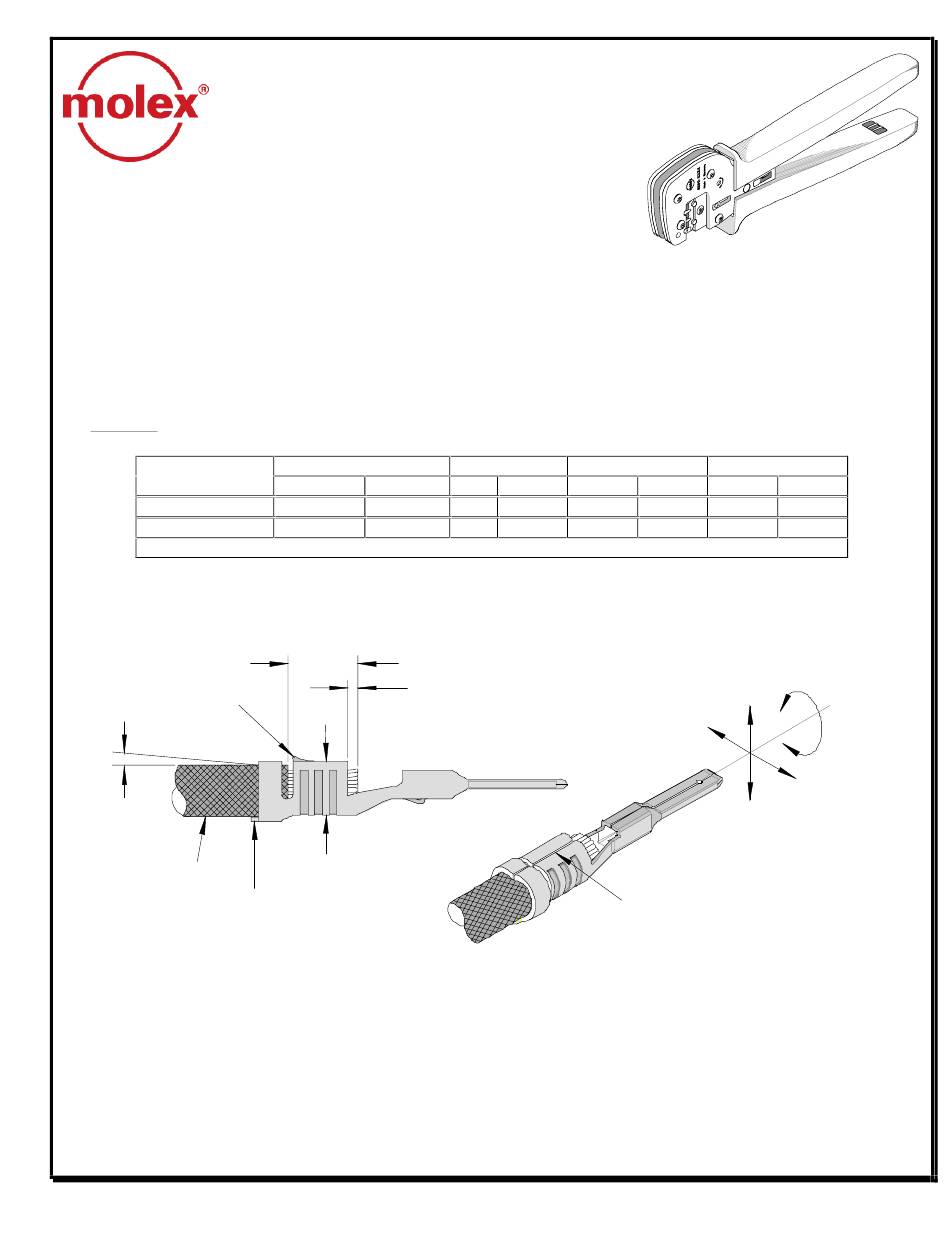

DEFINITION OF TERMS
BELL MOUTH
WIRE
ANGLE
WIRE
CUT-OFF
TAB
Doc No: ATS-638115300
Revision: B
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-5300
Æ
Terminal Order No.
Loose Piece
Reel
19431-0016 19431-0001 10-12 5.26-3.31 3.90-4.85 .153-.191 5.50-6.20 .217-.244
Æ
19434-0003 19434-0001 10-12 5.26-3.31 3.90-4.85 .153-.191 5.50-6.20 .217-.244
Customer to cut off terminal from reel: 0.50mm (.020") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 02-28-06
Revision Date: 10-15-07
Wire Size
Insulation Diameter
AWG
mm²
mm
SEAM
UNCONTROLLED COPY
TYPE 4C
Strip Length
In.
mm
In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for molex 63811-5300
Summary of Contents for molex 63811-5300
- Page 1 Hand Crimp Tool for MX150L Terminals HAND CRIMP TOOL SPECIFICATION SHEET Order No. 63811-5300 FEATURES TYPE 4C A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio SCOPE Products: MX150L...
- Page 2 12 3.31 2.05-2.15 .081-.085 3.70-3.90 .146-.154 4.50 Max .177 Max 5.00-5.20 .197-.205 311.5 70.0 OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects - damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
- Page 3 Hand Crimp Tool for MX150L Terminals 1. To raise the wire stop, press the tab on the wire stop as shown in Figure 1. Insert the proper terminal into the nest opening and release the wire stop to lower it. 2.
- Page 4 A crimp height chart is provided with this manual as Reference Only. 3. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 5 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638115300 Release Date: 02-28-06 Page 5 of 5 Revision: B Revision Date: 10-15-07...
