SIIG AV-GM07U3-S1-V2 Manual

8x8 hdmi deep color & full 3d over single cat.x matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

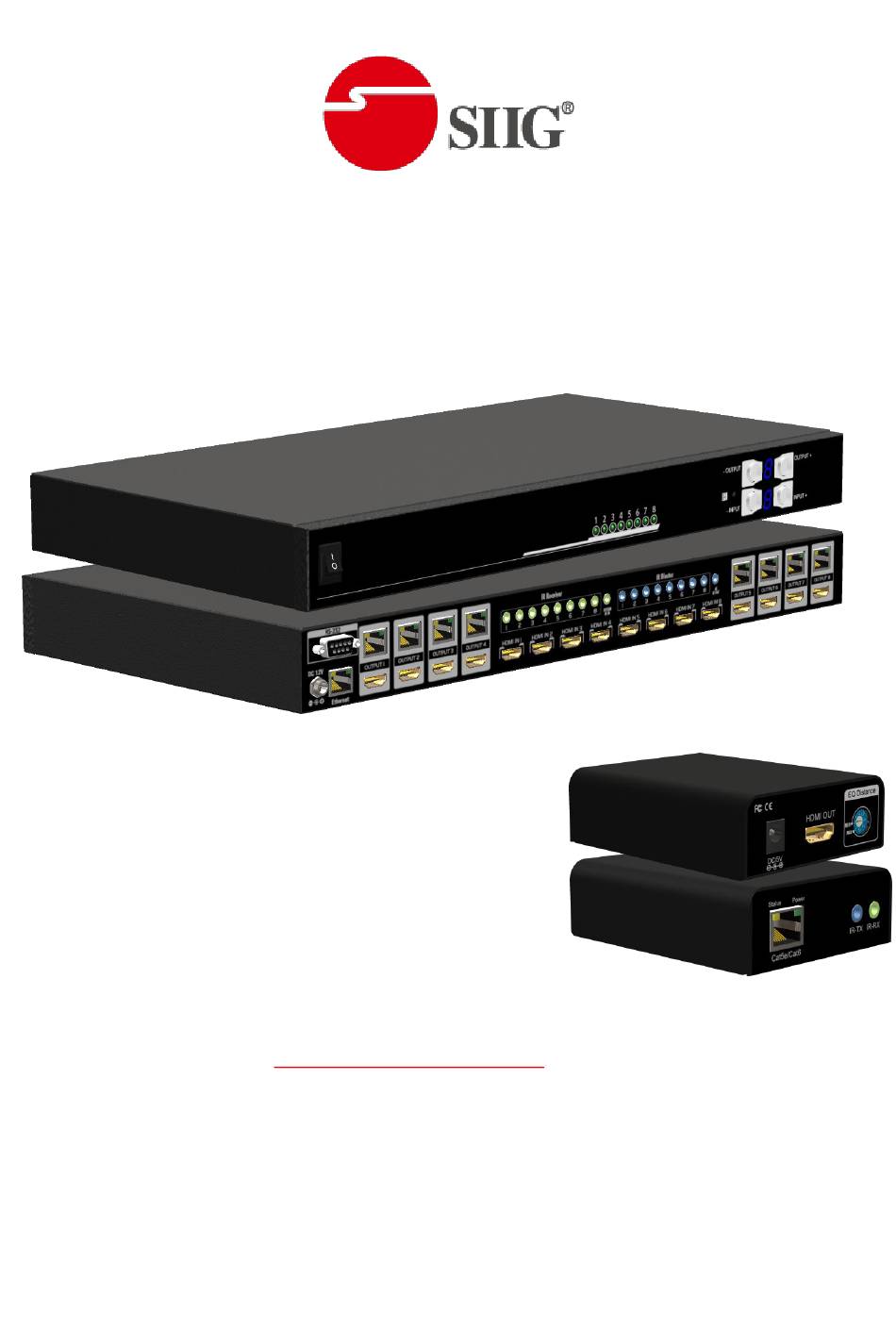

8x8 HDMI Deep Color & Full 3D over single Cat.X
Matrix
To avoid EMI issue, complete STP Cat6 cable is strongly recommended!
P/N: AV-GM07U3-S1-V2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM07U3-S1-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG AV-GM07U3-S1-V2

Summary of Contents for SIIG AV-GM07U3-S1-V2

  • Page 1 8x8 HDMI Deep Color & Full 3D over single Cat.X Matrix To avoid EMI issue, complete STP Cat6 cable is strongly recommended! P/N: AV-GM07U3-S1-V2...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM07U3-S1-V2 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    ● Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively ● Fast response time – 2~5 seconds for channel switch PACKAGE CONTENTS ● 1x AV-GM07U3-S1-V2 ● 1x User Manual ● 9x IR receiver ● 8x IR blaster* ●...

  • Page 4: Specifications

    * Additional IR remote controllers and IR blasters can be purchased as optional accessories to control the HDMI sources located separately. SPECIFICATIONS Model Name AV-GM07U3-S1-V2 Technical AV-GM07U3-S1-V2 CV-57KJ3-RX True 8x8 matrix switcher Role of usage Receiver [RX] Transmitter [TX] HDMI Deep Color & full 3D...

  • Page 5: Panel Descriptions

    Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Transmitting unit ► AV-GM07U3-S1-V2 Front Panel Power Switch: Power ON/OFF Switch Source Status: Input source indicator LED IR SENSOR: IR sensor for receiving the IR commands from IR remote Output Push Button &...

  • Page 6: Receiving Unit

    4. Connect IR blaster to the AV-GM07U3-S1-V2 and direct the IR blaster to point towards the built-in IR receiver of the HDMI source devices. 5. Connect the +12V 5A DC power supply to the AV-GM07U3-S1-V2 and +5V 2A DC power supply to the receivers...
  • Page 7 6. Power on all HDMI sources and displays. 8. Dial the 8-level rotary control switch to adjust the HDMI signal level until the picture and sound are clear. It is recommended to dial from weakest to strongest to find the optimal visual experience...

  • Page 8: Ir Pass-Through

    IR BLASTER: IR control on individual display device IR RECEIVER: IR receiver connected here can receive all IR command signals from the IR remote controls of AV-GM07U3-S1-V2 and all other HDMI source devices. CAUTION! Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders.

  • Page 9: Connection Diagram

    You can buy any IR extension cables in the market that are compatible to the definition of the IR sockets for the matrix if necessary for replacement use. However, IR cables longer than 2m (6-ft) may not work. CONNECTION DIAGRAM...

  • Page 10: Operation Approach

    OPERATION APPROACH Method A: Push-in Button preset save learn default 1. IN/OUT MAP 1) Use the “+”or “-“ output push button to select the number of display 2) Use the “+”or “-“ input push button to select the number of input source “+”: change selected input/output port in ascending order “-”...
  • Page 11 4) If you push the “output+ (save)”button before the mapping setting is effective, the LED will show “ 一 ”“ 一 ”to quit the Preset Mapping Mode 4. Default EDID Mode 1) Push “input+(default)”button to select the input channel which you want to learn default EDID and then keep pushing “input+(default)”button when you select your desired input channel 2) Push the “+”or “-”...
  • Page 12 Method B: IR Remote Control 1. IN/OUT Switch Operation Procedure 7-Segment LED IN/OUT Switch Output Number (1~8) + Input Number (1~8) 1. Press output number key “3” to select Output 3 Ex: Input 2 To Output 3 2. Press input number key “2” to select Input 2 2.
  • Page 13 TAKE Trigger the previous setting Reserved Reserved Operation Procedure 7-Segment LED Output Status Status + Output Number (1-8) + Take 1.Press “STATUS” button Ex: Output 4 2.Press output number key “4” to select Output 4 (Input 2) 3.Press “TAKE” button Save Current Mapping Save + Output Number (1-8 storage site) + Take 1.Press “SAVE”...
  • Page 15 Method C: Software Control through RS-232 port / Ethernet port System Requirement 1) OS Information: Windows 2) Baud rates: 9600 3) Software size: 3 MB 4) Minimum RAM requirement: 256 MB I/O Routing Button Rename I/O Button EDID Button Network Button F/W Update &...
  • Page 16 2. Input Selection and Mapping I/O:  Select the input Click “Send” to change the I/O setting Save Mapping:  Select Mapping 1-8 Click “Save” button to save current mapping Preset Mapping:  Select Mapping 1-8 Click “Recall” button to recall previous mapping which are saved...
  • Page 17 3. Rename I/O Button Rename I/O:  Rename output name Rename input name Rename Mapping:  Rename Mapping name...
  • Page 18 4. EDID Button Learn EDID from Default  Select Default EDID (1-8 Default EDID) 1. Full-HD(1080p@60)-24bit 2D & 2ch 2. Full-HD(1080p@60)-24bit 2D & 7.1ch 3. Full-HD(1080p@60)-24bit 3D & 2ch 4. Full-HD(1080p@60)-24bit 3D & 7.1ch 5. HD(1080i@60)(720p@60)-24bit 2D & 2ch 6. HD(1080i@60)(720p@60)-24bit 2D & 7.1ch 7.
  • Page 19 Load EDID File to Input  Select input Click “Load” button to select the EDID file View EDID  Select input or HDMI output Click “View” button to read the EDID and analysis Create EDID  Click “Create” button to create EDID file Select the EDID content Click “Save EDID on Computer”...
  • Page 20 IP address, please click “Save Setting” to save IP address information...
  • Page 21 Save Setting  Save the IP address which is manually entered Read Setting  Read the IP address from the device 6. System Button Version  Get the firmware version information Factory Reset  To do factory default reset Help ...
  • Page 22 Method D: Web interface Control The default IP address: 192.168.1.111 Account: admin Password: matrix I/O Routing Button Setting Button EDID Button Refresh I/O Status & Read I/O Name Button 1. I/O Routing Button I/O:  Select the input...
  • Page 24 Save Mapping:  Select Mapping (1-8) Click “Save” button to save current mapping Recall Mapping:  Select Mapping (1-8) Click “Recall” button to recall previous mapping which are saved 2. Setting Button Rename I/O:  Rename output name...
  • Page 25 Rename input name...
  • Page 26 Rename Mapping:  Rename Mapping name Password changing: (the password has to be 6 characters)  Key in “old password” Key in “new password” Key in “new password” again 3. EDID Button Learn EDID from Default  Select Default EDID (1-8 Default EDID) 1.
  • Page 27 Select Input Click “Send” button to learn default EDID Learn EDID From Display  Select output Select Input Click “Send” button to learn display EDID 4. Refresh I/O Status & Read I/O Name Button...

  • Page 28: Edid Learning

    EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 29: Warranty

    Also, the technical information contained herein regarding the AV-GM07U3-S1-V2 features and specifications is subject to change without further notice.
