SIIG AV-GM07M3-S1 User Manual

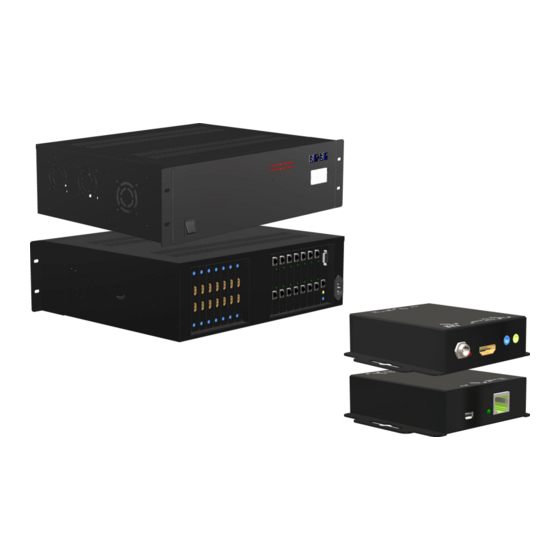

16x16 hdmi matrix over single cat.x with hdbaset-lite
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
16x16 HDMI Matrix over Single Cat.X with
HDBaseT-Lite
P/N: AV-GM07M3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM07M3-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG AV-GM07M3-S1

Summary of Contents for SIIG AV-GM07M3-S1

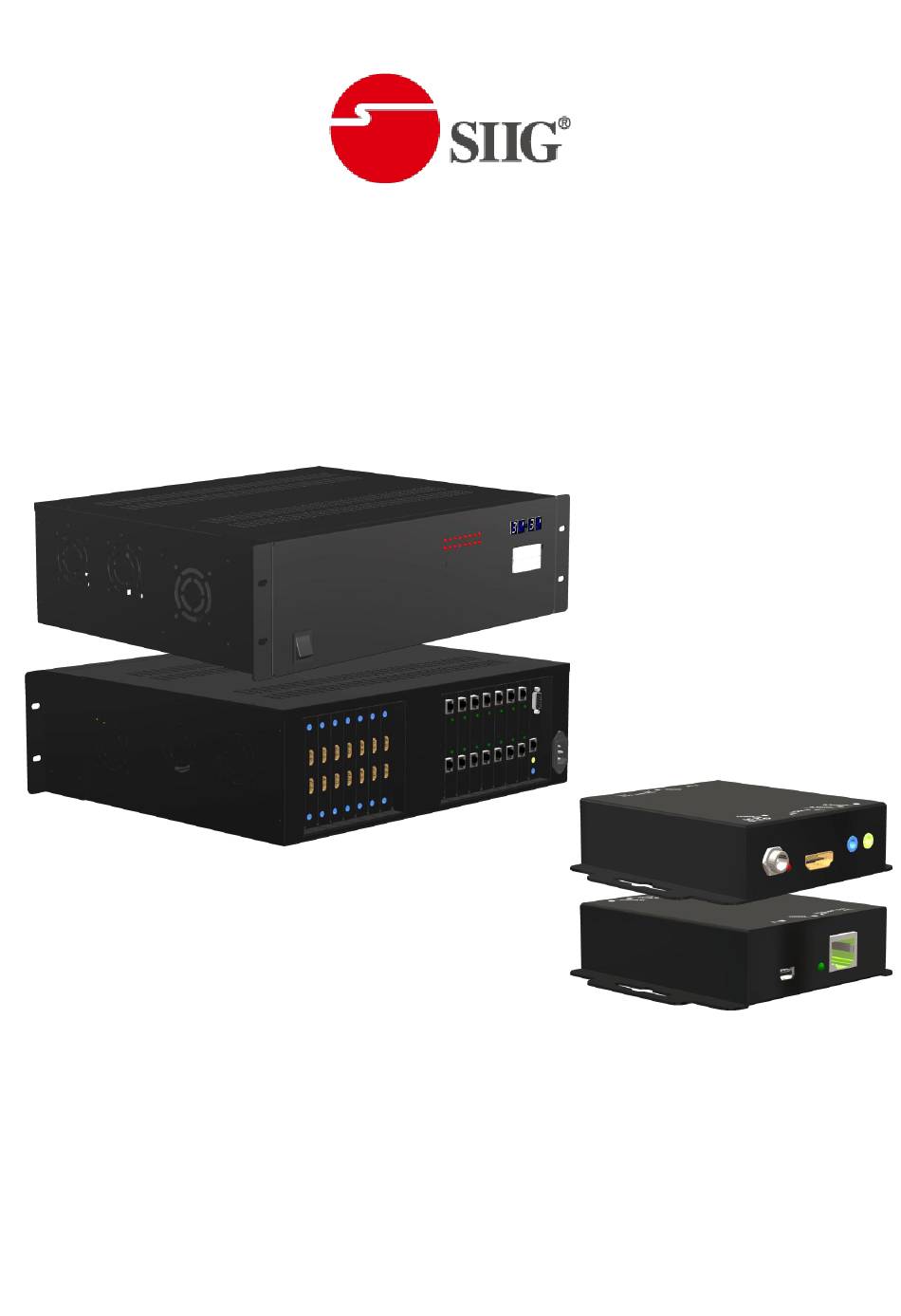

  • Page 1 16x16 HDMI Matrix over Single Cat.X with HDBaseT-Lite P/N: AV-GM07M3-S1...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM07M3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    RS-232 and IP control ● Easy installation with rack-mounting ● Fast response time – 2~4 seconds for channel switch PACKAGE CONTENTS ● 1x AV-GM07M3-S1 ● 1x UL AC C13 power cord ● 1x IR receiver ● 1x IR blaster* ● 1x Rack-mounting ear set ●...

  • Page 4: Specifications

    * Additional IR remote controllers and IR blasters can be purchased as optional accessories to control the HDMI sources located separately. SPECIFICATIONS Model Name AV-GM07M3-S1 Technical AV-GM07M3-S1 AV-GM07M3-S1-RX True 16x16 matrix switcher Role of usage Receiver [RX] Transmitter [TX] HDMI compliance HDMI Deep Color &...

  • Page 5: Panel Descriptions

    Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Transmitting unit ► AV-GM07M3-S1 Front Panel Power Switch Source Status: Input source indicator LED Output 7-segment LED: LED display for output ports IR SENSOR: IR sensor for receiving the IR commands from IR remote...

  • Page 6: Receiving Unit ► Ma-5216V-Rx

    IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver Mini-USB: F/W update LED: Link indicator RJ45 (HDBaseT): Plug in a Cat-5/5e/6 cable that needs to be linked to the AV-GM07M3-S1...

  • Page 7: Ir Pass-Through

    IR BLASTER: IR control on individual display device IR RECEIVER: IR receiver connected here can receive all IR command signals from the IR remote controls of AV-GM07M3-S1 and all other HDMI source devices. CAUTION! Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders.

  • Page 8: Hardware Installation

    2. Connect each CAT.X output port on the AV-GM07M3-S1 to respective CAT.X input on the remote receiver MA-5288RX. 3. Connect IR blaster to the AV-GM07M3-S1 and direct the IR blaster to point towards the built-in IR receiver of the HDMI source devices.

  • Page 9: Connection Diagram

    CONNECTION DIAGRAM...

  • Page 10: Operation Approach

    OPERATION APPROACH Method A: Push-in Button preset save learn default 1. IN/OUT MAP 1) Use the “+”or “-“ output push button to select the number of display 2) Use the “+”or “-“ input push button to select the number of input source “+”: change selected input/output port in ascending order “-”...
  • Page 11 4) If you push the “output+ (save)”button before the mapping setting is effective, the LED will show “ 一 ”“ 一 ”to quit the Preset Mapping Mode 4. Default EDID Mode 1) Push “input+(default)”button to select the input channel which you want to learn default EDID and then keep pushing “input+(default)”button when you select your desired input channel 2) Push the “+”or “-”...
  • Page 12 Method B: IR Remote Control Button Function Power on the matrix switcher Standby mode PRESET Preset mapping mode SAVE Save current mapping mode Number buttons 1-9 Select a number Reserved Transfer key TAKE Trigger the previous setting Mute Turn off/Mute the selected Output SWITCH Begin input and output selection DEFAULT EDID...
  • Page 13 Operation Procedure 7-Segment LED Switch + number(input) + To + number(output) + IN/OUT Switch Take 1.Press “SWITCH” button 2.Press number key “3” to select Input Ex: Input 3 3.Press “To” button To Output 4 4.Press number key “4” to select Output 5.Press “TAKE”...
  • Page 14 5.Press “TAKE” button 0 (success) F(fail) Default EDID + number(output) + To + All(input) + Take 1.Press “DEFAULT EDID” button 2.Press number key “2” to select default EDID Ex: Default EDID 2 3.Press “To” button Input All 4.Press “ALL” to select All Input 5.Press “TAKE”...
  • Page 15 03;-- 2.Press number key “3” to select Output 3.Press “To” button 03;00 4.Press “MUTE” button 03;00 5.Press “TAKE” button Switch + All(output) + To + Mute + Take 1.Press “SWITCH” button --;-- All;-- 2.Press “ALL” to select all output All; Ex: Mute All Output 3.Press “To”...
  • Page 16 Connect/Disconnect Status Default Reset Button Connect Button In/Out Switch Button Power On/Off Button Mute Output Button 6. Step by step for connecting matrix and controller Step1: Use RS-232 cable to connect the RS-232 port on matrix and PC Step2: Open the software and then choose the correct com port Step3: Click connection button “...
  • Page 17 3) Disconnected Status: 12. Connect/Disconnect Button Click this button “ ” to change connection status 13. Power On/Off Button Click this button to power on/off “ ” Power on status(Blue): Click this button to power off device(Standby Mode) “ ” Power off status(Red): Click this button to power on device 14.
  • Page 18 1) Learn EDID from Default a) Select Default EDID(1-8 Default EDID) b) Select Input c) Click “Learn” button to learn default EDID 2) Load EDID File to Input a) Select Input b) Click “Load” button to select the EDID file 3) Create EDID File a) Click “Create”...
  • Page 19 c) Click “Save As” to save the read EDID as a file on computer 15. Firmware Update Button 1) Make sure RS-232 is connecting and the connecting status is “ ” 2) Click ”FIRMWARE UPDATE” Button and then will be a pop-up windows 3) F/W Update for Control Board Step1: Click “Load File”...
  • Page 20 Step2: Power OFF the AV-GM07J3-S1 Step3: Power ON the AV-GM07J3-S1 Step4: Click “Start” button and the firmware will start writing 4) F/W Update for Input and Output Card Step1: Click “Load File” to select the firmware file which you want to update Step2: Click “Start”...
  • Page 21 16. Network Button Step1: Make sure the connection status is on connected status “ ” Step2: Connect matrix to network through IP control port Step3: Click “NETWORK” Button and then will be a pop-up windows Step4: Click “Read From Device” to read the device IP address Step5: Select “Ethernet”...
  • Page 22 17. Mapping Button 1) Save Mapping: a) Select Mapping(1-8) b) Click “Save” button to save current mapping 2) Preset Mapping: a) Select Mapping(1-8) b) Click “Recall” button to recall previous mapping which are saved 3) Rename Mapping: a) Rename the mapping(Mapping1-Mapping8) b) Click “Confirm”...
  • Page 23 19. In/Out Switch Button Click the button on the checkerboard to select Input & Output port User can click the input number button to let all outputs select the same input Ex: All outputs select input 1...
  • Page 24 16. Mute Output Button Click the circle button to turn off output’s video and audio Ex: Mute Output 2...
  • Page 25 Method D: Web Interface Control 1. Set up PT-MA-HD1616-C IP address (Please refer to Network setting section) 2. Key in the IP address on the web page...

  • Page 26: Edid Learning

    EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 27: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM07M3-S1 features and specifications is subject to change without further notice.
