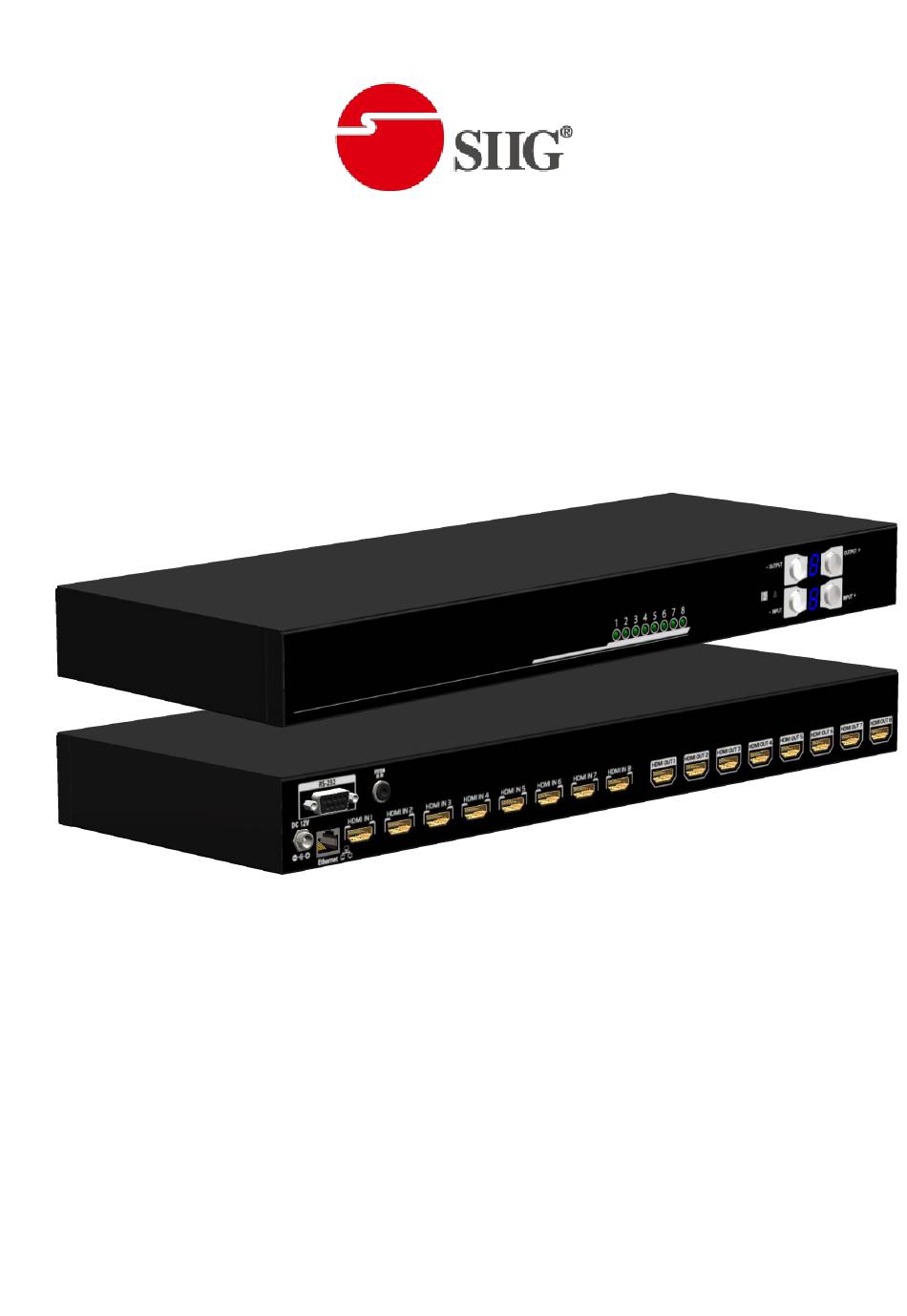

8x8 HDMI Matrix Switcher with Full 3D Support
P/N: AV-GM07X3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM07X3-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG AV-GM07X3-S1

Summary of Contents for SIIG AV-GM07X3-S1

  • Page 1 8x8 HDMI Matrix Switcher with Full 3D Support P/N: AV-GM07X3-S1...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM07X3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    ● Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively ● Fast response time – 2~5 seconds for channel switch PACKAGE CONTENTS ● 1x AV-GM07X3-S1 ● 1x IR Receiver ● 1x DC 12V 5A ● 1x IR Remote control* ●...

  • Page 4: Specifications

    * Additional IR remote controllers can be purchased as optional accessories to control the HDMI sources located separately. SPECIFICATIONS Model Name AV-GM07X3-S1 Technical Role of usage True 8x8 matrix HDMI compliance HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps]...

  • Page 5: Panel Descriptions

    Package 3062g [6.8 lbs] Fixedness 1RU rack-mount with ears Wall hanging holes Power supply 12V 5A DC Power consumption [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Front Panel Source Status: Input source indicator LED IR SENSOR: IR sensor for receiving the IR commands from IR remote Output Push Button &...
  • Page 6 +12V DC: 12V DC power jack Ethernet: Ethernet control port RS-232: RS-232 control port System IR Receiver: Ext. IR receiver INPUT 1-8: HDMI inputs OUTPUT 1-8: HDMI outputs...

  • Page 7: Ir Pass-Through

    IR Receiver IR Receiver Sockets AV-GM07X3-S1 System IR: Receives IR commands from remote control Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.

  • Page 8: Hardware Installation

    1. Connect all sources to HDMI Inputs on the 8x8 HDMI matrix master AV-GM07X3-S1. 2. Connect each output port on the AV-GM07X3-S1 to respective input 3. Connect IR blaster to the AV-GM07X3-S1 and direct the IR blaster to point towards the built-in IR receiver of the HDMI source devices.

  • Page 9: Operation Approach

    OPERATION APPROACH Method A: Push-in Button preset save learn default 1. IN/OUT MAP 1) Use the “+”or “-“ output push button to select the number of display 2) Use the “+”or “-“ input push button to select the number of input source “+”: change selected input/output port in ascending order “-”...
  • Page 10 2) Push the “+”or “-” output push button and then the LED will show “E”“d” one time to enter Learn Default EDID Mode 3) Use “+”or “-” output push button to select the default EDID mode(1~8) 4) Release “input+(default)”button after selecting the desired default EDID mode, and then the LED will blink twice and the setting will be effective 5) It will quit the Learn Default EDID Mode if you push the “input- (learn)”button before the setting is effective...
  • Page 11 Select all inputs or outputs CLEAR Clear the previous IR operation procedure STATUS Preset output status Reserved Reserved Reserved Reserved Operation Procedure 7-Segment LED Switch + number(input) + To + number(output) + IN/OUT Switch Take 1.Press “SWITCH” button 2.Press number key “3” to select Input Ex: Input 3 3.Press “To”...
  • Page 12 Default EDID + number(output) + To + All(input) + Take 1.Press “DEFAULT EDID” button 2.Press number key “2” to select default EDID Ex: Default EDID 2 3.Press “To” button Input All 4.Press “ALL” to select All Input 5.Press “TAKE” button 0 (success) F(fail) Learn + number(output) + To + number(input) +...
  • Page 13 Switch + Mute + To + All(output) + Take 1.Press “SWITCH” button 2. Press “MUTE” button Ex: Mute All Output 3.Press “To” button 4. Press “ALL” to select all output 5.Press “TAKE” button Method C: Software Control through RS-232 port FW/SW Version Button Firmware Update Button COM Port Selection...
  • Page 14 1. FW/SW Version Button Click “ ” button to show version information 2. COM Port Selection Click “ ” button to select COM Port 3. Connection Status 1) Connected Status: 2) Connecting Status: 3) Disconnected Status: 4. Connect/Disconnect Button Click this button “ ”...
  • Page 15 Click this button to power on/off “ ” Power on status(Blue): Click this button to power off device(Standby Mode) “ ” Power off status(Red): Click this button to power on device 6. EDID Button 1) Learn EDID from Default a) Select Default EDID(1-8 Default EDID) b) Select Input c) Click “Learn”...
  • Page 16 a) Select Input b) Click “Load” button to select the EDID file 3) Learn EDID From Display a) Select HDMI output b) Select Input c) Click “Learn” button to learn display EDID 4) Create EDID File a) Click “Create” button to create EDID file b) Select the EDID content c) Click “Save EDID on Computer”...
  • Page 17 c) Click “Save As” to save the read EDID as a file on computer 7. Firmware Update Button 1) Click “Load File” to select the firmware file which you want to update 2) Click “Break” button 3) Quickly remove and reconnect the power input connector 4) Click “Start”...
  • Page 18 1) Click “Read From Device” to read the device IP address 2) Select “Ethernet” and then will be a pop-up windows 3) Key in the device IP address to the pop-up windows 4) Close the pop-up windows 5) Click the connected button to connect 9.
  • Page 19 b) Click “Save” button to save current mapping 2) Preset Mapping: a) Select Mapping(1-8) b) Click “Recall” button to recall previous mapping which are saved 3) Rename Mapping: a) Rename the mapping(Mapping1-Mapping8) b) Click “Confirm” button to confirm the change 10.
  • Page 20 11. In/Out Switch Button Click the button on the checkerboard to select Input & Output port User can click the input number button to let all outputs select the same input Ex: All outputs select input 3 12. Mute Output Button Click the circle button to turn off output’s video and audio Ex: Mute Output 2...

  • Page 21: Edid Learning

    EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 22: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM07X3-S1 features and specifications is subject to change without further notice.
