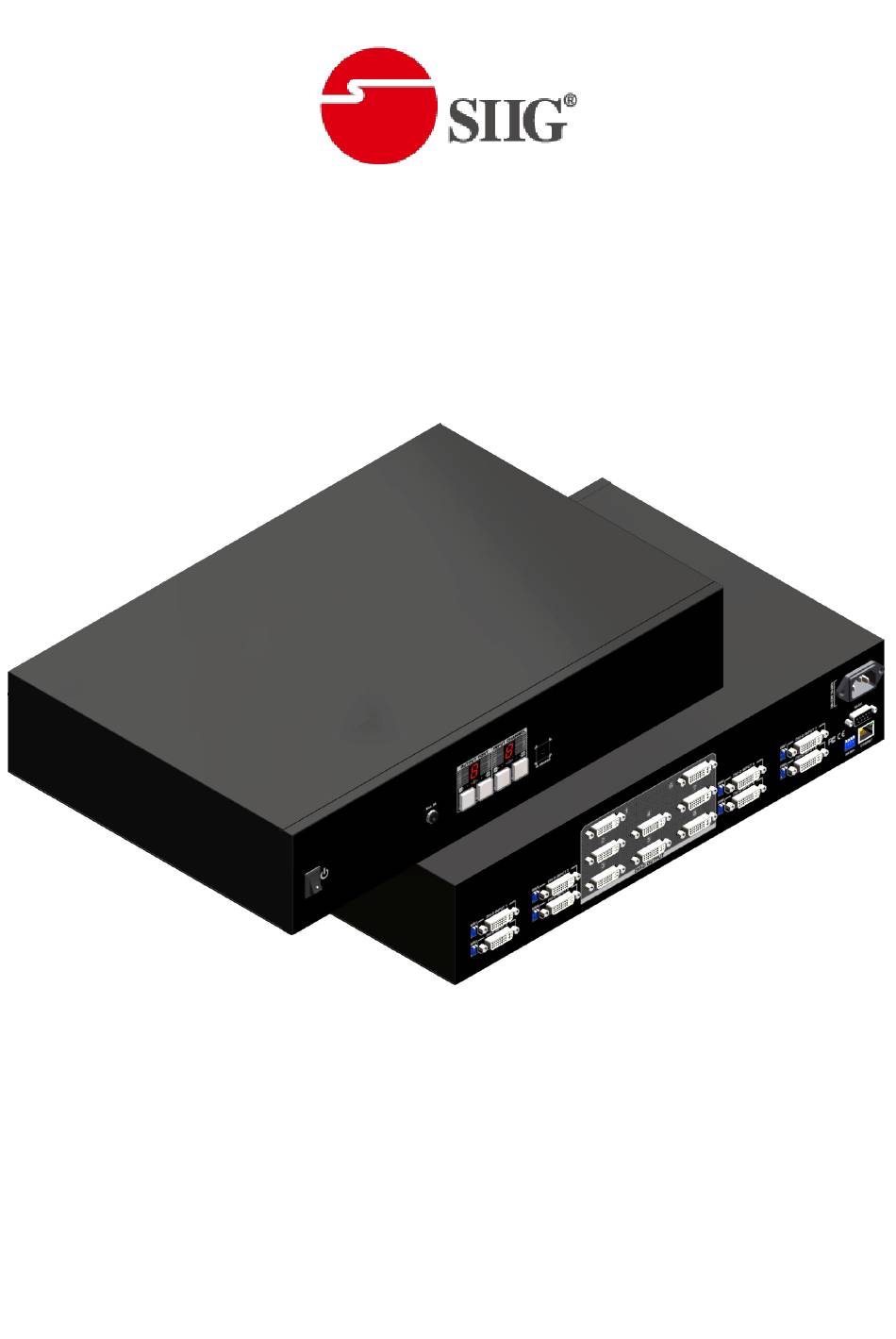

8x8 DVI Matrix Switcher with HDCP Support
P/N: AV-GM06X3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM06X3-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG AV-GM06X3-S1

Summary of Contents for SIIG AV-GM06X3-S1

  • Page 1 8x8 DVI Matrix Switcher with HDCP Support P/N: AV-GM06X3-S1...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM06X3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    ● Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively ● Fast response time – 2~5 seconds for channel switch PACKAGE CONTENTS ● 1x AV-GM06X3-S1 ● 1x IR receiver (20-60kHz) ● 1x UL AC C13 power cord ● 1x IR Remote control ●...

  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM06X3-S1 Technical Role of usage True 8x8 matrix DVI compliance DVI 1.0 / HDMI HDCP compliance Video bandwidth Single-link 165MHz [4.95Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 12-bit color Audio support Surround sound (up to 7.1ch) or stereo digital audio [1] Human body model —...

  • Page 5: Panel Descriptions

    USB or RS-232 control must be connected either one at a time. Connecting both types of cables may cause command confusion. PANEL DESCRIPTIONS Front Panel Power: Power control Ext. IR: IR receiver Seven Segment LED Indicators: Control display Push button: Front panel push buttons used to select the number of input source and display channel IR SENSOR: IR sensor for receiving the IR commands from the IR remote Rear Panel...
  • Page 6 DVI-D OUPUT 1–8: DVI outputs for each output channel AC Power: DC 12V RS-232: RS-232 control port (see DIP Switch section) SW Main: DIP switches ETHERNET...

  • Page 7: Connection Diagram

    CONNECTION DIAGRAM...

  • Page 8: Dip Switch

    DIP SWITCH SW1-SW8 for EDID/Audio DIP Switch Position Video Audio Description Pin#1 Pin#2 Default Mode 1 – EDID up to 1080p video & surround sound Up to 1080p Surround OFF [ ] OFF [ ] audio output up to 7.1ch (DTS-HD Master & Dolby TrueHD) Default Mode 2 –...
  • Page 9 [Firmware update only can be done via RS-232 port and connection to PC set at COM1) 1. Power off the AV-GM06X3-S1. Execute the firmware update program on your PC via COM1 port connection to the RS-232 port of the AV-GM06X3-S1.

  • Page 10: Hardware Installation

    2. Connect all outputs to DVI devices 3. Connect the +5V 6A DC power supply to the 8x8 DVI Matrix 4. Power on the 8x8 DVI Matrix AV-GM06X3-S1 Use CV-117+CV-17 for DVI over CAT5 transmission Long distance: 35m (115ft) under Full HD (1080p), or 55m (180ft) under HD (720p/1080i) 1.

  • Page 11: Channel Control

    CHANNEL CONTROL Method A: Push Button 1. Use the “＋” or “－” channel button on output port to select which port to be changed. “＋”: change selected output port in ascending order “－”: change selected output port in descending order 2.
  • Page 12 FUNCTION KEY SOURCE SEL. 1 Escape System LOCK Enter System LOCK (most buttons, IR control, and RS-232 control SOURCE SEL. 2 become inactive, except Escape System LOCK command ) Method C: Software Control through RS-232 or USB port HDMI Input Source Selection Mapping Area HDMI Output...
  • Page 13 Click Rename button to open the String Table. In the String Table, assign the captions for each input and output port for easy recognition. For example Rename the Input1 to “Blu-ray player”, Input2 to “Sat. receiver,” input3 to “Game console,” input4 to “AV receiver,”...
  • Page 14 Click Save String Table to save the caption setting (turn effective after program restart). Click Set Default to pop up the confirmation message below to erase the captions and reset the string table back to default setting (turn effective after program restart). 2.
  • Page 15 Click this button to close or open COM port. 5. Mapping button: Select All Output elect “set all output”, and then select the source on main menu. You can quickly set all output to the same source. Unselect All Output Release output selection.
  • Page 16 output port one by one, the selected output port will change to gray. The linking line will change to yellow. Group setting First select output ports one by one. Then select the input source. The selected output ports change the setting at the same time. By using Terminal: Baud rate: 9600...
  • Page 17 Output C selects Input 6 Output G selects Input 6 Output C selects Input 7 Output G selects Input 7 Output C selects Input 8 Output G selects Input 8 Output D selects Input 1 Output H selects Input 1 Output D selects Input 2 Output H selects Input 2 Output D selects Input 3...

  • Page 18: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM06X3-S1 features and specifications is subject to change without further notice.
