SIIG AV-GM07G3-S1 User Manual

8x8 hdmi matrix switcher with full 3d support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
8x8 HDMI Matrix Switcher
with Full 3D Support
P/N: AV-GM07G3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM07G3-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG AV-GM07G3-S1

Summary of Contents for SIIG AV-GM07G3-S1

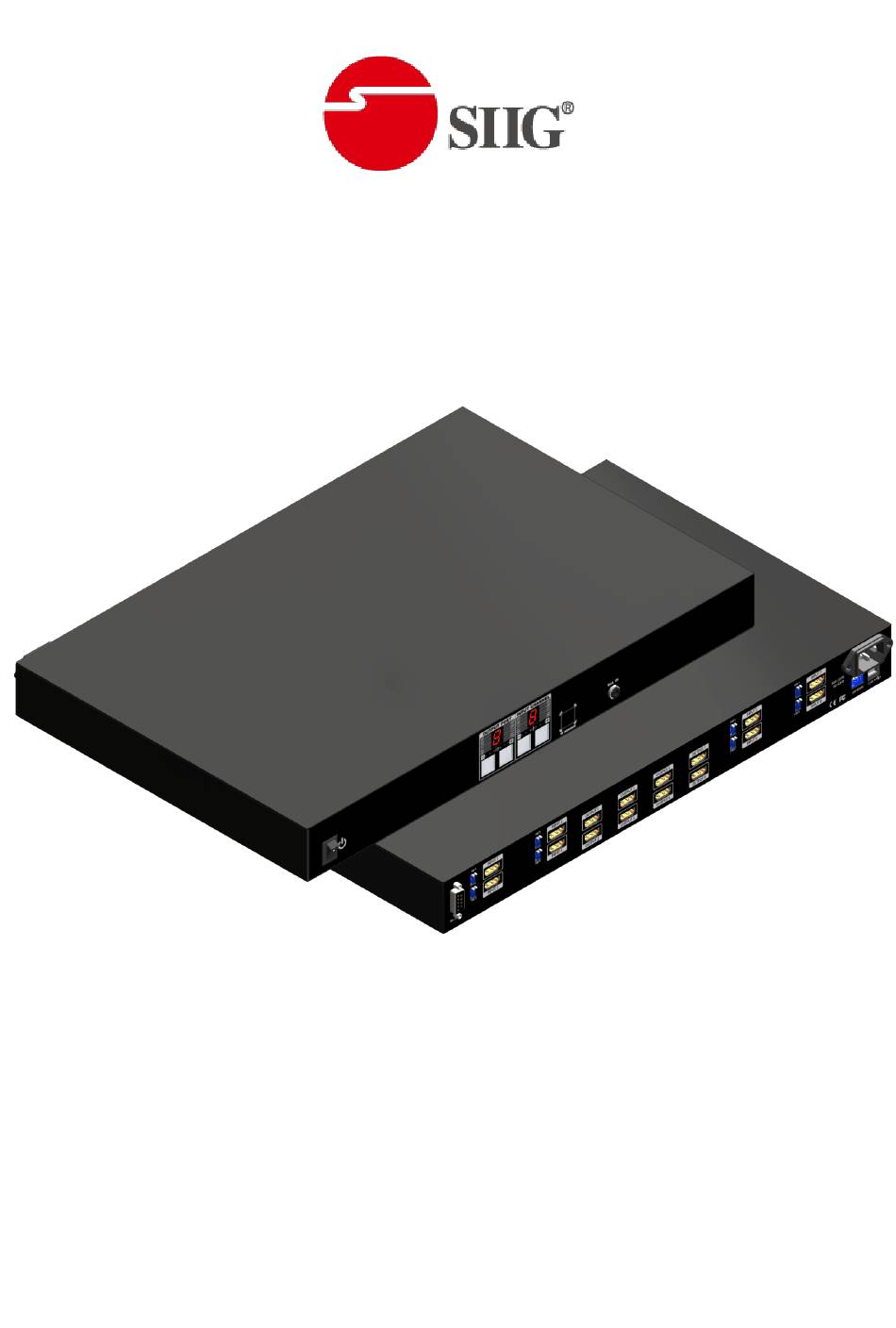

  • Page 1 8x8 HDMI Matrix Switcher with Full 3D Support P/N: AV-GM07G3-S1...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM07G3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    ● Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively ● Fast response time – 2~5 seconds for channel switch PACKAGE CONTENTS ● 1x AV-GM07G3-S1 ● 1x IR receiver ● 1x Rack-mounting ear set ● 1x UL AC C13 power cord...
  • Page 4 ● 1x IR remote control ● 1x Installation CD ● 1x User Manual...

  • Page 5: Specifications

    SPECIFICATIONS Model Name AV-GM07G3-S1 Technical Role of usage True 8x8 matrix HDMI compliance HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 12-bit color Audio support Surround sound (up to 7.1ch) or stereo digital audio...

  • Page 6: Panel Descriptions

    Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] * USB or RS-232 control must be connected either one at a time. Connecting both types of cables may cause command confusion. PANEL DESCRIPTIONS Front Panel Power: Power control Seven Segment LED Indicators: Control display Front panel push buttons: Used to input source and display channel number IR SENSOR: IR sensor for receiving the IR commands from the IR remote Ext.
  • Page 7 (for more detail please see DIP Switch section) SW 1-8: DIP switch INPUT 1-8: HDMI inputs OUPUT 1-8: HDMI outputs for each output channel AC Power: 100-240V (for more detail please see DIP Switch section) SW MAIN: DIP switches USB: For channel control via USB control portr...

  • Page 8: Dip Switch

    DIP SWITCH SW1-SW8 for EDID/Audio DIP Switch Position Video Audio Description Pin#1 Pin#2 Default Mode 1 – EDID up to 1080p video & surround sound Up to 1080p Surround OFF [ ] OFF [ ] audio output up to 7.1ch (DTS-HD Master & Dolby TrueHD) Default Mode 2 –...
  • Page 9 SW MAIN for firmware update (for technical support only) DIP Switch Position Pin#1 Pin#2 Pin#3 Pin#4 Normal Operation Mode [via RS-232 port] OFF [ ] OFF [ ] OFF [ ] OFF [ ] ON [ ] Normal Operation Mode [via USB port] OFF [ ] OFF [ ] OFF [ ]...

  • Page 10: Hardware Installation

    1. Connect all sources to HDMI Inputs on the 8x8 HDMI Matrix 2. Connect all outputs to HDMI devices 3. Connect the +5V 6A DC power supply to the 8x8 HDMI Matrix 4. Power on the 8x8 HDMI Matrix AV-GM07G3-S1. CONNECTION DIAGRAM...

  • Page 11: Operation And Ir Control

    OPERATION AND IR CONTROL Source Side Method A: Push Button 1. Use the “＋” or “－” channel button on output port to select which port to be changed. “＋”: change selected output port in ascending order “－”: change selected output port in descending order 2.
  • Page 12 OUTPUT 7 HDMI output port #7 OUTPUT 8 HDMI output port #8 Channel Control Method C: Software Control through RS-232 port HDMI Input Source Selection Mapping Area HDMI Output Port Selection Mapping Area Status Indicator Software Control Menu 1. Setting button: Click Get button to read back device ID.
  • Page 13 Click Set button to write device ID. Click Rename button to open the String Table. In the String Table, assign the captions for each input and output port for easy recognition. For example Rename the Input1 to “Blu-ray player”, Input2 to “Sat. receiver,” input3 to “Game console,” input4 to “AV receiver,”...
  • Page 14 Click Save String Table to save the caption setting (turn effective after program restart). Click Set Default to pop up the confirmation message below to erase the captions and reset the string table back to default setting (turn effective after program restart). 2.
  • Page 15 Click this button to close or open COM port. 5. Mapping button: Select All Output elect “set all output”, and then select the source on main menu. You can quickly set all output to the same source. Unselect All Output Release output selection.
  • Page 16 output port one by one, the selected output port will change to gray. The linking line will change to yellow. Group setting First select output ports one by one. Then select the input source. The selected output ports change the setting at the same time. By using Terminal: Baud rate: 9600...

  • Page 17: Edid Learning

    Output C selects Input 6 Output G selects Input 6 Output C selects Input 7 Output G selects Input 7 Output C selects Input 8 Output G selects Input 8 Output D selects Input 1 Output H selects Input 1 Output D selects Input 2 Output H selects Input 2 Output D selects Input 3...
  • Page 18 Method 1: Manually connect HDMI displays to HDMI input ports 1. Power up the matrix master unit. Connect the HDMI display that its EDID needs to be learned to any of the HDMI INPUT1 – INPUT8 port where your source device has trouble to show the picture normally.
  • Page 19 Method 2: Use the front panel of the master unit Button Function EDID will be read from display via the connected receiver unit from the Output Port respective output port The EDID will be sent to the input source connected to respective HDMI input Input Channel port One by One learning...

  • Page 20: Faq

    Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.

  • Page 21: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM07G3-S1 features and specifications is subject to change without further notice.
