Summary of Contents for SIIG AV-GM0703-S1

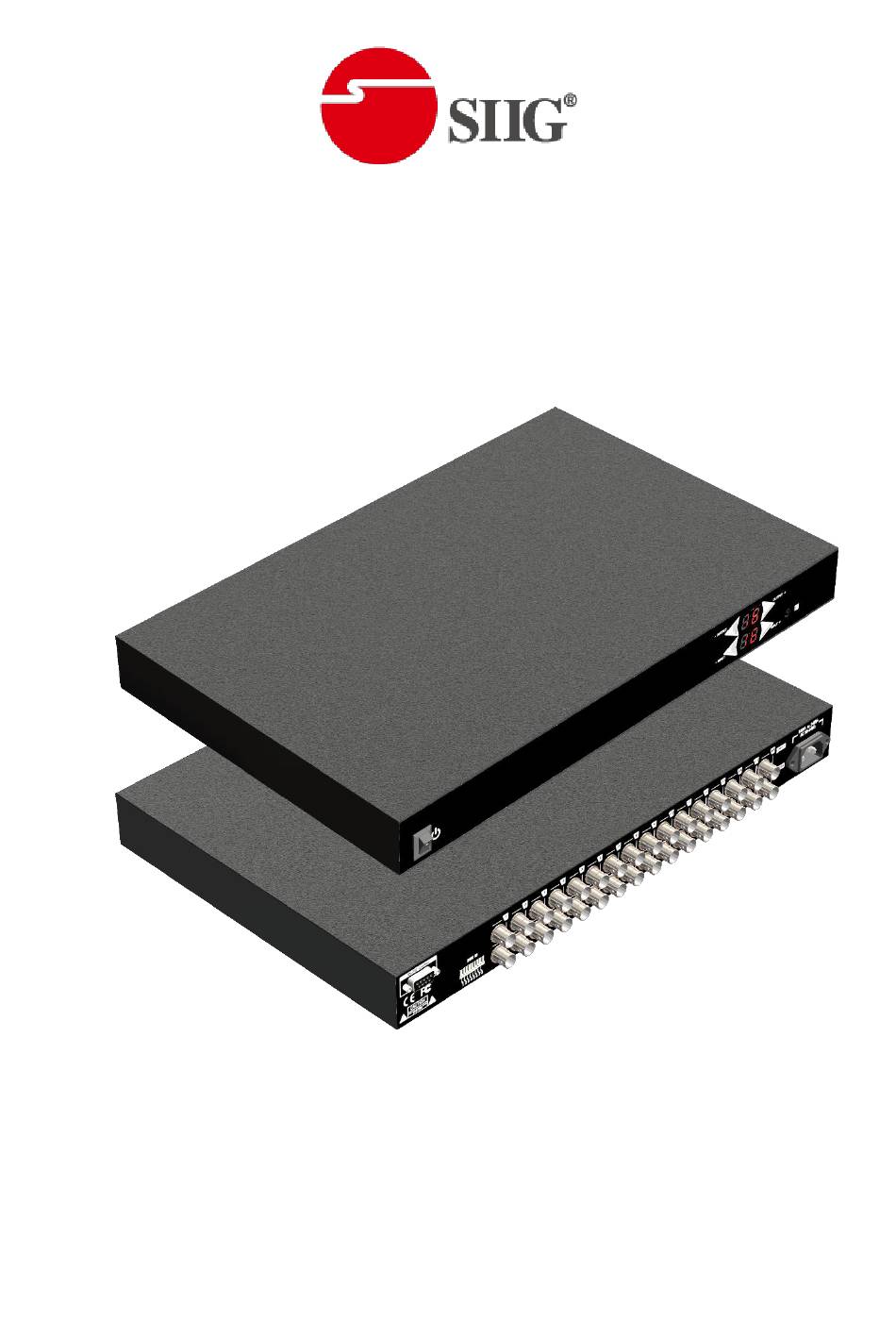

  • Page 1 16x16 3G/HD/SD-SDI Matrix P/N: AV-GM0703-S1...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM0703-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    IR remote controller or RS-232 control ● Easy installation with rack-mounting and wall-mounting designs for master and receiver respectiv PACKAGE CONTENTS ● 1x AV-GM0703-S1 ● 1x UL AC C13 power cord ● 1x BNC Terminator Plug ● 1x IR Remote control ●...
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM0703-S1 Technical Role of usage True 16x16 matrix Video bandwidth 2.97 & 2.97/1.001Gbps [3G] 1080p@50/59.94/60 (4:2:2) [HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, Video support 1080i50/59.94/60 [SD] NTSC@59.94Hz, PAL@50Hz Audio support [3G] up to 100m(300ft) / [HD-SDI] up to 150m (500ft) / [SD-SDI] up...
  • Page 5: Panel Descriptions

    PANEL DESCRIPTIONS Front Panel 1. Power Switch: Power ON/OFF switch 2. Output Push Buttons & 7-segment LED Indicators: Front panel push buttons used to select the number of display channel & LED display for output ports 3. Input Push Buttons & 7-segment LED Indicators: Front panel push buttons used to select the number of input source &...
  • Page 6: Connection Diagram

    HARDWARE INSTALLATION AV-GM0703-S1 1. Connect all sources to SDI Inputs on the 16x16 SDI matrix 2. Connect all outputs to SDI Receiver 3. Connect the AC power supply to the 16x16 SDI matrix 4. Power on the 16x16 SDI matrix AV-GM0703-S1...
  • Page 7: Operation Approach

    OPERATION APPROACH Method A: Push-in Button IN/OUT Mapping  (1) Use the “+” or “-” output push button to select the number of display (2) Use the “+” or “-” input push button to select the number of input source “+”: change selected input/output port in ascending order “-”: change selected input/output port in descending order After few seconds, the setting will be active.
  • Page 8 Method C: Software Control through RS-232 port System Requirements and Precautions 1. Whenever power off AV-GM0703-S1, please stay unpowered at least 5 to 10 seconds to allow power capacitors to discharge. 2. The AV-GM0703-S1 provides software control program under Microsoft Windows XP, 7, 8 through the interface of RS-232 control port 3.
  • Page 9 3. Connection Status Show the connect status (Connected or Disconnected). 4. In/Out switch panel For each output, you can assign arbitrary video source or mute output video here. 5. Firmware Update The “Firmware update” window shows up as below. Before firmware update process, please ensure your RS-232 cable is connecting and the status is “CONNECTED”.
  • Page 10 7. Default Reset To do factory default reset. This default reset process will take about 10 seconds. Method D: Terminal control: Baud rate: 9600 Data length: 8bit Parity check: No Stop bit: 1 Command Set: COMMAND ACTION ST + 0x0d Show all mapping PON + 0x0d Power on the device...
  • Page 11: Limited Warranty

    Also, the technical information contained herein regarding the AV-GM0703-S1 v1.2/v1.3 features and specifications is subject to change without further notice.
