SIIG AV-GM07A3-S1 Manual

4x4 hdmi matrix switcher with full 3d support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

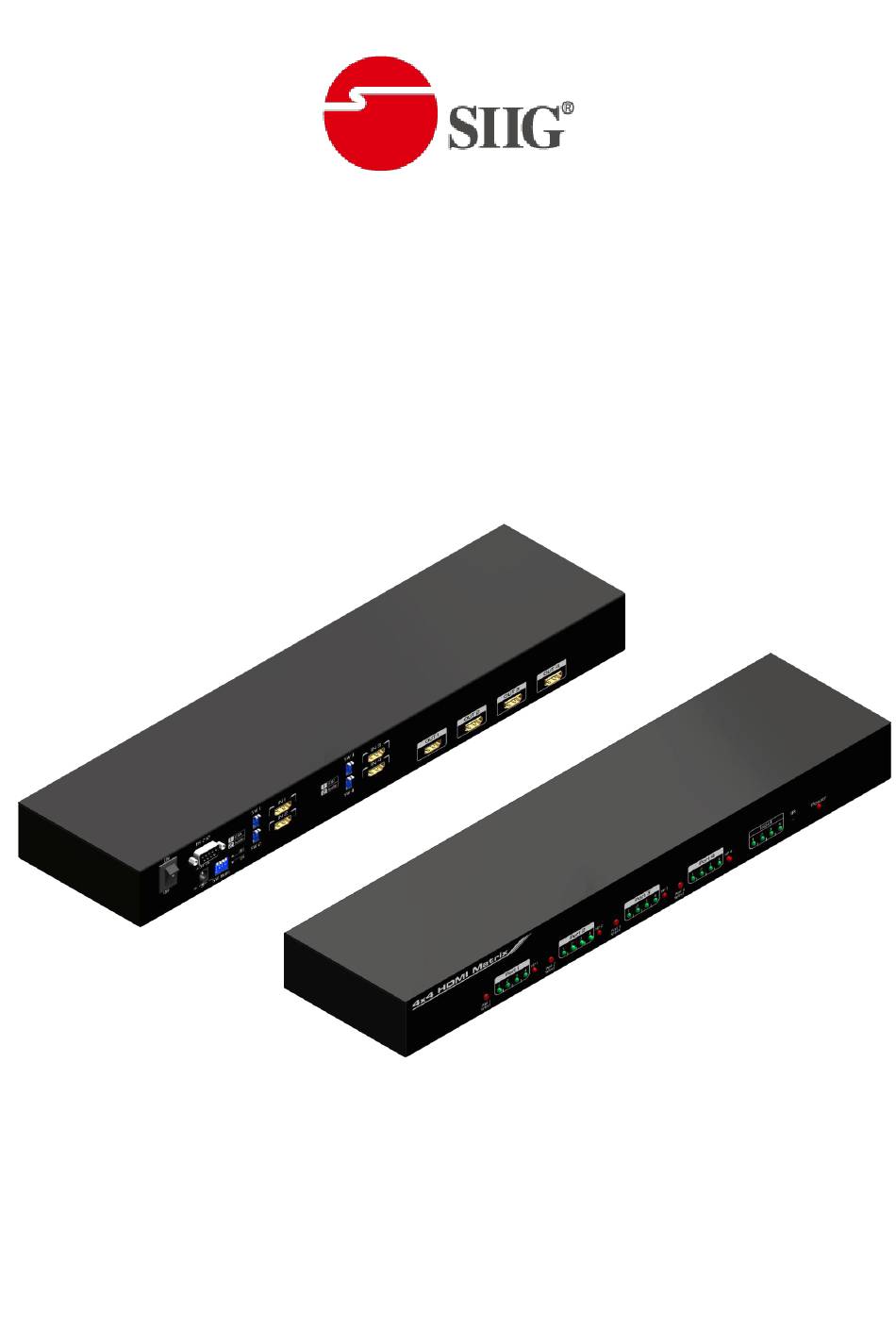

4x4 HDMI Matrix Switcher
with Full 3D Support
P/N: AV-GM07A3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM07A3-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG AV-GM07A3-S1

Summary of Contents for SIIG AV-GM07A3-S1

  • Page 1 4x4 HDMI Matrix Switcher with Full 3D Support P/N: AV-GM07A3-S1...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM07A3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    ● The matrix master can switch every output channels to any HDMI inputs by push button, IR remote control, or RS-232 control PACKAGE CONTENTS ● 1x AV-GM07A3-S1 ● 1x DC 5V 6A in-line with C5 power cord ● 1x Rack-mounting ear set ●...

  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM07A3-S1 Technical Role of usage True 4x4 matrix HDMI compliance Support HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 12-bit color Audio support Surround sound (up to 7.1ch) or stereo digital audio...

  • Page 5: Panel Descriptions

    Operation 0~40°C [32~104°F] temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Front Panel Port 1-4 Select: Push button for selecting input channels Port 1-4: Input source channels mapping LED for each output channel HP 1-4: Connection status indicator for each output channel Input: Input source indicator IR: IR receiver Power: Power indicator...
  • Page 6 +5V DC: 5V DC power jack (for more detail please see DIP Switch section) SW Main: DIP switches (for more detail please see DIP Switch section) SW 1-4: DIP switch IN 1-4: HDMI inputs OUT 1-4: HDMI outputs...

  • Page 7: Dip Switch

    DIP SWITCH SW1-SW4 for EDID/Audio DIP Switch Position Video Audio Description Pin#1 Pin#2 Default Mode 1 – EDID up to 1080p video & surround sound Up to 1080p Surround OFF [ ] OFF [ ] audio output up to 7.1ch (DTS-HD Master & Dolby TrueHD) Default Mode 2 –...
  • Page 8 SW MAIN for firmware update (for technical support only) DIP Switch Position Pin#1 Pin#2 Pin#3 Pin#4 ON [ ] Normal Operation Mode OFF [ ] OFF [ ] OFF [ ] ON [ ] ON [ ] Firmware Update Mode OFF [ ] OFF [ ] Note...

  • Page 9: Hardware Installation

    HARDWARE INSTALLATION AV-GM07A3-S1 1. Connect all sources to HDMI Inputs on the 4x4 HDMI Matrix 2. Connect all outputs to HDMI devices 3. Connect the +5V 6A DC power supply to the 4x4 HDMI Matrix 4. Power on the 4x4 HDMI Matrix MX-5144KH...

  • Page 10: Operation And Ir Control

    OPERATION AND IR CONTROL Source Side Method A: Push-in Button Push the red switch button on output port to select which port to be changed. Method B: IR Remote Control Choose the output port you want to make channel switch from OUT1 to OUT4 then press 1-4 channel button to choose the HDMI input source shown on the chosen output display.
  • Page 11 Channel Control Method C: Software Control through RS-232 port HDMI Input Source Selection Mapping Area HDMI Output Port Selection Mapping Area Status Indicator Software Control Menu 1. Setting button: Click Get button to read back device ID. Click Set button to write device ID. Click Rename button to open the String Table.
  • Page 12 etc.
  • Page 13 Click Save String Table to save the caption setting (turn effective after program restart). Click Set Default to pop up the confirmation message below to erase the captions and reset the string table back to default setting (turn effective after program restart). 2.
  • Page 14 5. Mapping button: Select All Output elect “set all output”, and then select the source on main menu. You can quickly set all output to the same source. Unselect All Output Release output selection. Select Input1~4-Output Select Input Source. Then select the output port icon. For example Select input source 1.
  • Page 15 Click Fast select button. Quick setting. Input one > Output Port one Input two > Output Port two ….. Click Fast select pull down menu. Select Input Num-Output Num Input source #1 > Output port #1 Input source #2 > Output port #2 …..
  • Page 16 Pull down menu and select which source to be sent to this output port. One by one setting On main menu screen First select input source. Then select the output ports which you want to send the video and audio from this source. When you select the input source, the source will change to gray.

  • Page 17: Edid Learning

    Output C selects Input 1 Output G selects Input 1 Output C selects Input 2 Output G selects Input 2 Output C selects Input 3 Output G selects Input 3 Output C selects Input 4 Output G selects Input 4 Output C selects Input 5 Output G selects Input 5 Output C selects Input 6...
  • Page 18 Method: Manually connect HDMI displays to HDMI input ports 1. Power up the matrix master unit. Connect the HDMI display that its EDID needs to be learned to any of the HDMI INPUT1 - INPUT4 port where your source device has trouble to show the picture normally.

  • Page 19: Ir Discrete Code

    IR DISCRETE CODE Default Custom Code IR2 Code: 00 FF Function POWER 0x17 0x02 0x0A 0x0C SOURCE SEL. 1 SOURCE SEL. 2 SOURCE SEL. 3 SOURCE SEL. 4 0x54 0x55 0x56 0x01 0x57 0x58 0x59 0x06 Output Port 1 Input 1 - 0x18 Input 2 - 0x5B Input 3 - 0x19 Input 4 - 0x07...
  • Page 20 Custom Code - IR4 Code: 0x13 0x31 Custom Code: 0x13 0x31 Output 1 Output 2 Output 3 Output 4 Source 1 0xAE 0xBE 0xCE 0xDE Source 2 0xAD 0xBD 0xCD 0xDD Source 3 0xAC 0xBC 0xCC 0xDC Source 4 0xAB 0xBB 0xCB 0xDB...

  • Page 21: Faq

    Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.
  • Page 22 to play, which can be either 1080p and 7.1ch or 1080p and stereo audio. It means when the user sets the matrix at 1080p and 7.1ch, the source will only play the content under this format. Therefore if the TV cannot decode 7.1ch audio, there is definitely no audio.

  • Page 23: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM07A3-S1 features and specifications is subject to change without further notice.
