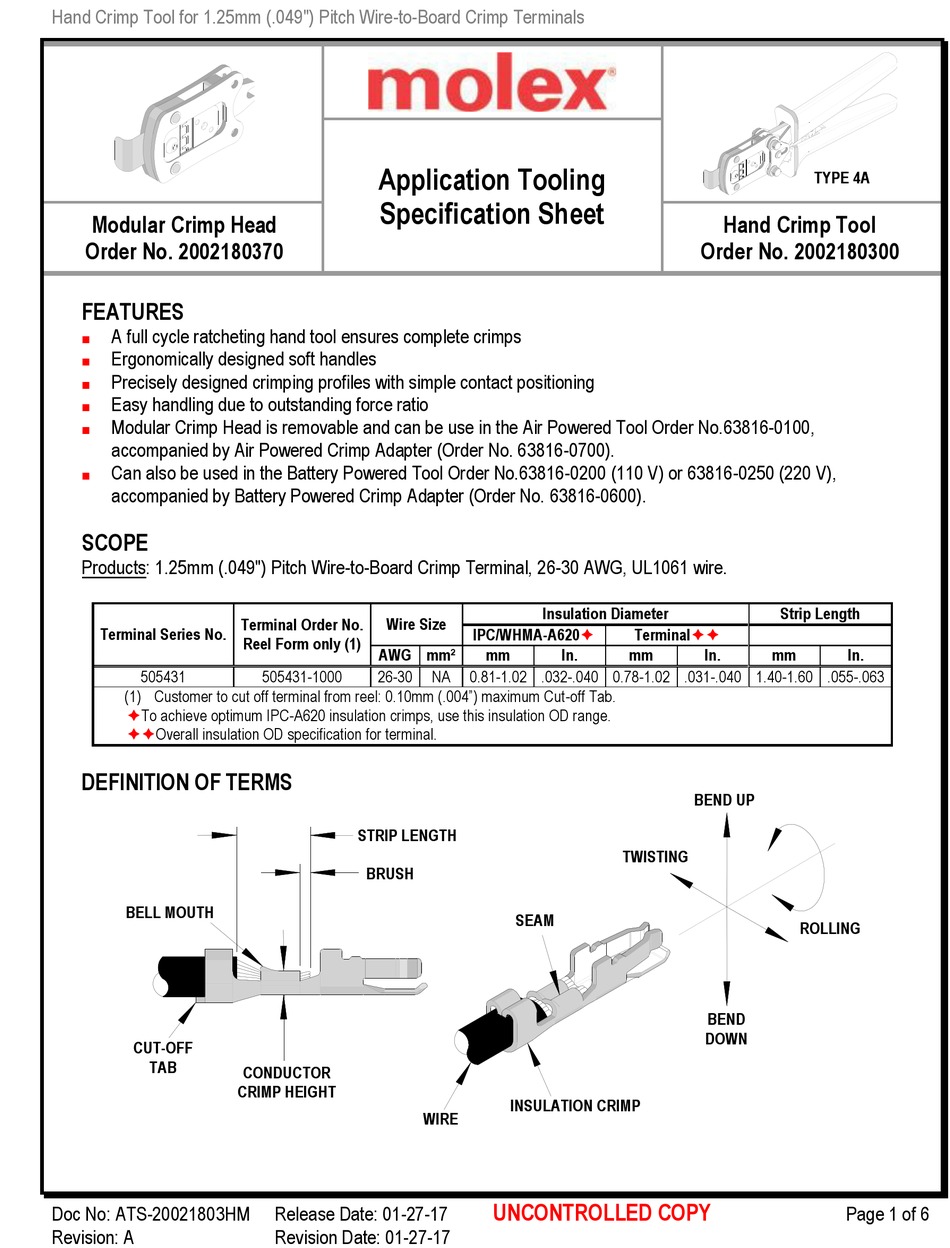

Hand Crimp Tool for 1.25mm (.049") Pitch Wire-to-Board Crimp Terminals
Modular Crimp Head
Order No. 2002180370
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 1.25mm (.049") Pitch Wire-to-Board Crimp Terminal, 26-30 AWG, UL1061 wire.
Terminal Series No.
505431
(1) Customer to cut off terminal from reel: 0.10mm (.004") maximum Cut-off Tab.
To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
Overall insulation OD specification for terminal.
DEFINITION OF TERMS
BELL MOUTH
CUT-OFF
TAB
Doc No: ATS-20021803HM
Revision: A
Application Tooling
Specification Sheet
Wire Size
Terminal Order No.
Reel Form only (1)
AWG mm²
505431-1000
26-30
STRIP LENGTH
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 01-27-17
Revision Date: 01-27-17
Insulation Diameter
IPC/WHMA-A620
mm
In.
NA
0.81-1.02 .032-.040 0.78-1.02 .031-.040 1.40-1.60 .055-.063
SEAM
INSULATION CRIMP
WIRE
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 2002180300
Strip Length
Terminal
mm
In.
mm
BEND UP
TWISTING
ROLLING
BEND
DOWN
TYPE 4A
In.
Page 1 of 6
