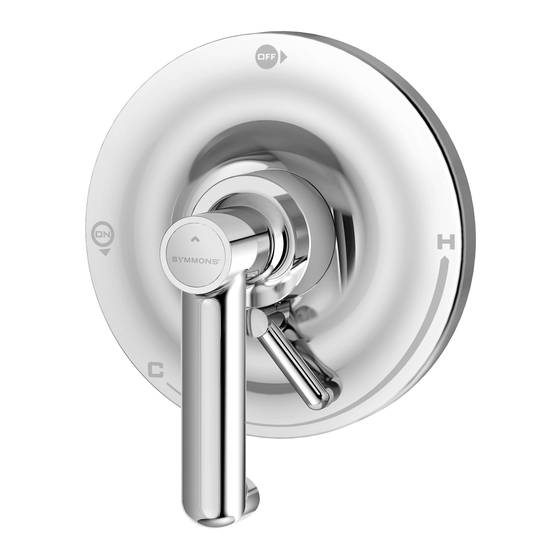

Museo Trim Series
Museo Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-5300-TRM
Shower Valve Trim
S-5301-TRM
Shower Trim
S-5302-TRM
Tub/Shower Trim
S-5304-TRM
Tub/Hand Shower Trim
S5308TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Museo
TRIM, TA-10, T-12A
S5300TRMTC
Shower Valve Trim
S5301TRMTC
Shower Trim
S5302TRMTC
Tub/Shower Trim
S5304TRMTC
Tub/Hand Shower Trim
S5308TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-5300-TRM
S5300TRMTC
S-5304-TRM
S5304TRMTC
S-5301-TRM
S-5302-TRM
S5301TRMTC
S5302TRMTC
S5308TRM
S5308TRMTC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Museo Trim Series
Summary of Contents for Symmons Museo Trim Series

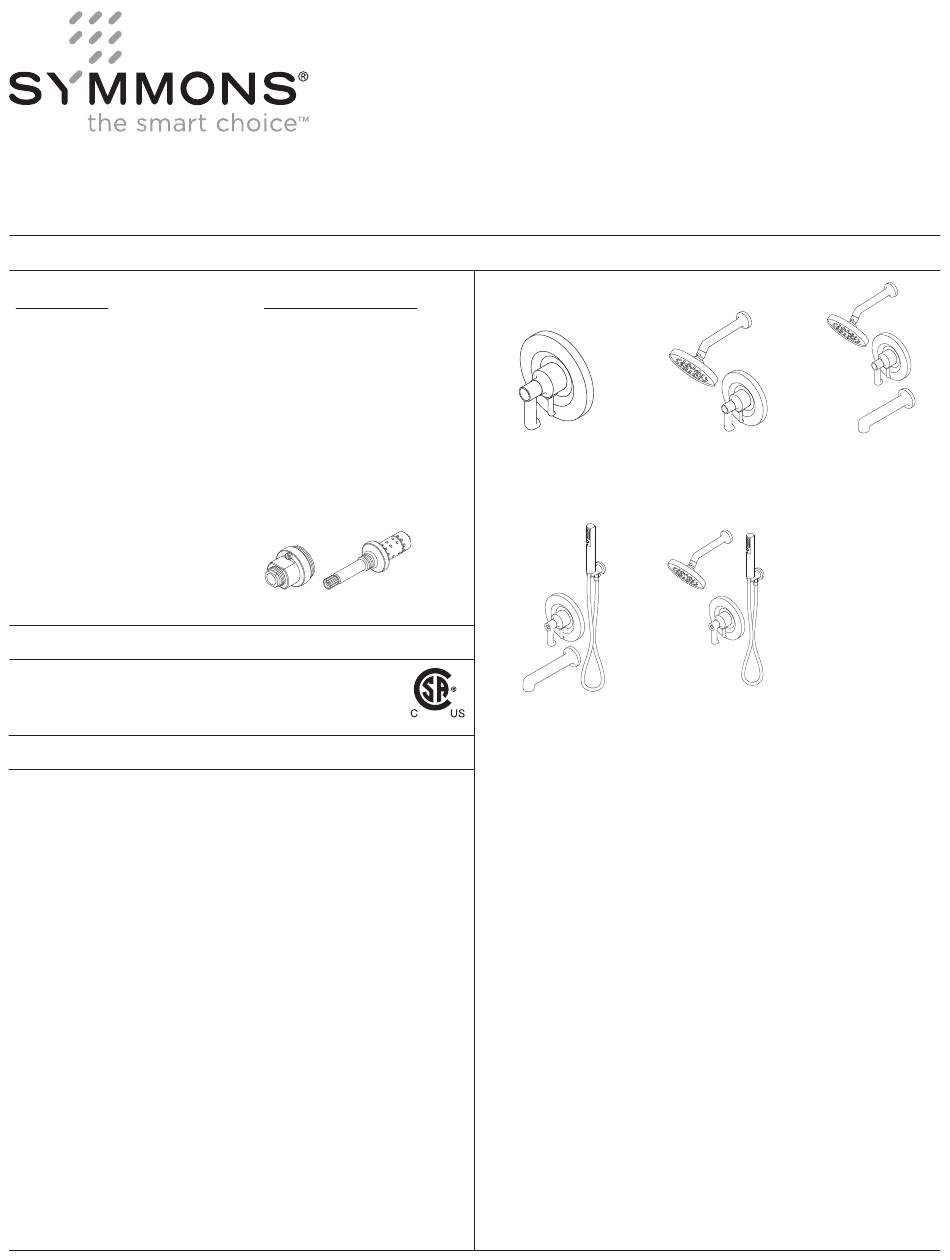

- Page 1 Museo ® Museo Trim Series Museo Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A S-5300-TRM S5300TRMTC Shower Valve Trim Shower Valve Trim S-5301-TRM S5301TRMTC Shower Trim...
-
Page 2: Recommended Tools
1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2", 51 mm 11-1/8", 283 mm Ø 2", 51 mm Male 1/2" IPS thread must protrude 3/8" from finished wall 6", 152 mm 77", 1956 mm... - Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
-
Page 4: Parts Breakdown
7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 532SH Shower Arm 532SA Plug Button Screw Star Washer T-665 Shower Handle Insert Dome Cover T-666 Shower Escutcheon Screws T-668A-NS-K001 Mounting Plate Diverter/Volume T-669 Control Handle Tub Spout 532TS Hand Shower 402W... - Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
- Page 6 10. Installation - Slide Bar Assembly 1) Install wall cradle to stub out pipe. Turn clockwise to FIGURE 10.1 FIGURE 10.2 tighten (FIGURE 10.1). 2) Attach small end of hand shower hose to wall cradle. Turn clockwise to tighten (FIGURE 10.2). 3) Attach large end of hand shower hose to hand shower wand.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
-
Page 8: 14. Troubleshooting Chart
For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3414 REV 0 030220...
