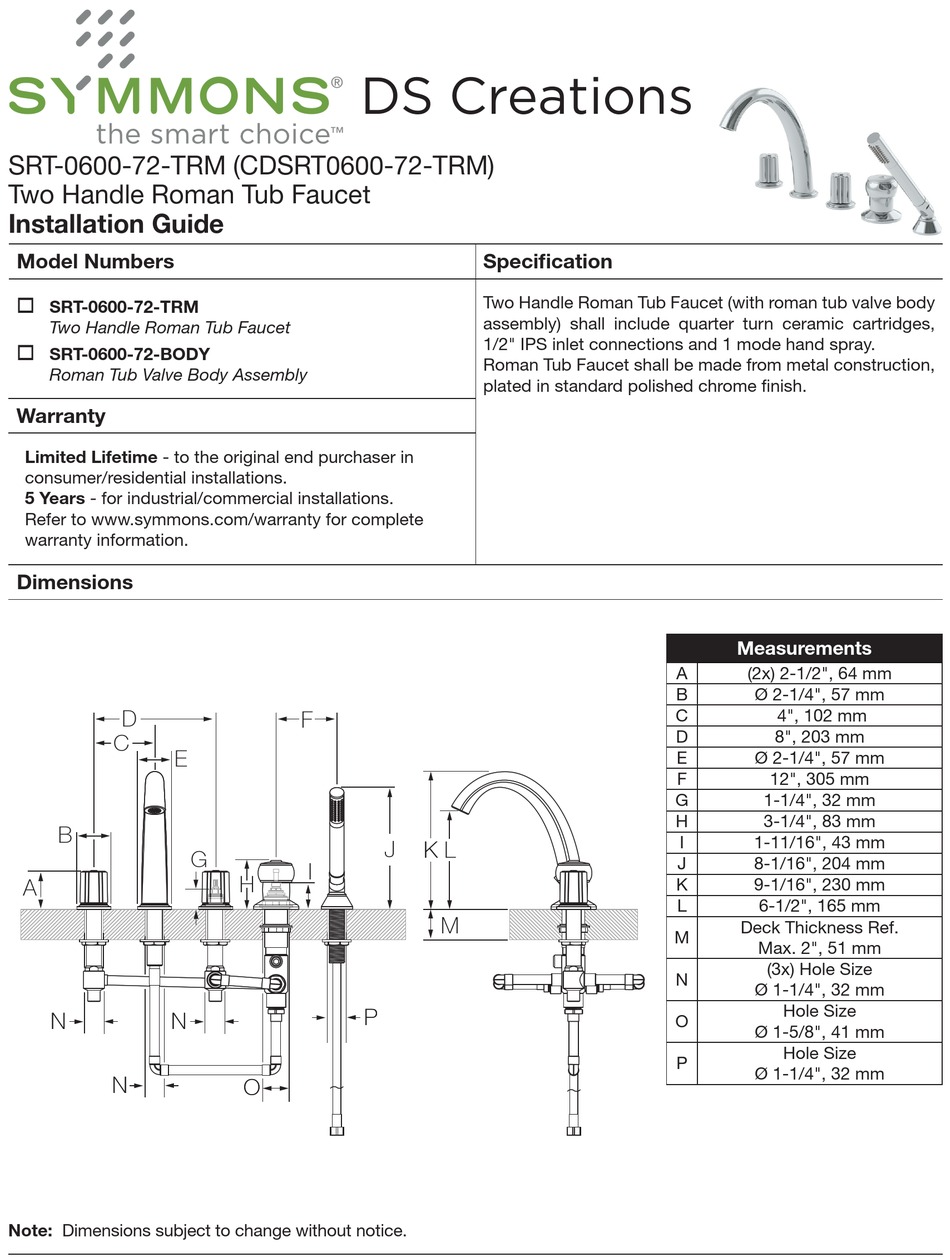

SRT-0600-72-TRM (CDSRT0600-72-TRM)
Two Handle Roman Tub Faucet
Installation Guide
Model Numbers
SRT-0600-72-TRM
Two Handle Roman Tub Faucet
SRT-0600-72-BODY
Roman Tub Valve Body Assembly
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
D D
C C
E E
B B
A A
N N
N N
N N
Note: Dimensions subject to change without notice.
DS Creations
F F
G G
I I
H H
P P
O O
Specification
Two Handle Roman Tub Faucet (with roman tub valve body
assembly) shall include quarter turn ceramic cartridges,
1/2" IPS inlet connections and 1 mode hand spray.
Roman Tub Faucet shall be made from metal construction,
plated in standard polished chrome finish.
J J
K K L L
M M
Measurements
A
(2x) 2-1/2", 64 mm
B
Ø 2-1/4", 57 mm
C
4", 102 mm
D
8", 203 mm
E
Ø 2-1/4", 57 mm
F
12", 305 mm
G
1-1/4", 32 mm
H
3-1/4", 83 mm
I
1-11/16", 43 mm
J
8-1/16", 204 mm
K
9-1/16", 230 mm
L
6-1/2", 165 mm
Deck Thickness Ref.
M
Max. 2", 51 mm
(3x) Hole Size
N
Ø 1-1/4", 32 mm
Hole Size
O
Ø 1-5/8", 41 mm
Hole Size
P
Ø 1-1/4", 32 mm
