SPR-3510-PD (CDSK0349-PO-SPR-1.75)
Spring Kitchen Faucet with Pull-Down Wand
Installation Guide
Model Numbers

SPR-3510-PD
Spring Kitchen Faucet with Pull-Down Wand

Compliance

-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372

Warranty

Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

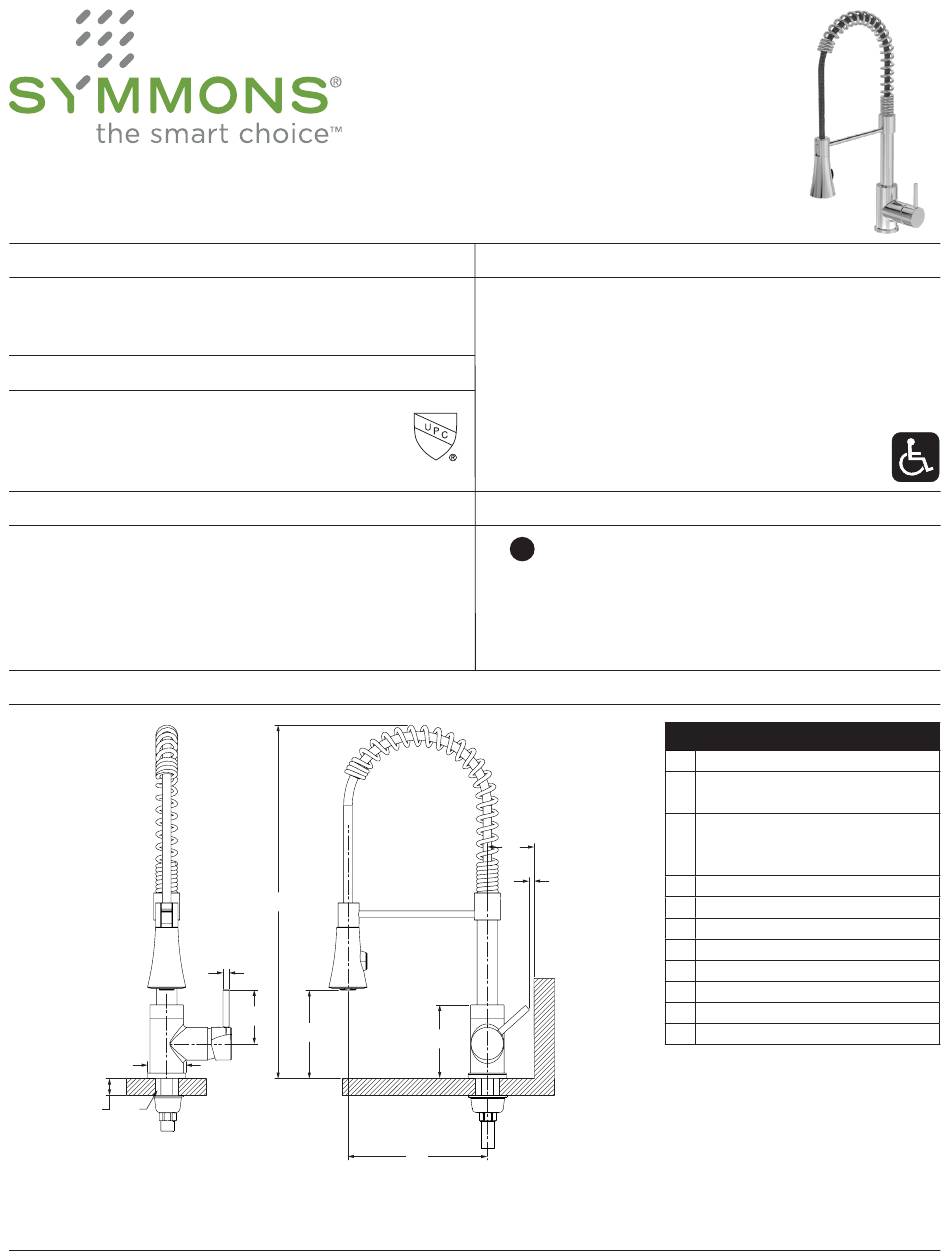

Dimensions

A A
B B C C
Notes:
1) Hoses removed for clarity.
2) Dimensions subject to change without notice.
DS Creations
c
F F
D D
E E
G G
K K
Specification
Spring Kitchen Faucet with Pull-Down Wand shall include
single hole mount configuration, dual function stream to
spray wand (faucet will default to stream mode), ceramic
cartridge, braided hose connections and standard
2.2 gpm (8.3 L/min) aerator. Faucet shall be made from
metal construction, plated in standard polished chrome
finish.

Modifications

 -1.75
CG
 -GH
 -STS
Note: Append appropriate -suffix to model number.
H H
I I
J J
1.75 gpm (6.6 L/min) aerator
Gray hose
Stainless Steel finish
Measurements
A Ø 2-3/16", 56 mm
Deck Thickness Ref.
B
Max. 1-1/2", 38 mm
Hole Size
C Min. Ø 1-3/4", 44 mm
Max. Ø 1-7/8", 48 mm
D Ø 3/8", 10 mm
E 3-1/8", 79 mm
F 20-3/8", 518 mm
G 5-1/8", 130 mm
Min. 3-1/8", 79 mm
H
I 3/4", 19 mm
J 4-1/4", 108 mm
K 8-1/16", 205 mm
