Symmons DS Creations SLW-0600-12-1.0-ADA Installation Manual

SLW-0600-12-1.0-ADA
(CDSLW0600-12-1.0-ADA)
Two Handle Widespread Lavatory Faucet
Installation Guide
Model Numbers

SLW-0600-12-1.0-ADA
Two Handle Widespread Lavatory Faucet

SLW-0600-12-1.0-ADA-TRM
Two Handle Widespread Lavatory Faucet Trim

SLW-0600-BODY
Widespread Valve Body Assembly
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

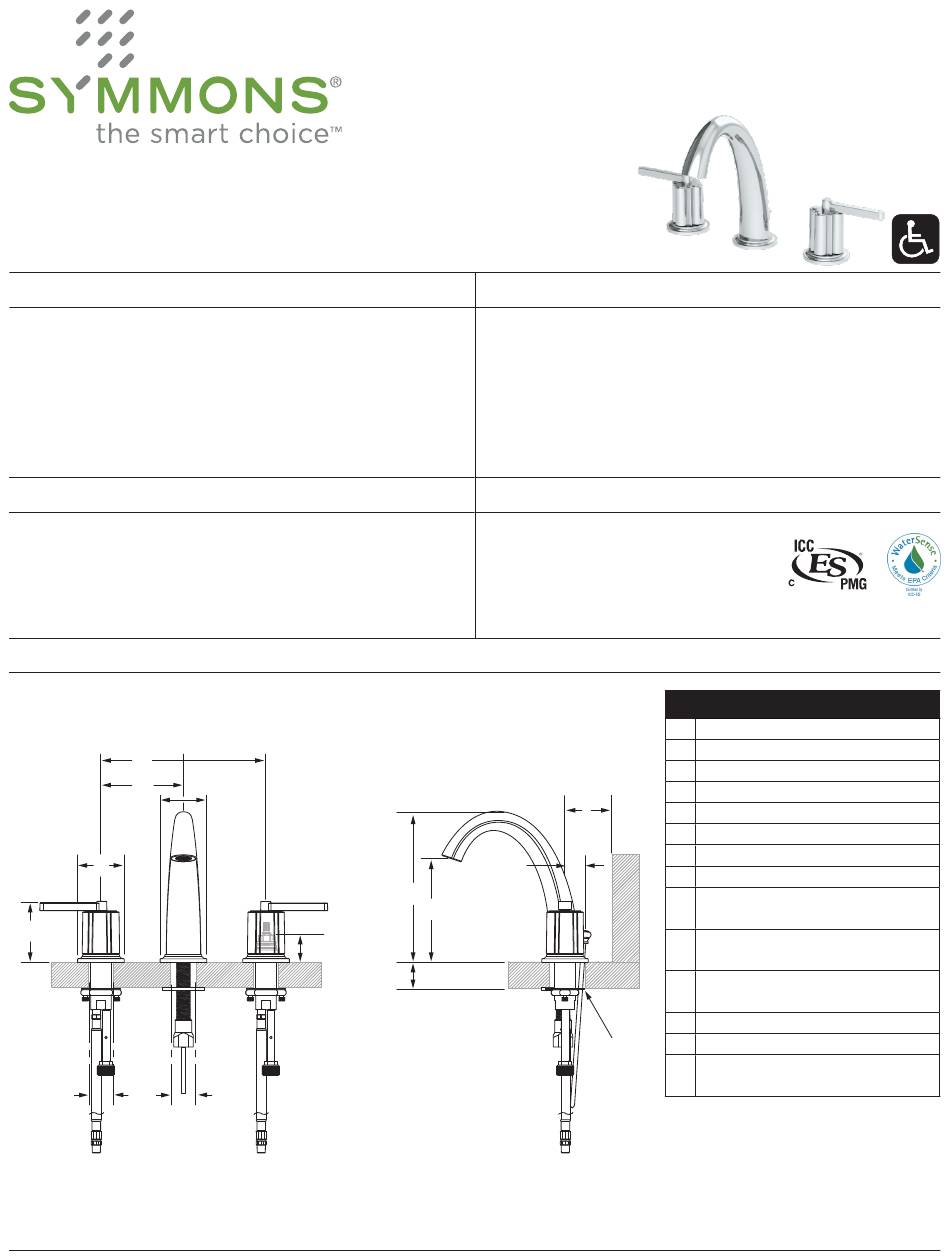

Dimensions
D D
C C
B B
A A
J J
Note: Dimensions subject to change without notice.
DS Creations
E E
F F
K K
Specification
Two Handle Widespread Lavatory Faucet (with widespread
valve body assembly) featuring 8"-16" mount shall include
quarter turn ceramic cartridges, 1/2" IPS inlet connections,
metal drain assembly and 1.0 gpm (3.8 L/min) aerator.
Faucet shall be made from metal construction, plated in
standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
-WaterSense 1.0 gpm (3.8 L/min)
for SLW-0600-12-1.0-ADA only
L L
M M
G G
H H
I I
Measurements
A (2x) 2-15/16", 75 mm
B Ø 2-1/4", 57 mm
C 4", 102 mm
D 8", 203 mm
E Ø 2-1/4", 57 mm
F 1-5/16", 33 mm
G 7-1/4", 184 mm
H 5", 127 mm
Deck Thickness Ref.
I
Max. 1-13/16", 46 mm
(2x) Hole Size
J
Ø 1-1/4", 32 mm
Hole Size
K
Ø 1-1/4", 32 mm
L Min. 2-1/4", 57 mm
N N M 3/4", 19 mm
Hole Size
N
Ø 3/4", 19 mm
