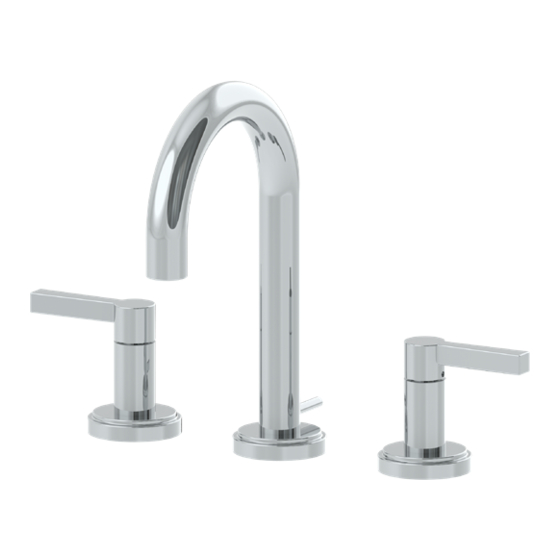

Two handle widespread lavatory faucet

Advertisement

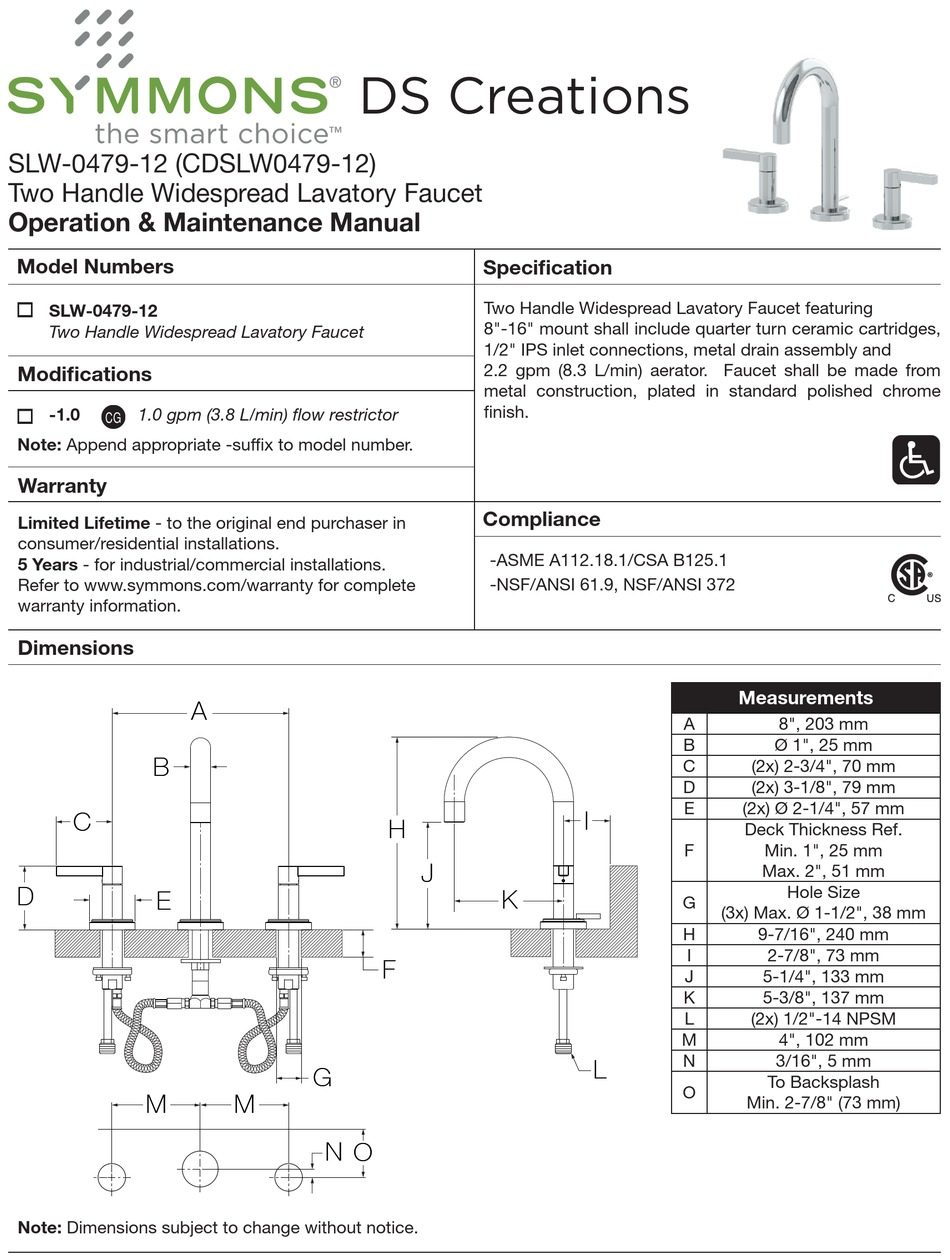

SLW-0479-12 (CDSLW0479-12)
Two Handle Widespread Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
SLW-0479-12
Two Handle Widespread Lavatory Faucet
Modifications
-1.0
1.0 gpm (3.8 L/min) flow restrictor
CG
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
B B
C C
D D
E E
M M
Note: Dimensions subject to change without notice.
DS Creations
A A
G G
M M
N N
O O
Specification
Two Handle Widespread Lavatory Faucet featuring
8"-16" mount shall include quarter turn ceramic cartridges,
1/2" IPS inlet connections, metal drain assembly and
2.2 gpm (8.3 L/min) aerator. Faucet shall be made from
metal construction, plated in standard polished chrome
finish.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
H H
J J
K K
F F
Measurements
A
B
C
(2x) 2-3/4", 70 mm
D
(2x) 3-1/8", 79 mm
E
(2x) Ø 2-1/4", 57 mm
I I
Deck Thickness Ref.
F
Max. 2", 51 mm
G
(3x) Max. Ø 1-1/2", 38 mm
H
9-7/16", 240 mm
I
J
5-1/4", 133 mm
K
5-3/8", 137 mm
L
(2x) 1/2"-14 NPSM
M
N
L L
O
Min. 2-7/8" (73 mm)
8", 203 mm
Ø 1", 25 mm
Min. 1", 25 mm
Hole Size
2-7/8", 73 mm
4", 102 mm
3/16", 5 mm
To Backsplash

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS Creations SLW-0479-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Symmons DS Creations SLW-0479-12

  • Page 1 Warranty Compliance Limited Lifetime - to the original end purchaser in consumer/residential installations. -ASME A112.18.1/CSA B125.1 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete -NSF/ANSI 61.9, NSF/ANSI 372 warranty information. Dimensions Measurements 8", 203 mm Ø 1", 25 mm (2x) 2-3/4", 70 mm...
  • Page 2: Parts Breakdown

    Parts Breakdown Notes: 1) Apply a bead of silicone around the perimeter of trim installed flush to sink. 2) Apply plumber tape to all threaded connections. Tools Required for Installation Adjustable Wrench Allen Wrench: Handle (2 mm) Replacement Parts Item Description Part Number Phillips Head...
  • Page 3: Installation

    Installation Water lines MUST be thoroughly flushed BEFORE and AFTER installing the faucet to prevent foreign matter i.e. copper chips, sand, stones, etc. from clogging and possibly damaging the sealing surfaces of the cartridge. 1) Move valve bodies (P) and mounting 3) Install spout (B) and spout 4) Install adapter tee (Q) to centerbody (F).
  • Page 4 Installation 6) Apply plumber putty to underside of 9) Turn drain assembly (7) so rod inlet 11) Connect lift rod (A) to clevis strap (15) flange (2). is facing toward faucet. Secure and secure with thumb screw (16). hardware from below sink. Install stopper (1) in the removable or non-removable position.
  • Page 5: Maintenance

    For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2018 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-2412 REV C 050818...
