Symmons DS Creations SLW-7702-1.5 Installation Manual

SLW-7702-1.5 (CDS0250-274-0-CYL)
Two Handle Widespread Lavatory Faucet
Installation Guide
Model Numbers

SLW-7702-1.5
Two Handle Widespread Lavatory Faucet
Modifications
-1.0
1.0 gpm (3.8 L/min) flow restrictor
 CG
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

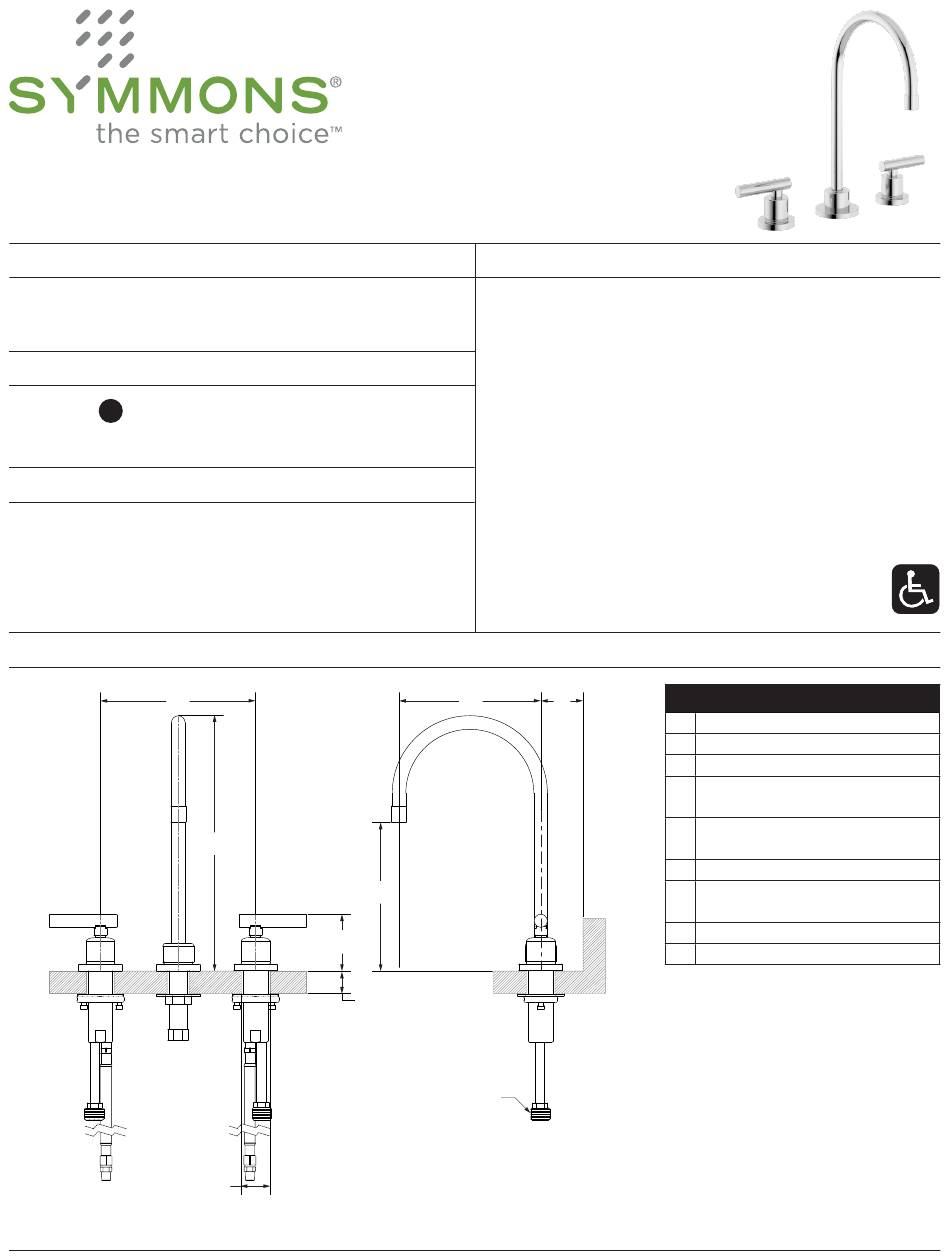

Dimensions
A A
Note: Dimensions subject to change without notice.
DS Creations
B B
H H
C C
D D
E E
Specification
Two Handle Widespread Lavatory Faucet featuring 8"-16"
mounting configuration shall include ceramic cartridges,
copper supply lines, 1/2" IPS inlet connections and
1.5 gpm (5.7 L/min) aerator. Faucet shall be made from metal
construction, plated in standard polished chrome finish.
G G
F F
I I
Measurements
A 8", 203 mm
B 11-5/8", 295 mm
C 2-5/8", 67 mm
Deck Thickness Ref.
D
Max. 1-1/4", 32 mm
Hole Size
E
Max. Ø 1-1/2", 38 mm
F 6-1/2", 165 mm
To Backsplash
G
Min. 2-1/2", 64 mm
H 6-3/4", 171 mm
I 1/2-14 NPSM
