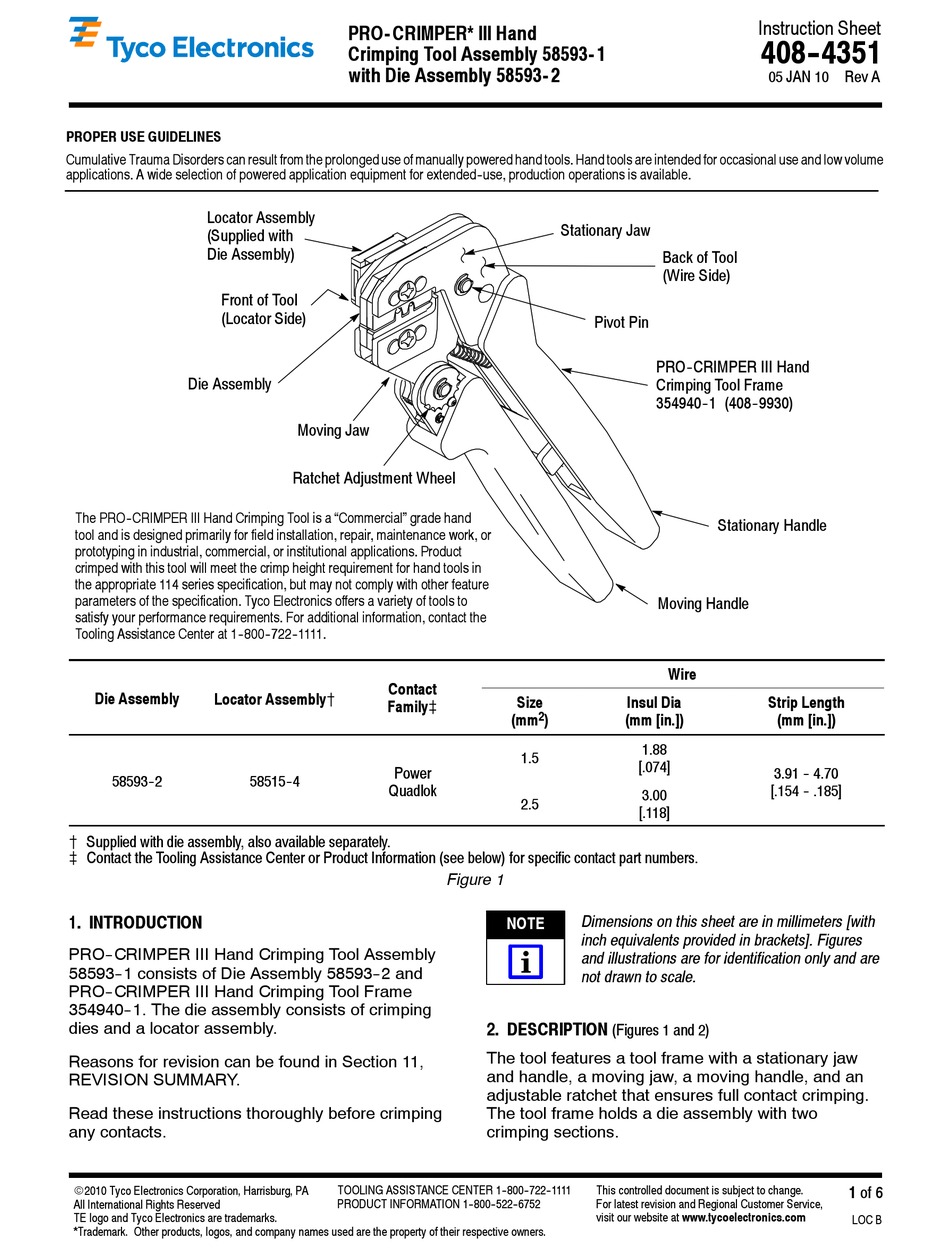

Tyco Electronics 58593-1 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Locator Assembly
(Supplied with
Die Assembly)
Front of Tool
(Locator Side)
Die Assembly
The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade hand
tool and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 series specification, but may not comply with other feature
parameters of the specification. Tyco Electronics offers a variety of tools to
satisfy your performance requirements. For additional information, contact the
Tooling Assistance Center at 1- - 800- - 722- - 1111.
Die Assembly
Locator Assembly{
58593 2 58593--2
{ Supplied with die assembly, also available separately.
} Contact the Tooling Assistance Center or Product Information (see below) for specific contact part numbers.
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool Assembly
58593--1 consists of Die Assembly 58593--2 and
PRO--CRIMPER III Hand Crimping Tool Frame
354940--1. The die assembly consists of crimping
dies and a locator assembly.
Reasons for revision can be found in Section 11,
REVISION SUMMARY.
Read these instructions thoroughly before crimping
any contacts.
E2010 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO- CRIMPER* III Hand
Crimping Tool Assembly 58593- 1
with Die Assembly 58593- 2
Moving Jaw
Ratchet Adjustment Wheel
Contact Contact
Family}
Power Power
58515--4 58515 4
Quadlok
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Stationary Jaw
Pivot Pin
Size
2
(mm ) (mm [in.])
1.5
2.5
Figure 1
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for identification only and are
not drawn to scale.
2. DESCRIPTION
(Figures 1 and 2)
The tool features a tool frame with a stationary jaw
and handle, a moving jaw, a moving handle, and an
adjustable ratchet that ensures full contact crimping.
The tool frame holds a die assembly with two
crimping sections.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 4351
05 JAN 10 Rev A
Back of Tool
(Wire Side)
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
Stationary Handle
Moving Handle
Wire
Insul Dia Strip Length
(mm [in.])
1.88
[.074]
3.91 -- 4.70 3.91 -- 4.70
[.154 -- .185]
3.00
[.118]
1 of 6
LOC B
