Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Die Assembly
318451-2
Moving
Jaw
The PRO-CRIMPER III Hand Crimping Tool is a Commercial" grade tool
and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 application specification, but may not comply with other
feature parameters of the specification. Tyco Electronics offers a variety of
tools to satisfy your performance requirements. For additional information,
contact the Tooling Assistance Center at 1-800-722-1111.
1. INTRODUCTION
PRO–CRIMPER III Hand Crimping Tool Assembly
318451–1 consists of Die Assembly 318451–2 and
PRO–CRIMPER III Hand Crimping Tool Frame
354940–1. The hand tool assembly is used to crimp
75–Ohm RF Series BNC Commercial Plug Connector
221185–8 and Bulkhead Jack Connector 221221–5
onto various sizes of RG/U cable.
For connector assembly and cable stripping
procedures, refer to instruction sheet 408–9088 for
the plug connectors and 408–9089 for the jack
connectors. Read these instructions thoroughly
before using the hand tool assembly. This document
supersedes Instruction Sheet 408–9282.
NOTE
Dimensions on this sheet are in millimeters
[with inches in brackets]. Figures are for
i
reference only and are not drawn to scal
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.

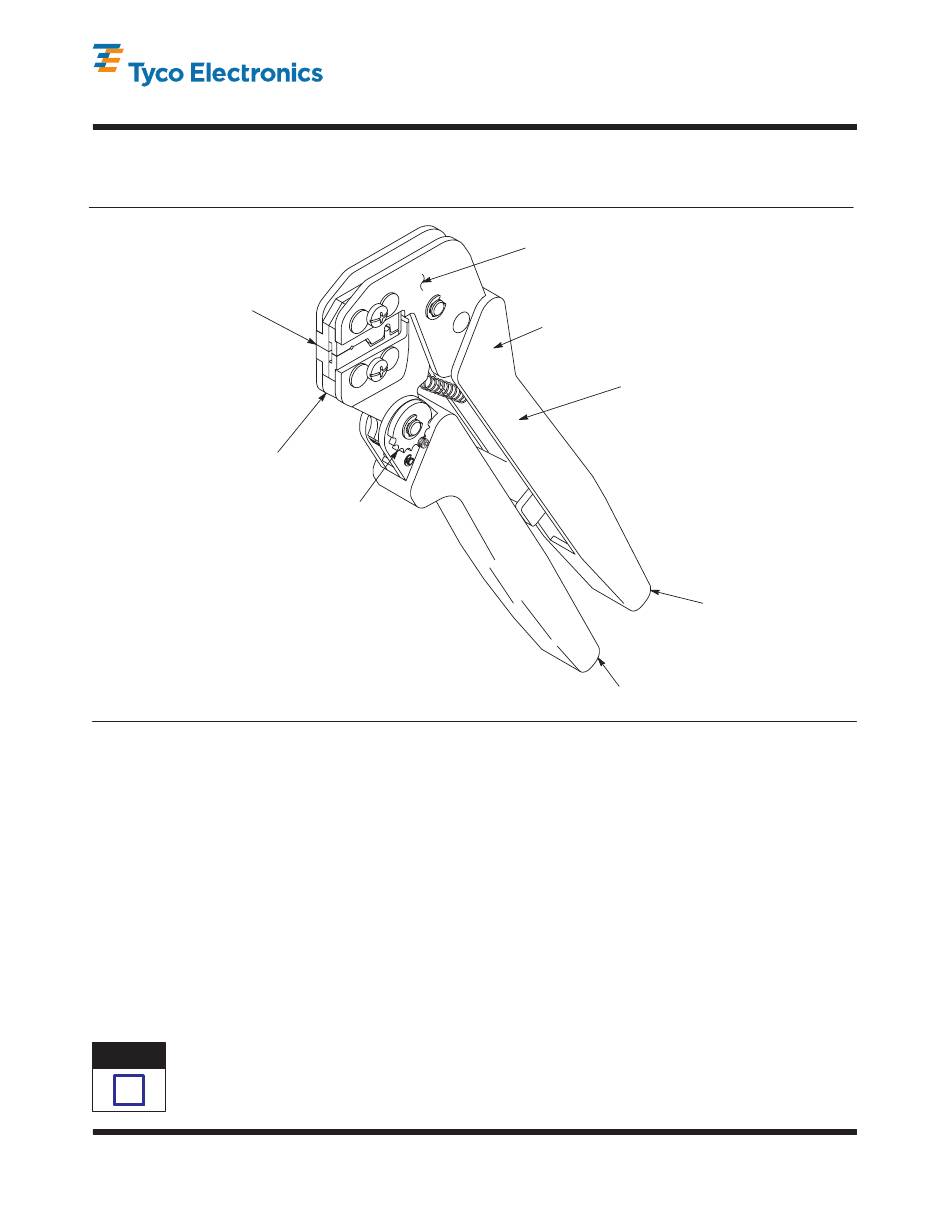

PRO-CRIMPER* III Hand Crimping
Tool Assembly 318451-1 with
Die Assembly 318451-2
Ratchet
Adjustment Wheel
Figure 1
Reasons for reissue of this instruction sheet are
provided in Section 9, REVISION SUMMARY.
2. DESCRIPTION
The hand tool assembly features a tool frame with a
stationary jaw and handle, a moving jaw, a moving
handle, and an adjustable ratchet that ensures full
connector crimping.
The tool frame holds a die assembly with two
crimping chambers. The die assembly features a wire
anvil, an insulation anvil, a wire indenter, and an
insulation indenter. Die retaining pins and die retaining
screws are used to position and secure the dies in the
tool frame.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary
Jaw
Back of Tool
(Wire Side)
PRO-CRIMPER III Hand
Crimping Tool Frame
354940-1 (408-9930)
Stationary
Handle
Moving Handle
(Figures 1 and 2)
This controlled document is subject to change.
For latest revision and Regional Customer Service,
www.tycoelectronics.com
visit our website at
Instruction Sheet
408-4217
30 APR 09 Rev B
