2.2.3 SIP Paging Amplifier System Installation and Connection Options

The following figures show the connection options for the SIP Paging Amplifier.
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
When line-in is enabled on the device, the
audio received from the line-in connection
will be played to the speaker(s) and line-
out connection as the lowest priority audio.
The IP66 Analog Horn
(part #011471) must be
purchased separately.
Operations Guide

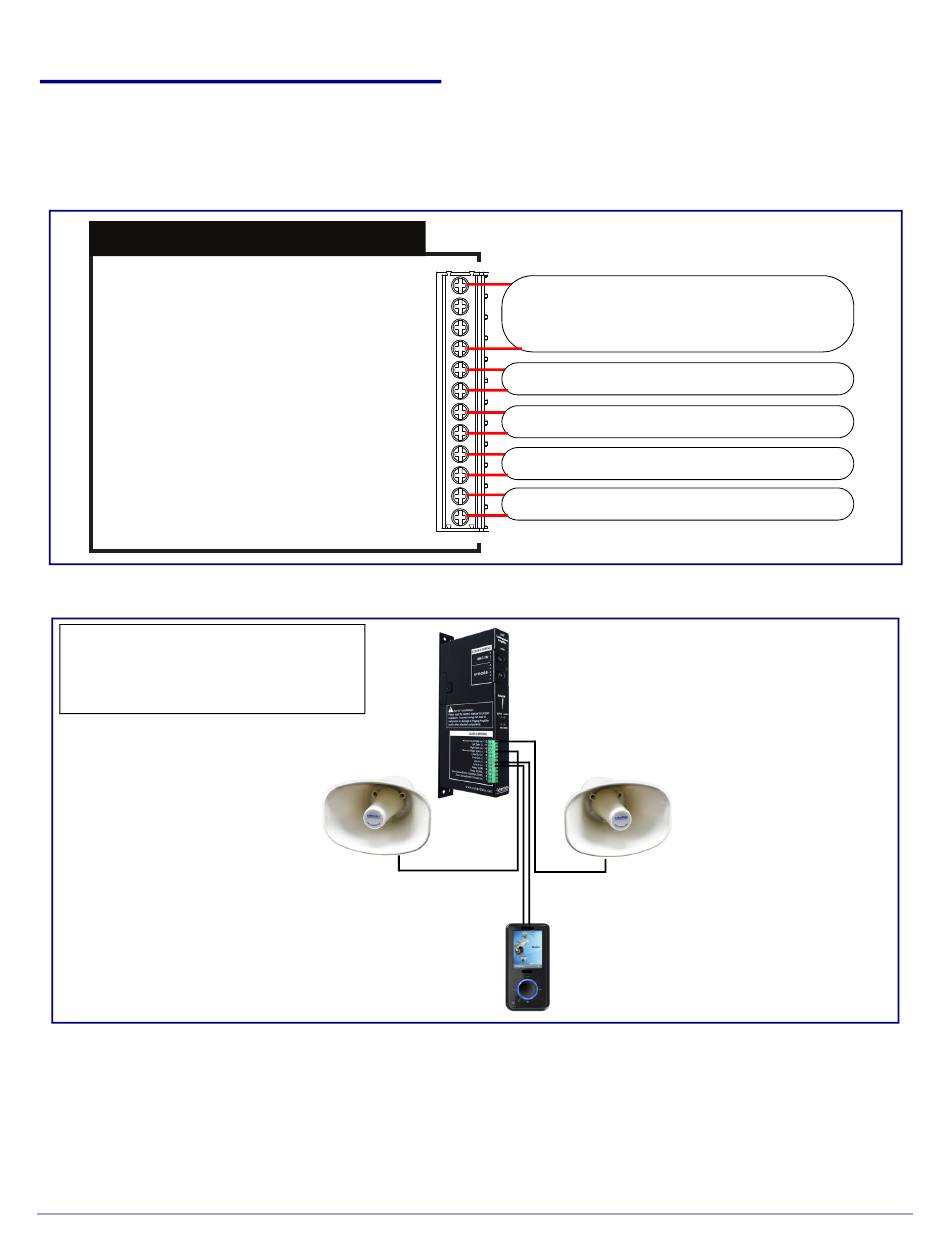

Figure 2-9. SIP Paging Amplifier Connections
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
Right Spkr (+) - 10
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
Figure 2-10. Line-In Connection
Speaker Connections
(Figure
Line-Out Connection (10K Ohm)
Line-In Connection
Relay Connection
Sensor Connection
Paging Amplifier
Music Source
931156K
Installing the SIP Paging Amplifier
SIP Paging Amplifier Setup
2-6) (Figure 2-7)(Figure 2-8)
(Figure 2-10)
(Figure 2-11)
(Figure 2-12)
