Coemar SoftLite Led VariWhite Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

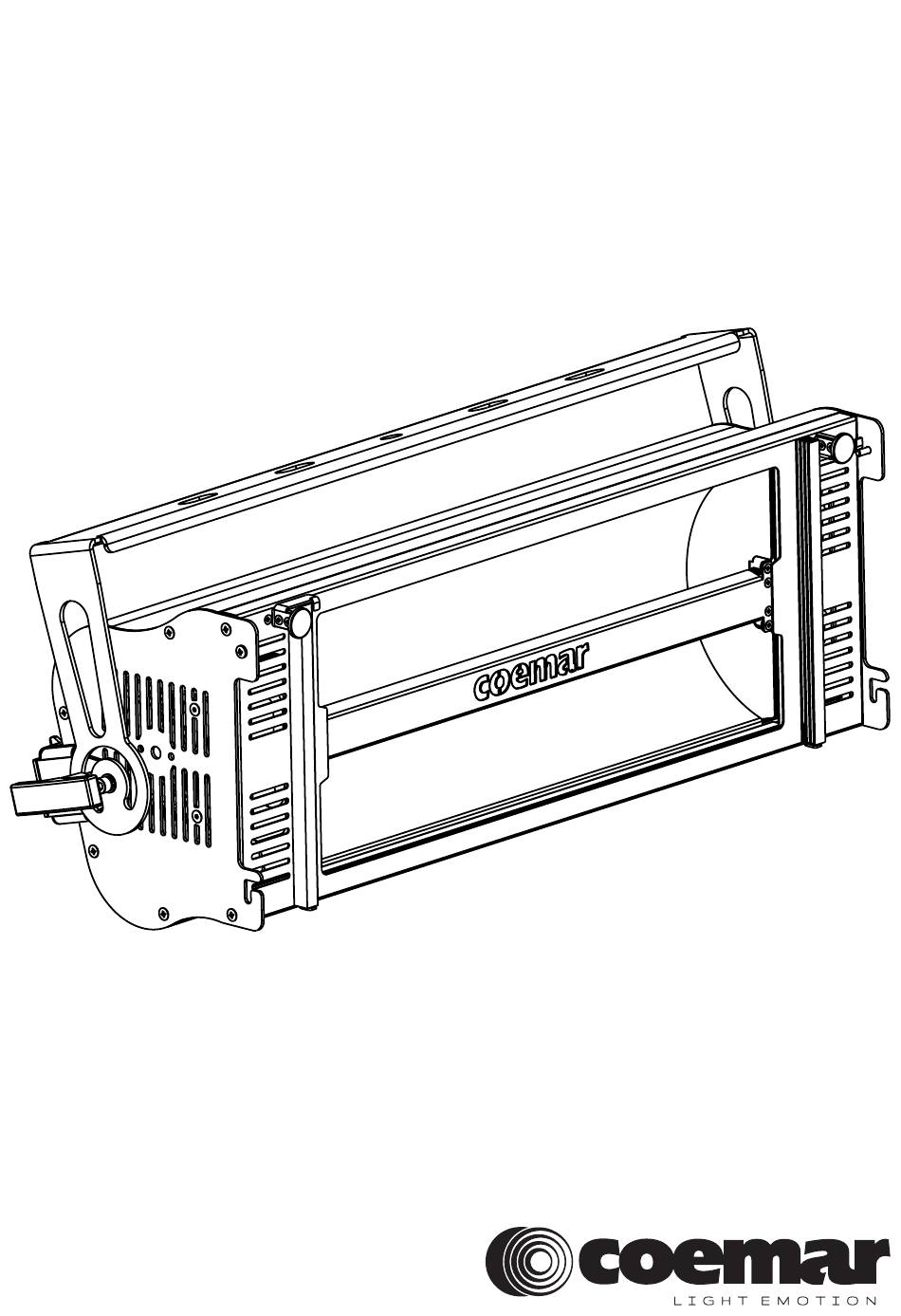

SoftLite Led
VariWhite
Instruction manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoftLite Led VariWhite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar SoftLite Led VariWhite

Summary of Contents for Coemar SoftLite Led VariWhite

  • Page 1 SoftLite Led VariWhite Instruction manual Version 1.0...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your SoftLite Led VariWhite: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation ......................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ...........................Pag. 5 2. General Information .......................... Pag. 5 2.1 Important safety information......................Pag. 5 2.2 Warranty conditions ........................Pag. 6 2.3 EC Norms ............................Pag. 6 3. Product specifications ........................Pag. 7 3.1 Technical characteristics .........................Pag.
  • Page 4 11. Maintenance ............................Pag. 27 11.1 Firmware update ........................... Pag. 27 11.2 Periodic cleaning ......................... Pag. 27 11.3 Periodic controls .......................... Pag. 27 11.4 Fuses .............................. Pag. 27 12. F.A.Q. and answers ......................... Pag. 28...

  • Page 5: Packaging And Transportation

    Make sure the packaging contains: 1 SoftLite Led VariWhite 1 Instruction manual 1 Main power plugs Transportation The SoftLite Led VariWhite must be transported exclusively in its original packaging or in an appropriate flight case. . General information Important Safety information Fire prevention: 1.

  • Page 6: Warranty Conditions

    3. The level of technology of SoftLite Led VariWhite requires the use of spe- cialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projec- tor.

  • Page 7: Product Specifications

    . Product specifications Technical characteristics Power supply 115-250Vac 50/60Hz self-regulating Maximum current 1.2 A a 230 VaC - 2.43 A a 115 Vac Power factor Cosϕ = 0.9 Power consumption 250 Watt Proportional control of white color temperature from Color temperature 2700 K to 6500 K CRI (Color Rendering Index) >90...

  • Page 8: Unit's Main Components

    Unit’s main components Components description Locking knobs Yoke Cooling slots Front panel Back panel Accessories hooking Back panel description DMX In and Out 5 poles connector Power supply Display and Neutrik PowerCon keyboard connector...

  • Page 9: Installation

    Installation Mechanical installation SoftLite Led VariWhite may be hung from an appropriate structure in any position or on tri- pod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropri- ate clamp “A”, as shown in the following diagram.

  • Page 10: Adjusting Unit's Tilt

    Adjusting unit’s tilt In order to adjust the tilt of the unit simply loose the side handle, adjust the tilt and lock the yoke by tightening the handle again.

  • Page 11: Mounting The Accessories

    Mounting the accessories To mount an accessory you have to loose the small knob “A”, insert the accessory that you need and close the knob.

  • Page 12: Powering Up

    CV5311). Connection to mains power SoftLite LED VariWhite is equipped with two power connectors, one as input and one as out- put, which can be used to feed up to 10 (at 230 VAC) or 5 (90 VAC) fixtures.
  • Page 13 The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. SoftLite Led VariWhite should not be powered through a dimmer as this may damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of Softlite Led VariWhite.

  • Page 14: Control Signal Connections

    The digital control signal is transmitted to the projector via two pole cable screened according to the International standards for the transmission of DMX 512 data. The connection must be serial, using connectors XLR5 male and female located on the back of SoftLite Led VariWhite labeled DMX512 IN e OUT (see diagram).

  • Page 15: Turning On The Projector

    1 to 6 from your DMX 512 controller . A second unit must be addressed as A007, a third one as A013 and so on. The operation must be carried out on every Softlite Led VariWhite which has an address different from A001.

  • Page 16: Dmx Chart

    DMX chart DMX Chart 6 channels type of channel function effect decimal percentage control master dimmer proportional adjust luminous output intensity from 0% to 100% 0 - 255 0% - 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% 3200 K 0 - 10 0% -...
  • Page 17 step no effect proportional from the previous step to temperature selected - 126 0% - 49% white fine step no effect 127 - 128 50% - 50% temperature proportional from temperature selected the following step 129 - 254 51% - 100% step no effect 100%...
  • Page 18 DMX Chart 2, 1 channels type of channel function effect decimal percentage control 1 master dimmer proportional adjust luminous output intensity from 0% to 100% 0 - 255 0% - 100% 3200 K 0 - 10 0% - 2700 K 11 - 16 4% - 6% 2800 K...

  • Page 19: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 20: Main Functions Menu

    Main functions menu Dimmer: dIMM It allows the selection of different dim- mer curves: exponential (default), loga- [Dimmer] rithmic, linear and halogen; Test: Allows to manually set the DMX channels controlled by a DMX console: • Dimmer: sets the luminous intensity; •...
  • Page 21 DMX channels: Allows to choose the number of channels 6 CH with which operate in DMX mode. [DMX] Display functions: Changes the display settings: 2 CH • Reverse: rotates the display of 180°; • Hold: Sets or disables the automatic display lock function that occurs after 10 seconds of inactivity;...

  • Page 22: Measure (Meas)

    Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module temper- [Temperature] ature; • Board: shows the electronic board temperature. t.brd Supply voltage: Shows the power supply voltage. uOLT DMX input: Shows the value of the DMX channels received by the fixture on every channel [Supply Voltage] that the fixture occupies on the line.
  • Page 23 Alarm: ALrM This menu shows the alarm statuses if there is any. [Alarms] LED: Shows the percentage value of the LED status. Frequency: Shows the operating frequency of the LED (611 Hz as default). [LED Status] Fan speed: Shows the voltage in which the fan is operating.

  • Page 24: Electronic Alignment Of The Leds

    The display panel of Softlite Led VariWhite allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for spe- cial effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 25: Special Functions Of The Fixture

    Error messages If a malfunction occurs, Softlite Led VariWhite has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 26: Accessories And Spare Parts

    Honeycomb 10mm (0.39 in) - BC10026004 All the components of Softlite Led VariWhite are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in pro- viding for your requirements in an efficient and effective manner.
  • Page 27 Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses Softlite Led VariWhite has an automatic fuse that in most cases does not need to be re- placed.
  • Page 28 . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •...
  • Page 29 User notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 30 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 31 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
