Coemar SoftLite Led T Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SoftLite Led T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoftLite Led T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar SoftLite Led T

Summary of Contents for Coemar SoftLite Led T

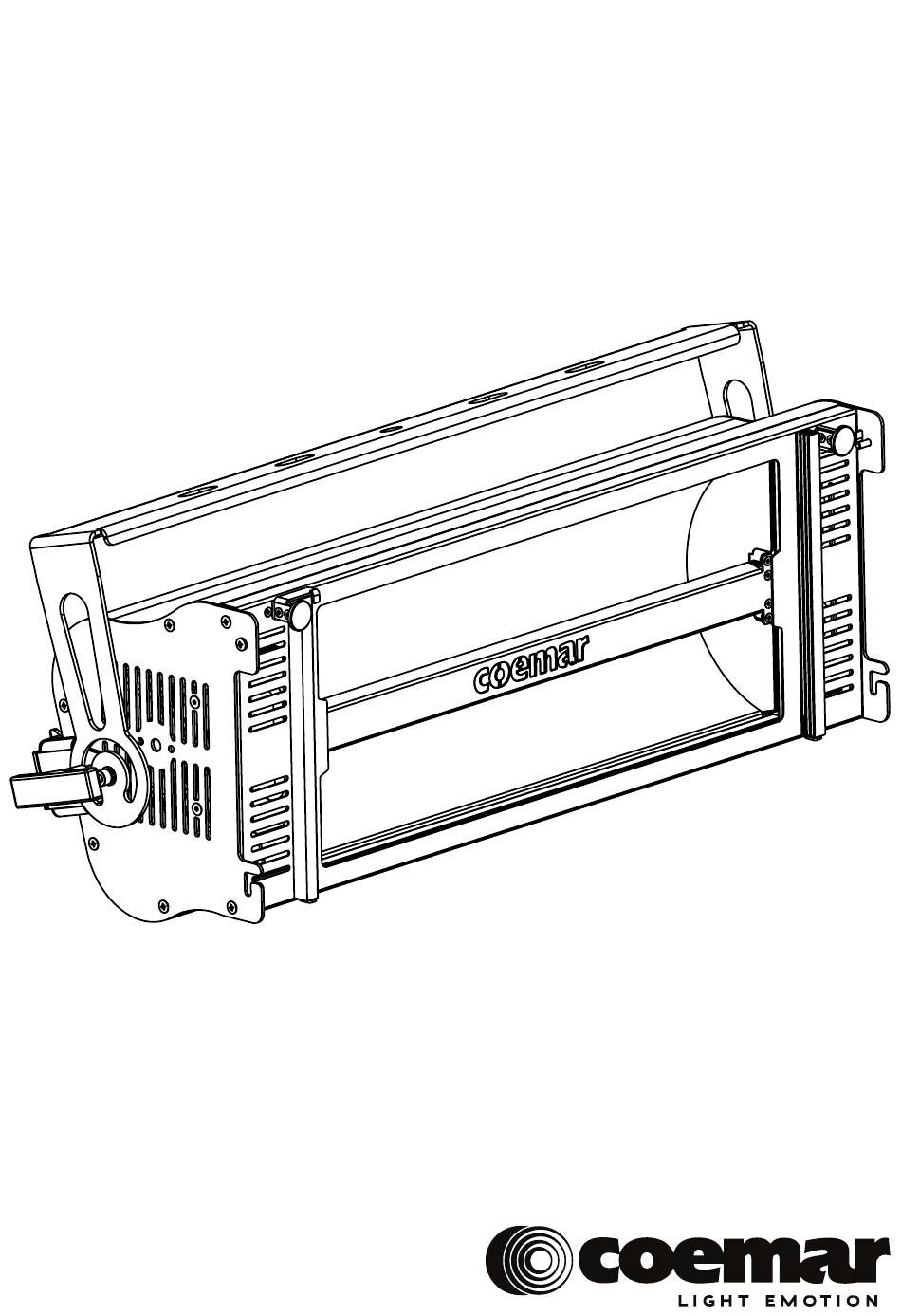

  • Page 1 SoftLite Led T...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your SoftLite Led T: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation ......................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ...........................Pag. 5 2. General Information .......................... Pag. 5 2.1 Important safety information......................Pag. 5 2.2 Warranty conditions ........................Pag. 6 2.3 EC Norms ............................Pag. 6 3. Product specifications ........................Pag. 7 3.1 Technical characteristics .........................Pag.
  • Page 4 11. Maintenance ............................Pag. 27 11.1 Firmware update ........................... Pag. 27 11.2 Periodic cleaning ......................... Pag. 27 11.3 Periodic controls .......................... Pag. 27 11.4 Fuses .............................. Pag. 27 12. F.A.Q. and answers ......................... Pag. 28...

  • Page 5: Packaging And Transportation

    Make sure the packaging contains: 1 SoftLite Led T 1 Instruction manual 1 Main power plugs Transportation The SoftLite Led T must be transported exclusively in its original packaging or in an appropriate flight case. . General information Important Safety information Fire prevention: 1.

  • Page 6: Warranty Conditions

    3. The level of technology of SoftLite Led T requires the use of specialised per- sonnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projec- tor.

  • Page 7: Product Specifications

    . Product specifications Technical characteristics Power supply 90-264 V, auto-sensing, 50/60 Hz Maximum current 1.2 A a 230 V - 2.43 A a 115 V Power factor Cosϕ = 0.9 Power consumption 250 W Color temperature Fixed white color temperature at 3.200 K CRI (Color Rendering Index) Weight 9.6 kg - 21.1 lbs...

  • Page 8: Unit's Main Components

    Unit’s main components Components description Locking knobs Yoke Cooling slots Front panel Back panel Accessories hooking Back panel description DMX In and Out 5 poles connector Power supply Display and Neutrik PowerCon keyboard connector...

  • Page 9: Installation

    Installation Mechanical installation SoftLite Led T may be hung from an appropriate structure in any position or on tripod. If hang- ing the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram.

  • Page 10: Adjusting Unit's Tilt

    Adjusting unit’s tilt In order to adjust the tilt of the unit simply loose the side handle, adjust the tilt and lock the yoke by tightening the handle again.

  • Page 11: Mounting The Accessories

    Mounting the accessories To mount an accessory you have to loose the small knob “A”, insert the accessory that you need and close the knob.

  • Page 12: Powering Up

    CV5311). Connection to mains power SoftLite LED T is equipped with two power connectors, one as input and one as output, which can be used to feed up to 10 (at 230 V) or 5 (at 90 V) fixtures.
  • Page 13 The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. SoftLite Led T should not be powered through a dimmer as this may damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of SoftLite Led T.

  • Page 14: Control Signal Connections

    The digital control signal is transmitted to the projector via two pole cable screened according to the International standards for the transmission of DMX 512 data. The connection must be serial, using connectors XLR5 male and female located on the back of SoftLite Led T labeled DMX512 IN e OUT (see diagram).

  • Page 15: Turning The Projector On

    1 to 5 from your DMX 512 controller . A second unit must be addressed as A006, a third one as A011 and so on. The operation must be carried out on every SoftLite Led T which has an address different from A001.

  • Page 16: Dmx Chart

    DMX chart DMX Chart 5, 1 channels type of channel function effect decimal percentage control 1 master dimmer proportional adjust luminous output intensity from 0% to 100% 0 - 255 0% - 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional fine dimmer control 16 bit...

  • Page 17: Display Panel Functions

    ENTER button to access to any other function. By suitably using all the functions of SoftLite Led T, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions.

  • Page 18: Main Functions Menu

    Main functions menu Tungsten: Mimics the slow dimming curve of tung- tUnG sten lamps. It allows the selection of different dimmer [Tungsten] curves: exponential (default), logarithmic and linear; Allows to manually set the DMX channels controlled by a DMX console: •...
  • Page 19 DMX channels: Shows the DMX mode and number of 5 CH Channels] channels selectable; [DMX channels] Display functions: Changes the display settings: 1 CH • Reverse: rotates the display of 180°; Channel] • Auto: Sets or disables the automatic display turn off function, which would occur after 10 seconds of inactivity;...

  • Page 20: Measure (Meas)

    Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module temper- [LED Temperature] ature; [Temperature] • Board: shows the electronic board temperature. Volt: [Board Temperature] Shows the power supply voltage. vOLt DMX Input: Shows the value of the DMX channels received by the fixture on every channel [Supply Voltage]...
  • Page 21 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the [LED Status] LED (611 Hz as default). Fan speed: Shows the voltage in which the fan is op- erating Usage hours: Shows the hour counter of the fixture: •...

  • Page 22: Electronic Alignment Of The Leds

    Electronic alignment of the leds The display panel of SoftLite Led T allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 23: Special Functions Of The Fixture

    Error messages If a malfunction occurs, SoftLite Led T has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 24: Accessories And Spare Parts

    Honeycomb 10 mm (0.39 in) - BC10026A004 All the components of SoftLite Led T are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for...
  • Page 25 Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses SoftLite Led T has an automatic fuse that in most cases does not need to be replaced.
  • Page 26 . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •...
  • Page 27 User notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 28 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 29 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
