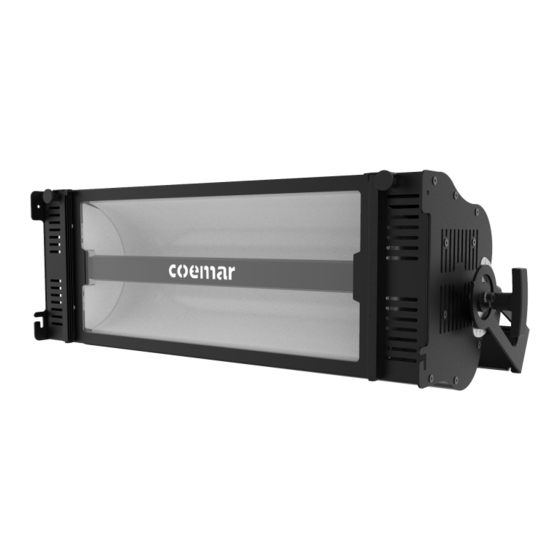

Provisional
instruction manual
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoftLite Led RGBW and is the answer not in the manual?

Questions and answers

Related Manuals for Coemar SoftLite Led RGBW

Summary of Contents for Coemar SoftLite Led RGBW

  • Page 1 Provisional instruction manual Version 1.2...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Softlite Led RGBW: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
  • Page 3 Index 1. Packaging and transportation ....................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ..........................Pag. 5 2. General Information ........................Pag. 5 2.1 Important safety information ....................Pag. 5 2.2 Warranty conditions ........................Pag.6 2.3 EC Norms ............................. Pag. 6 3. Product specifications ......................Pag. 7 3.1 Technical characteristics ......................Pag.
  • Page 4 11. Maintenance ..........................Pag. 28 11.1 Firmware update ......................... Pag. 28 11.2 Periodic cleaning ......................... Pag. 28 11.3 Periodic controls ........................Pag. 28 11.4 Fuses ............................Pag. 28 12. F.A.Q. and answers ....................... Pag. 29...

  • Page 5: Packaging And Transportation

    Make sure the packaging contains: 1 SoftLite Led RGBW 1 Instruction manual 1 Main power plugs Transportation The SoftLite Led RGBW must be transported exclusively in its original packaging or in an appropriate flight case. . General information Important Safety information Fire prevention: 1.

  • Page 6: Warranty Conditions

    3. The level of technology of SoftLite Led RGBW requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.

  • Page 7: Product Specifications

    . Product specifications Technical charateristics Power supply 115-250Vac 50/60Hz self-regulating Maximum 1.3 A a 230 VaC - 2.6 A a 115 Vac Phase coefficient Cosϕ = 0.9 Light source power 270W RGBW, with pure colour mixing throughout the Color temperature excursion field and all whites from 2.700 to 10.000 K >90 Weight...

  • Page 8: Unit's Main Components

    Unit’s main components Components description Locking knobs Yoke Cooling slots Front panel Back panel Accessories hooking Back panel description DMX In and Out 5 poles connector Power supply Display and Neutrik PowerCon keyboard connector...

  • Page 9: Installation

    Installation Mechanical installation SoftLite Led RGBW may be hung from an appropriate structure in any position or on tripode. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram.

  • Page 10: Adjusting Unit's Tilt

    Adjusting unit’s tilt In order to adjust the tilt of the unit simply loose the side handle, adjust the tilt and lock the yoke by tightening the handle again.

  • Page 11: Powering Up

    The unit may operates at voltages ranges from 115 to 250VaC at a frequency of 50 or 60 Hz. It is not needed to effect any setup procedures: SoftLite Led RGBW will automatically adjust its operation to suit any frequency or voltage within this range.
  • Page 12 The use of a thermal/magnetic circuit breaker is recommended. Strict adherence • to regulatory norms is strongly recommended. SoftLite Led RGBW should not be powered through a dimmer as this may damage • the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics •...

  • Page 13: Control Signal Connections

    XLR5 male and female located on the back of SoftLite Led RGBW labeled DMX512 IN e OUT (see diagram). Connectors equipped on SoftLite Led RGBW are IP rated, which ensures protection against water and dust. In order to keep this rating they must be connected exclusively to other IP rated connectors.

  • Page 14: Turning On The Projector

    1 to 14 from your DMX 512 controller . A second unit must be addressed as A015, a third one as A029 and so on. The operation must be carried out on every Softlite Led RGBW which has an address different from A001. Altering the DMX address: 1.

  • Page 15: Dmx Chart

    DMX chart DMX Chart 14, 8, 4, 1 channels channel function type of control effect decimal percentage 14ch 8ch 4ch 1ch master dimmer proportional adust luminous output intensity from 0% to 100% - 255 0% - 100% proportional proportional control of the color percentage from 0 to 100% - 255 0% - 100% green...
  • Page 16 no effect - 255 0% - 4% RED Preset 1 10 - 71 4% - 28% red tone step RED Preset 2 72 - 133 28% - 52% RED Preset 3 134 - 195 53% - 76% RED Preset 4 196 - 255 77% - 100% no effect 0% - 4%...

  • Page 17: Dmx Chart 7 Channels

    DMX Chart 7 channels channel function type of control effect decimal percentage master dimmer proportional adust luminous output intensity from 0% to 100% - 255 0% - 100% step White 2700 K - 15 0% - 6% proportional proportional value from 2700 K to 3200 K 16 - 30 6% - 12% step...
  • Page 18 park 0% - 4% RGB standard 10 - 40 4% - 16% no effect 41 - 71 16% - 28% step 600 Hz 72 - 84 28% - 33% fan at low-noise speed 85 - 96 33% - 38% fan at auto speed 97 - 108 38% - 42% proportional fan speed control from minimum to maximum...

  • Page 19: Display Panel Functions

    Rapid count Through the display panel of Softlite Led RGBW it is possible to quickly change the various numbers displayed for the different functions in the following 3 manners: 1. Pressing the + or – buttons will cause the count to be quicker.

  • Page 20: Main Functions Menu

    Main functions menu CCT: It allows to vary the channel of white 2.700 on several color temperatures from 2.700 K to 10.000 K, without DMX signal; 10.000 Dimmer: It allows to choose the type of dimmer curves between exponential, logarithmic and linear (exponential as default) diMM Test:...
  • Page 21 Fan Speed: • Auto: balance the fan speed meet maxim silence without compromising the light auto performance; [Fan Speed] • Low noise: sets minium fan speed to ensure a silent performance at the expens of light [Low noise] output in case of overheat. DMX channels: • 1 CH: it allows to change the white 1 CH...
  • Page 22 Default Settings: Allows to restore the factory default of the fixture, with exception of DMX dF.SE. address and LED alignment. SURE Measures: [Default Settings] Allows to read all the parameters: LED and board temperatures, fan level, DMX ratio, DMX, allarms, channels MEAS.

  • Page 23: Measure (Meas)

    Measure (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module [LED Temperature] [Temperature] temperature; • Board: shows the electronic board temperature. t.brd [Board Temperature] Volt: Shows the power supply voltage. vOLt 48 v DMX Input: Shows the value of the DMX channels [Supply Voltage] received by the fixture on every...
  • Page 24 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the [LED Status] LED (611 Hz as default). Fan speed: Shows the percentage fan usage. Usage hours: Shows the hour counter of the fixture: • Unit: shows the overall hours of life of the fixture;...

  • Page 25: Electronic Alignment Of The Leds

    Electronic alignment of the leds The display panel of Softlite Led RGBW allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 26: Special Functions Of The Fixture

    10 minutes of fixture inactivity. Error messages If a malfunction occurs, Softlite Led RGBW has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 27: Accessories And Spare Parts

    Honeycomb 10mm (0.39 in) - BC10026004 All the components of Softlite Led RGBW are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.

  • Page 28: Maintenance

    Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses Softlite Led RGBW has an automatic fuse that in most cases does not need to be replaced.

  • Page 29: F.a.q. And Answers

    . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: Make sure the power cord is plugged in or test the •...
  • Page 30 User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 31 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 32 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
