REVEX
1PH from 30A to 40A

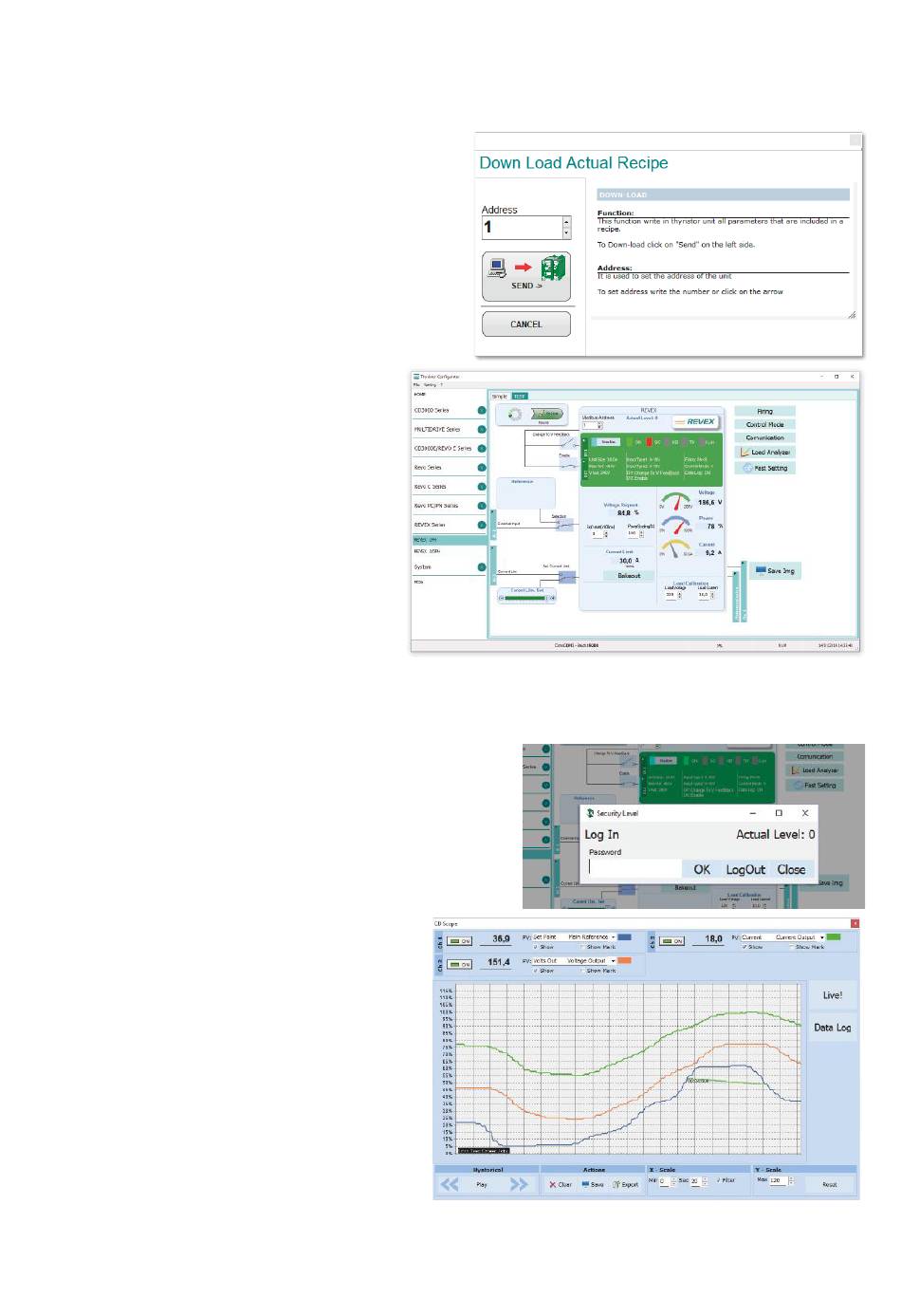

10.5.3 To download a recipe fi le into a power controller:
1) Click Simple, if not already on the Simple view
2) Click Open existing recipe
3) Locate and select the recipe fi le and click
4) Click OK
5) Click Download to unit
6) Set the address, if necessary
7) Click SEND->
8) Wait for the software to write the parameter settings
9) Click OK
10.5.4 To monitor a power controller
with the Test view:
1) Click Test, if not already on the test view
2) Click Online
10.5.5 To log in on the test view to change the digital input and analog input functions:
1) Click the Access Level
2) Type the password:
3) Click
OK
10.5.6 To log out the test view:
1) Click the Access Level value.
2) Click Log out.
3) Click OK.
10.5.7 To view data on the scope:
1) Click Test, if not already on the test view
2) Click Online
3) Click Load Analyzer
4) For each of up to three channels (Ch 1 to Ch 3):
- With PV1 choose the value to monitor
- Select Show
- Click the color swatch to change the color
- Click the button to turn the channel on.
Open
value (zero when logged out)
1111
43
