REVEX
1PH from 30A to 40A

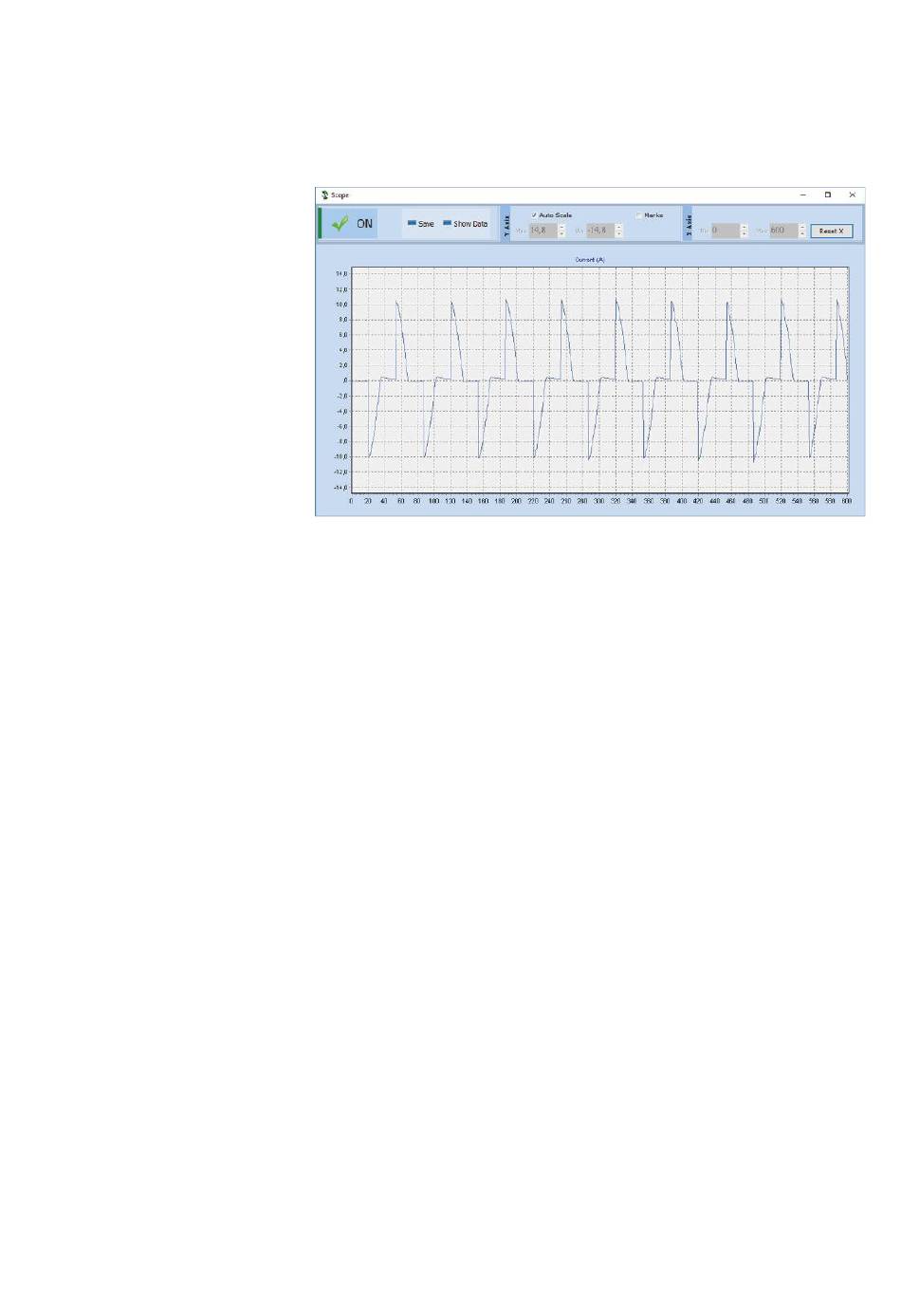

10.6.5 Live! Scope
This view provides a graph of current waveform over a few sample cycles. Data will be automatically updated
when Enable will be selected.
Use these options to confi gure the
displayed data:
Enable: set this option to view
the current on the graph
Save: click to save a JPEG image
of current window
Data: click to open the
Show
Data panel on the right of the
graph that shows the data points
for the current sample
Auto Scale: select this option
so that the
automatically adjusts the X and
Y axis settings.
Y Axis:
Max: show or set the high end of
the vertical axis
Min: show or set the low end of the vertical axis
Marks: set this option to display data markers along the trend in the graph area.
X Axis (future use):
Max: show actually high end of the horizontal axis
Min: show actually low end of the horizontal axis
Reset X: Reset the high end and low end of of the horizontal axis to initial value after a zoom action.
Confi gurator
