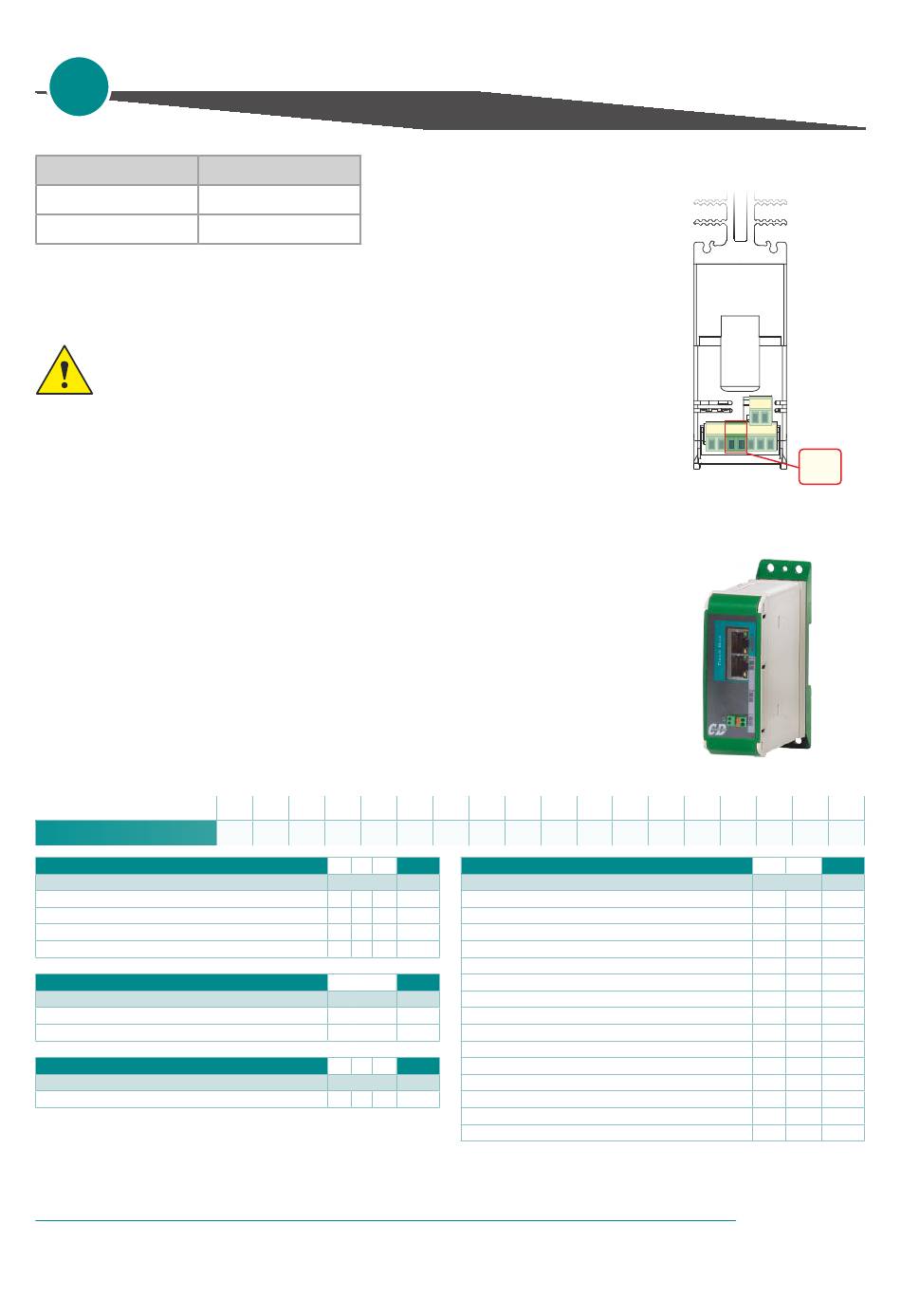

REVEX
1PH from 30A to 40A
16

RS485 Serial port

M3 Terminal
3
4
The serial communication port RS485 is available on the Command Terminals.
On this port may be done a network up to 127 REVEX.
Warning: It is not possible to remove the M3 connector when
the unit is powered. Remove the AUX 24Vdc power supply
before extracting the M3 connector.
Extracting the M3 connector with the AUX 24Vdc power supply
connected to the M3 terminal could damage the unit

16.1 FIELD BUS Module

Technical Specification
• Up to n°14 REVEX can be connected for each terminal module
• Secondary communication port to connect REVO HMI
• Main process variable available
• 24Vdc Power Supply
• Simplified configuration
ORDER CODE
Field Bus or Communication
description
N° 1 Modbus TCP + N° 1 Modbus RTU slave
N° 1 ProfiNet IO + N° 1 Modbus RTU slave
N° 1 ProfiBus DP + N° 1 Modbus RTU slave
N° 1 Ethernet IP + N° 1 Modbus RTU slave
Secondary Communication Port
description
None
Modbus TCP
Configuration
description
REVEX 1-2-3PH
Note (1): Not available with Modbus TCP Field Bus Communication (T-C-P on digit 8-9-10)
Note (2): It's possible to manage from 1 to 14 zones with basic read and write configuration (see the Manual). Code "00" is used for different configurations.
Addendum Manual available here:
https:/ /www.cdautomation.com/download/cd-automation/revex-comm/manuals/ENG/REVEX_14RX_profinet.pdf
Description
RS485 A+
RS485 B-
1 2 3 4
T U - R S
8 9 10
code
T C P
P N T
P D P
E I P
11
code
0
1
12 13 14
code
R V X
5 6 7 8
4 8 5 - _
N° zones
note description
Not configured
1 zone
2 zones
3 zones
4 zones
5 zones
note 6 zones
7 zones
8 zones
1
9 zones
10 zones
note 11 zones
12 zones
13 zones
14 zones
58
User's manual
TOP VIEW
SYNC
1 2 3 4 5 6 7
9 10 11 12 13
_ _ _ _ _
M3
14 15 16
_ _ _
15 16
code note
0 0 2
0 1
0 2
0 3
0 4
0 5
0 6
0 7
0 8
0 9
1 0
1 1
1 2
1 3
1 4
