REVEX
1PH from 30A to 40A
TOP VIEW
1 2 3 4 5 6 7

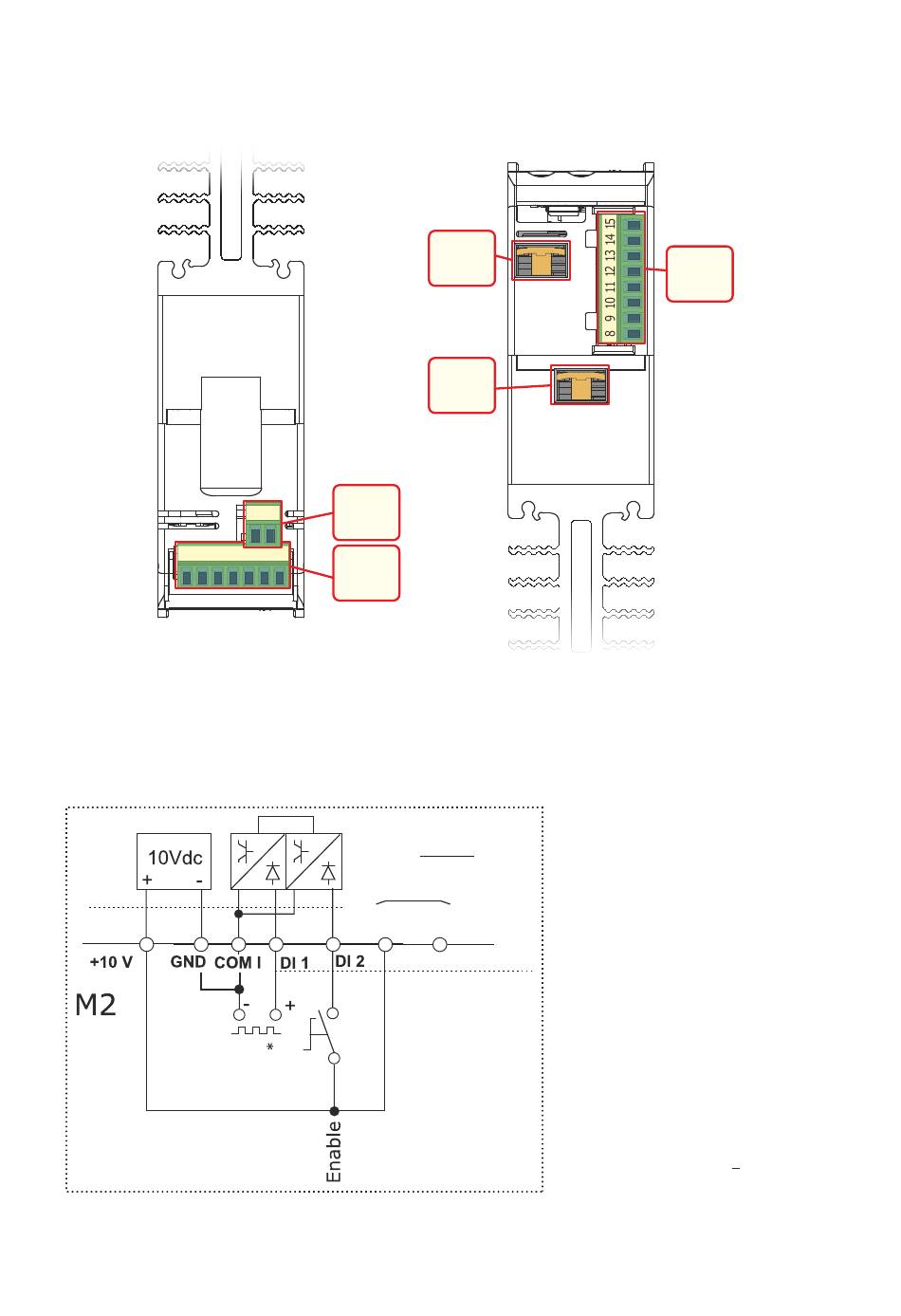

8.2.1 SSR Control Input schematic
For SSR input use follow the schematic below and configure Digital Input 1 as Fast Enable.
14 8
M1
SYNC
M3
Analog Input 1
9
11 12
10
SSR
INPUT
DOWN VIEW
L1
T1
13
* SSR Input:
4 ÷ 30Vdc 5mA Max (ON >4Vdc OFF <1Vdc)
3HZ Max on time min. 100 ms
23
User's manual
M2
