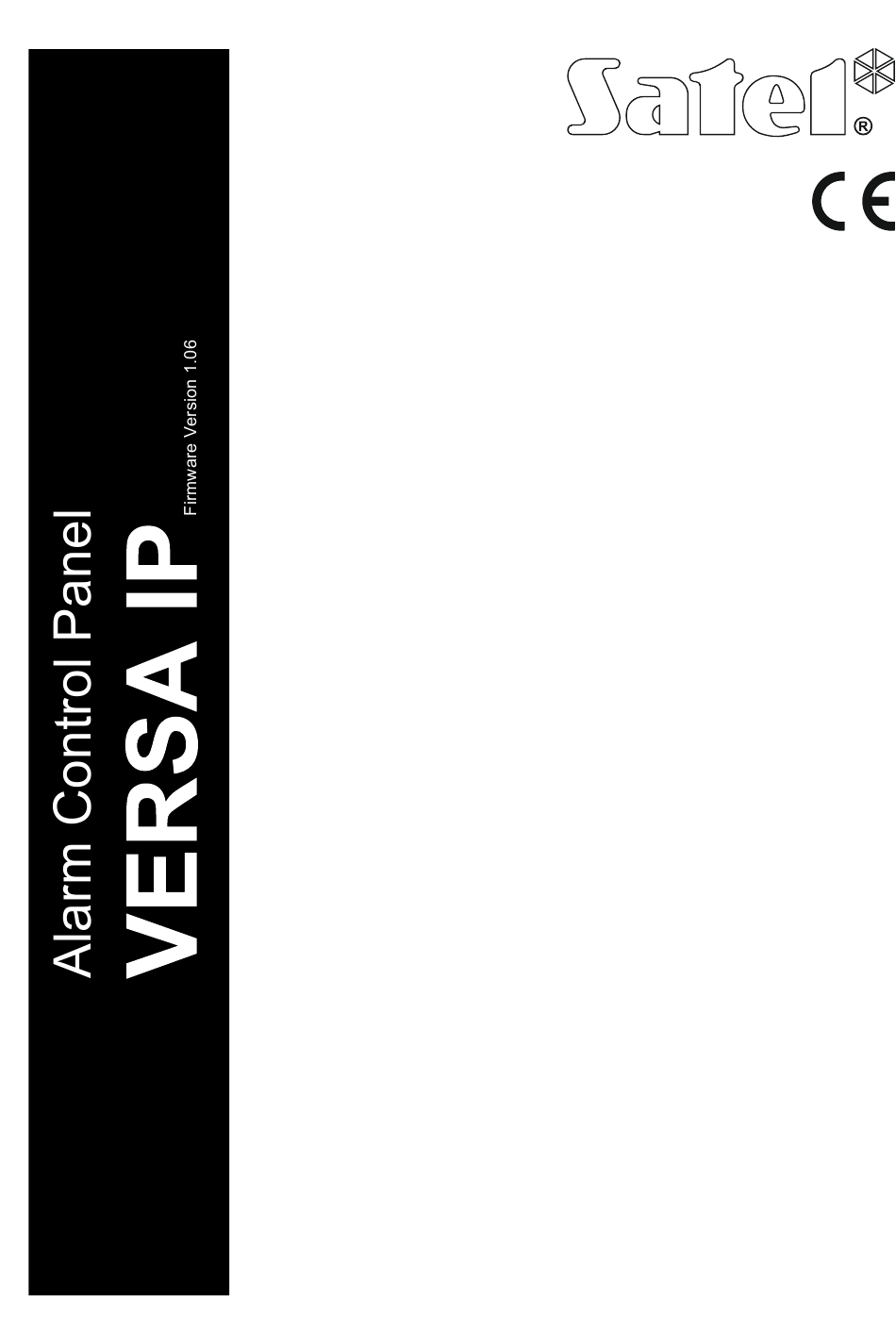

Satel VERSA IP Quick User Manual
Alarm control panel
Hide thumbs
Also See for VERSA IP:
- Programming manual (95 pages) ,
- Installer manual (40 pages) ,
- Operating instructions manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for Satel VERSA IP
Summary of Contents for Satel VERSA IP
- Page 1 QUICK USER MANUAL The full user manual and other manuals are available on www.satel.eu SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. 58 320 94 00 www.satel.eu versa_ip_us_en 09/15...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Operating The Alarm System From Keypad
1. Operating the alarm system from keypad SATEL offers the following keypads for VERSA IP control panels: INT-TSG – hardwired touchscreen keypad (how to operate the alarm system from the INT-TSG, please refer to the manual delivered with the keypad), INT-TSH –... - Page 4 VERSA IP SATEL green LED – indicates the partition state (each red LED – indicates alarm or alarm memory in partition has its own LED) the partition (each partition has its own LED) ON – partition is armed The information is presented for 2 seconds and blinking –...
- Page 5 SATEL VERSA IP Arming without partition selection Disarming and/or alarm clearing [CODE] - full arming [CODE] - in both partitions [CODE] - night arming [CODE] - in partition 1 [CODE] - day arming [CODE] - in partition 2 Arming Partition 1...
- Page 6 VERSA IP SATEL 1.1 Codes Operating the alarm system by means of the keypad is possible after entering the code. Only some functions can be run without the code being entered. Do not make your code available to other people.
- Page 7 SATEL VERSA IP 1.3.4 Arming without delay hen arming the system using one of the above mentioned methods, press and hold down the arming mode selection key ( ) for about 3 seconds. The system will become armed without delay, i.
- Page 8 VERSA IP SATEL Press the key twice to defer the auto-arming. 1.8 User menu Enter the code and press to get access to the user menu. The list of available functions depends o n your rights, as well as on the state and configuration of the system.
-
Page 9: Operating The Alarm System By Means Of Keyfob
SATEL VERSA IP LED keypad The state of zones is illustrated by LEDs designated by numbers. The steady-on LEDs indicate which zones are inhibited or isolated. The blinking (flashing) LED means that the cursor is situated there. Use the keys to move the cursor. The cursor may... -
Page 10: Versa Control Application - First Steps
VERSA IP SATEL The user can have two keyfobs: 433 MHz keyfob – supported by the 433 MHz keyfobs receiver expansion module or 433 MHz wireless system controller, APT-100 bidirectional keyfob – supported by the ABAX wireless system controller. - Page 11 SATEL VERSA IP enter the MAC address of control panel (the hardware address of built-in Ethernet communication module), enter the ID number of control panel (the individual identification number for the purpose of communication via the SATEL server), ...
