Connector Specifications
Connector Type
24-Pin Molex Style 43025-2400
Number of Pins
24
Pin Spacing
3x3 mm (0.118 x 0.118 in)
Sales 800-633-0405
we constantly strive to
®
®

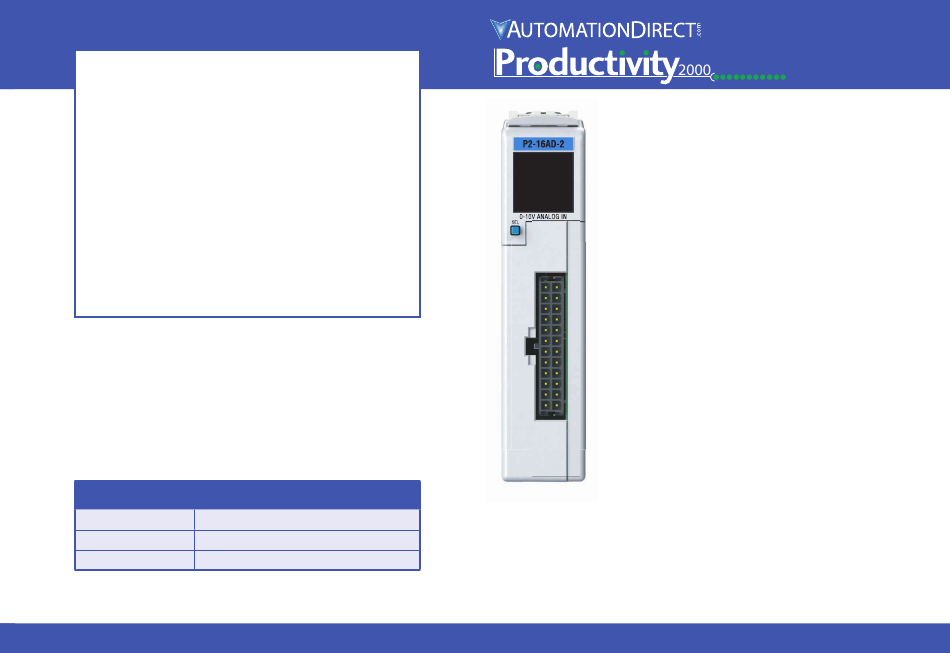

P2-16AD-2 Analog Input

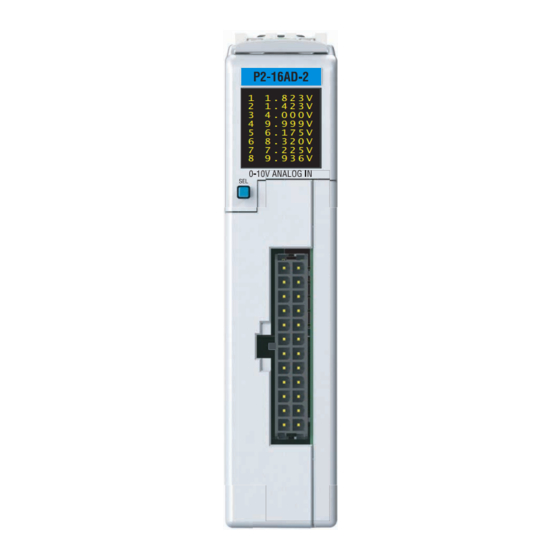

The P2-16AD-2 Voltage Analog Input Module
1
1 . 8 2 3 V
2
1 . 4 2 3 V
provides sixteen channels for receiving 0-10
3
4 . 0 0 0 V
4
9 . 9 9 9 V
VDC signals for use with the Productivity2000
5
6 . 1 7 5 V
6
8 . 3 2 0 V
System.
7
7 . 2 2 5 V
8
9 . 9 3 6 V
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connector Specifications . . . . . . . . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 7
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Automationdirect.com Productivity 2000 P2-16AD-2
Summary of Contents for Automationdirect.com Productivity 2000 P2-16AD-2
-
Page 1: Table Of Contents
This publication is based on information that was available at the General Specifications ..... . 2 time it was printed. At AutomationDirect.com we constantly strive to ®... -
Page 2: General Specifications
General Specifications Input Specifications Operating Temperature 0º to 60ºC (32º to 140ºF) Input Channels Storage Temperature -20º to 70ºC (-4º to 158ºF) Module Signal Input Range 0–10 VDC Humidity 5 to 95% (non-condensing) Signal Resolution 16-bit Resolution Value of LSB 0–10 VDC = 152μV per count Environmental Air No corrosive gases permitted... -
Page 3: Wiring Diagram And Schematic
Wiring Diagram Schematic Voltage Input Circuits INTERNAL MODULE CIRCUITRY 4-Wire Voltage Transmitter Transmitter AC or DC CH1 ADC Power Supply CH5 ADC 4-Wire Transmitter CH2 ADC CH6 ADC CH3 ADC CH7 ADC CH4 ADC CH8 ADC 3-Wire Voltage Transmitter 24VDC+/-10% CH9 ADC –... -
Page 4: Module Installation Procedure
Before attempting to use the hot- swap feature, be sure to read the hot-swap topic in the programming software’s help file or our online documen- tation at AutomationDirect.com for details on how to plan your installation for use of this powerful feature. www.productivity2000.com... -
Page 5: Wiring Options
Wiring Options Module Configuration ZIPLink Feed Through Modules and Cables¹ Using the Hardware Configuration tool in the Productivity Suite programming software, drag ZIPLink pre-wired and drop the P2-16AD-2 module into the base terminal block cables configuration. Select Automatic Module Verification or No 0.5m (1.6FT) cable ZL-P2-CBL24 Verification and Enable Hot Swap. -
Page 6: Linear Scaling
Linear Scaling Non-Linear Scaling The Scale (Linear) function can be used to: The Scale (Non-Linear) function can be used for Non-Linear applications. • Convert analog field input signals from the range which is native to the analog input module to an application specific range. •... -
Page 7: Oled Panel Display Menus
OLED Panel Display Power On Hold SEL button down to cycle through primary screens. Release button to select screen. PASSED Appears DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY initially UNITS UNITS UNITS SELF SETUP STATUS DECIMAL VOLTS TEST INFO INFO COUNTS COUNTS 0-10VDC These screens will then auto cycle... - Page 8 Document Name Edition/Revision Date P2-16AD-2-DS 2nd Ed. 8/19/2019 Copyright 2014, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity2000.com Tech Support 770-844-4200...
