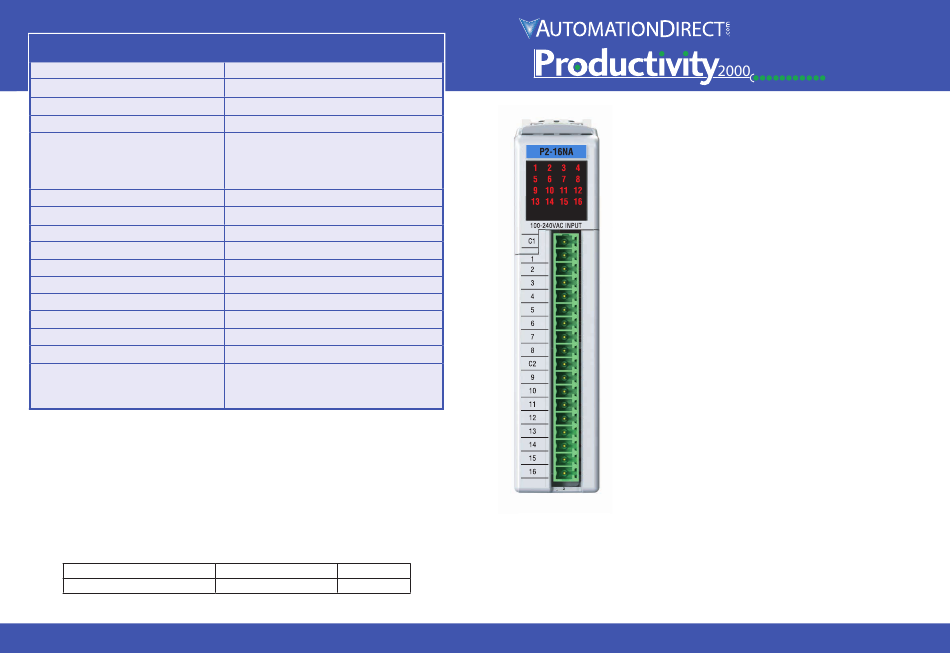

Automationdirect.com Productivity 2000 P2-16NA Manual

Input Specifications
Input Channels
Rated Voltage
Operating Voltage Range
Input Type
Input Current
Maximum Input Current
Minimum ON Current
Maximum OFF Current
Input Impedance
ON Voltage Level
OFF Voltage Level
OFF to ON Response
ON to OFF Response
AC Frequency
Status Indicators
Commons
Document Name
P2-16NA-DS
Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
16
100–240 VAC
80–288 VAC
Sourcing
8.5 mA @ 100VAC (50Hz)
10mA @ 100VAC (60Hz)
17mA @ 240VAC (50Hz)
20mA @ 240VAC (60Hz)
26mA @ 60°C (288VAC)
5mA
2mA
15kΩ (50Hz), 12kΩ (60Hz)
> 70VAC
< 20VAC
< 10ms
< 25ms
47–63 Hz
Logic side (16 points)
2 Isolated for 120V
2 Non-Isolated for 240V
(external jumper required)
Edition/Revision Date
2nd Ed. 9/6/2019
P2-16NA AC Input

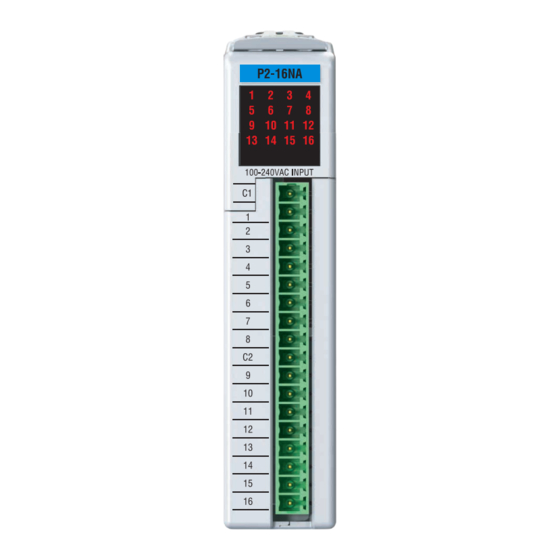

The P2-16NA AC Input Module provides
sixteen 100–240 VAC inputs for use with the
Productivity2000 system.
Input Specifications .................................................. 1
Module Installation ................................................... 2
QR Code .................................................................. 2
Hot Swap Information ............................................... 2
Wiring Options .......................................................... 3
Wiring Diagram and Schematic ................................ 3
Warning .................................................................... 4
Removable Terminal Block Specifications ............... 4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
