Automationdirect.com Productivity 2000 P2-08ADL-1 Manual

WARNING:

To minimize the risk of potential safety problems, you should
follow all applicable local and national codes that regulate the installation
and operation of your equipment. These codes vary from area to area and
it is your responsibility to determine which codes should be followed, and to
verify that the equipment, installation, and operation are in compliance with
the latest revision of these codes.
Equipment damage or serious injury to personnel can result from the
failure to follow all applicable codes and standards. We do not guarantee
the products described in this publication are suitable for your particular
application, nor do we assume any responsibility for your product design,
installation, or operation.
If you have any questions concerning the installation or operation of
this equipment, or if you need additional information, please call Technical
Support at 770-844-4200.
This publication is based on information that was available at the time
it was printed. At AutomationDirect.com
our products and services, so we reserve the right to make changes to
the products and/or publications at any time without notice and without
any obligation. This publication may also discuss features that may not be
available in certain revisions of the product.

Removable Terminal Block Specifications

Part Number
P2-RTB
Number of
18 Screw Terminals
positions
30 - 16 AWG (0.051 - 1.31 mm²)
Solid / Stranded Conductor
Wire Range
3/64 in. (1.2 mm) Insulation Maximum
1/4 in (6 - 7 mm) Strip Length
Conductors "USE COPPER CONDUCTORS, 75ºC" or equivalent.
Screw Driver
Width
Screw Size M2
Screw Torque 2.5 lb·in (0.28 N·m)
Sales 800-633-0405
we constantly strive to improve
®
P2-RTB-1
18 Spring Clamp Terminals
28-16 AWG (0.081 - 1.31 mm²)
Solid / Stranded Conductor
3/64 in (1.2 mm) Insulation Maximum
19/64 in (7 - 8 mm) Strip Length
1/8 in (3.8 mm) Maximum
N/A
N/A
2000

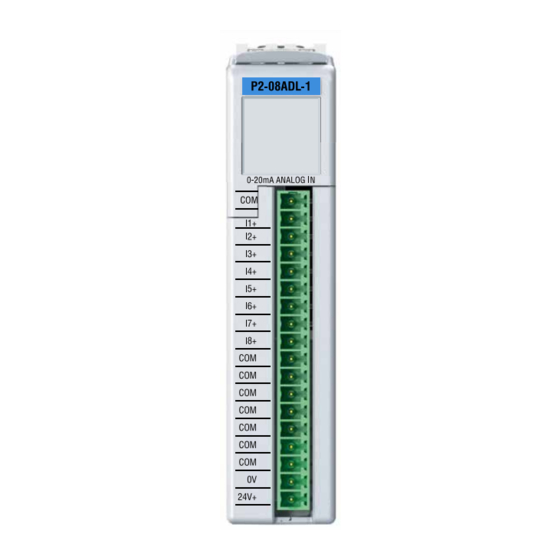

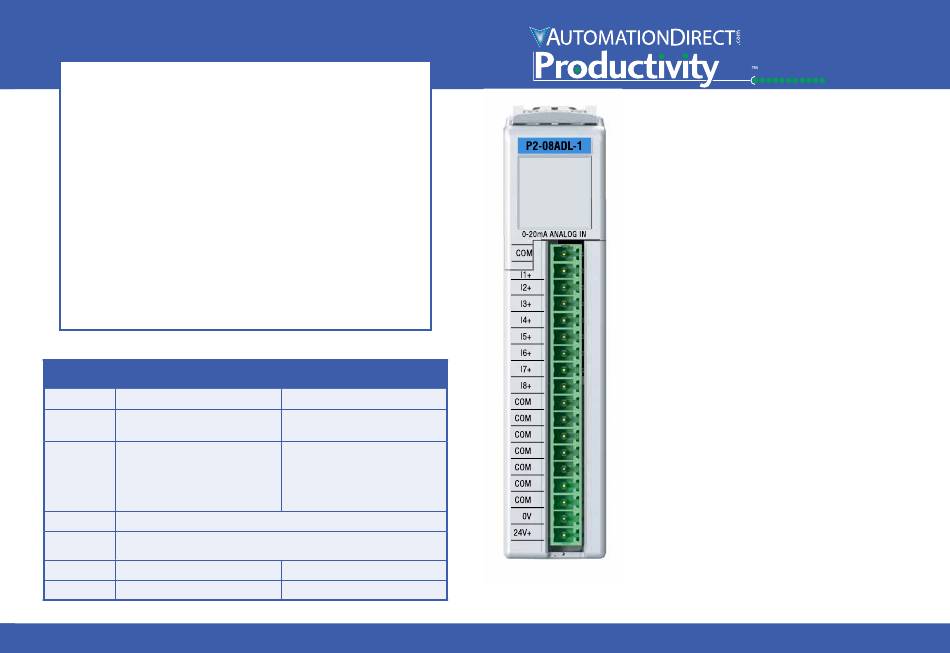

P2-08ADL-1 Analog Input
The P2-08ADL-1 Low Resolution Current Analog Input
Module provides eight channels for receiving 0-20 mA
signals for use with the Productivity2000 system.
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Removable Terminal Block Specifications. . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
Terminal Block sold separately, (see wiring options on page 5).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity2000.com for details).
www.productivity2000.com
1
