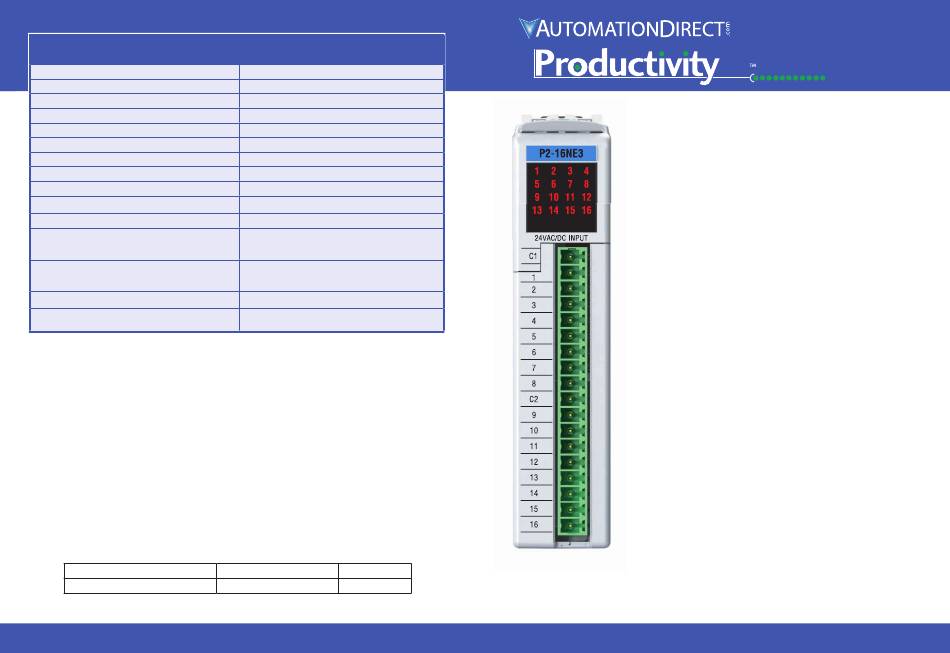

Automationdirect.com Productivity 2000 P2-16NE3 Manual

Input Specifications

Inputs per Module
Operating Voltage Range
Input Voltage Range
Peak Voltage Range
AC Frequency
Input Current (typical)
Maximum Input Current
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons per Module
Document Name
P2-16NE3-DS
Copyright 2014, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
16 (Sink/Source)
24 VAC/VDC
20.4–27.6 VAC/VDC
27.6 VAC/ 30VDC
47–63 Hz
3.4 mA @ 24 VAC/VDC
5.0 mA @ 27.6 VAC/VDC
> 12VDC, > 9VAC
< 10.5VDC, < 9VAC
2.5 mA
0.5 mA
DC: 6ms > max
AC: 10ms
DC: 10ms > max
AC: 20ms
Logic Side (16 Points)
2 (8 points/common) Isolated
Edition/Revision Date
2nd Ed. 9/10/2019
P2-16NE3 AC/DC Input

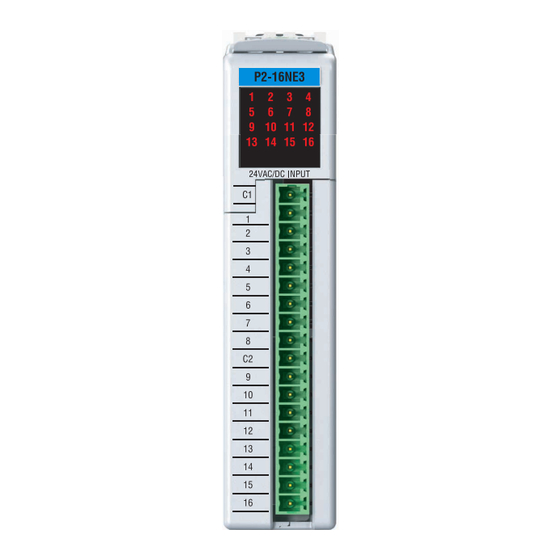

The P2-16NE3 AC/DC Input Module provides
sixteen 24VAC or VDC sink/source inputs
for use with the Productivity2000 system.
Input Specifications .................................................. 1
Module Installation ................................................... 2
Wiring Options .......................................................... 2
Wiring Diagram And Schematic ................................ 3
Qr Code .................................................................. 3
Hot Swap Information ............................................... 3
Warning .................................................................... 4
Removable Terminal Block Specifications ............... 4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 2).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
