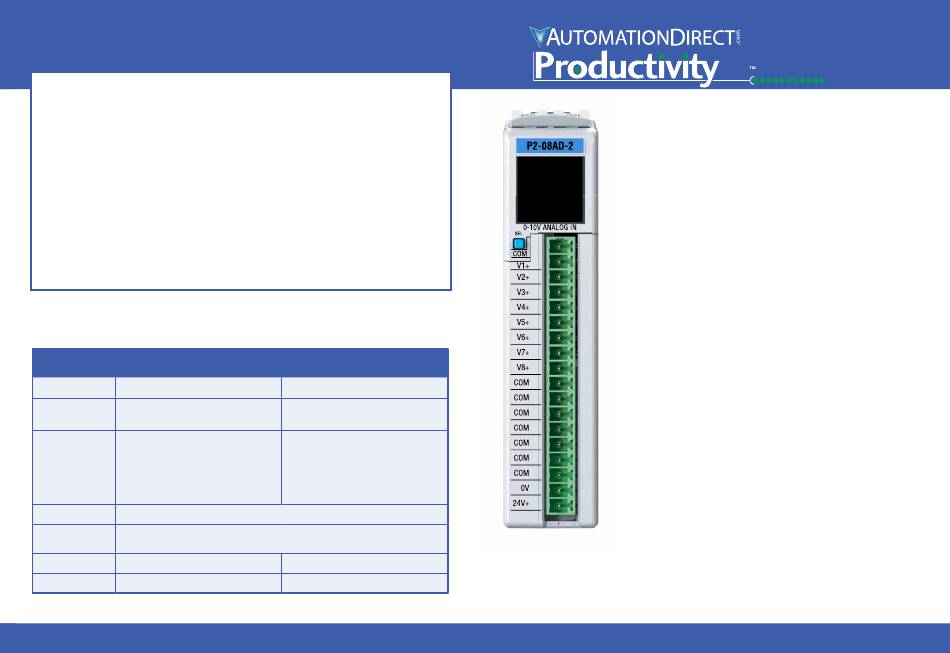

Automationdirect.com Productivity 2000 P2-08AD-2 Manual

WARNING:

To minimize the risk of potential safety problems, you should follow all
applicable local and national codes that regulate the installation and operation of your
equipment. These codes vary from area to area and it is your responsibility to deter-
mine which codes should be followed, and to verify that the equipment, installation,
and operation are in compliance with the latest revision of these codes.
Equipment damage or serious injury to personnel can result from the failure to
follow all applicable codes and standards. We do not guarantee the products
described in this publication are suitable for your particular application, nor do we
assume any responsibility for your product design, installation, or operation.
If you have any questions concerning the installation or operation of this equipment,
or if you need additional information, please call Technical Support at 770-844-4200.
This publication is based on information that was available at the time it was printed.
At AutomationDirect.com we constantly strive to improve our products and services,
®
so we reserve the right to make changes to the products and/or publications at any
time without notice and without any obligation. This publication may also discuss
features that may not be available in certain revisions of the product.

Removable Terminal Block Specifications

Part Number P2-RTB
Number of
18 Screw Terminals
positions
30-16 AWG (0.051 - 1.31 mm²)
Solid / Stranded Conductor
Wire Range
3/64 in. (1.2 mm) Insulation Maximum
1/4 in (6 - 7 mm) Strip Length
"USE COPPER CONDUCTORS, 75ºC" or equivalent.
Conductors
Screw Driver
Width
M2
Screw Size
Screw Torque 2.5 lb·in (0.28 N·m)
Sales 800-633-0405
P2-RTB-1
18 Spring Clamp Terminals
28-16 AWG (0.081 - 1.31 mm²)
Solid / Stranded Conductor
3/64 in (1.2 mm) Insulation Maximum
19/64 in (7 - 8 mm) Strip Length
1/8 in (3.8 mm) Maximum
N/A
N/A
P2-08AD-2 Analog Input

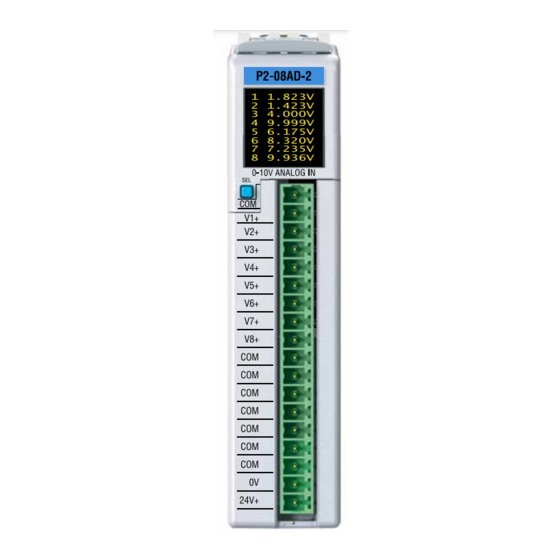

The P2-08AD-2 Voltage Analog Input Module provides
1 1.823V
2 1.423V
eight channels for receiving 0-10 VDC signals for use
3 4.000V
4 9.999V with the Productivity2000 system.
5 6.175V
6 8.320V
7 7.235V
8 9.936V
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Removable Terminal Block Specifications. . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 7
Terminal Block sold separately, (see wiring options on page 5).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity2000.com for details).
www.productivity2000.com
