Automationdirect.com Productivity 2000 P2-8AD4DA-1 Manual

General Specifications
Operating Temperature 0º to 60ºC (32º to 140ºF)
Storage Temperature -20º to 70ºC (-4º to 158ºF)
Humidity 5 to 95% (non-condensing)
Environmental Air No corrosive gases permitted
Vibration IEC60068-2-6 (Test Fc)
Shock IEC60068-2-27 (Test Ea)
Field to Logic Side Isolation 1800VAC applied for 1 second
Insulation Resistance > 10MΩ @ 500VDC
Heat Dissipation 2.47W
Enclosure Type Open Equipment
UL508 File E139594, Canada & USA
Agency Approvals
CE (EN61131-2*)
Module Keying to Backplane Electronic
Module Location Any I/O slot in a Productivity2000 System
Use ZIPLink Wiring System or removable terminal block
Field Wiring
(not included). See "Wiring Options" on page 5.
See the "EU Directive" topic in the Productivity2000
EU Directive Help File. Information can also be obtained at:
www.productivity2000.com
Connector Type (not included) 18-Position Removable Terminal Block
Weight 90g (3.2 oz)
*Meets EMC and Safety requirements. See the D.O.C. for details.
Sales 800-633-0405
2000
P2-8AD4DA-1
Analog Input/Output
1I00.00
2I04.00

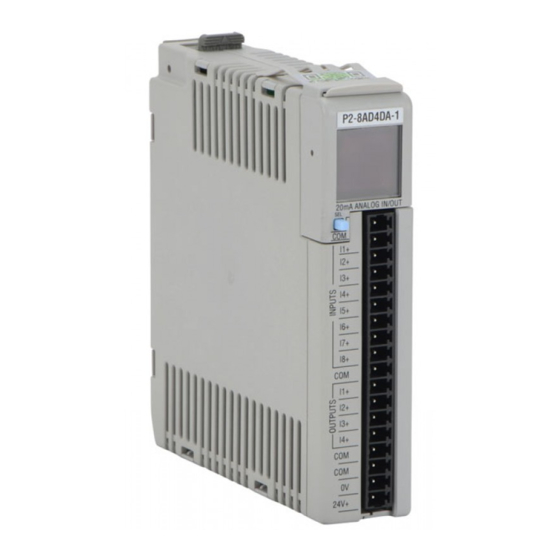

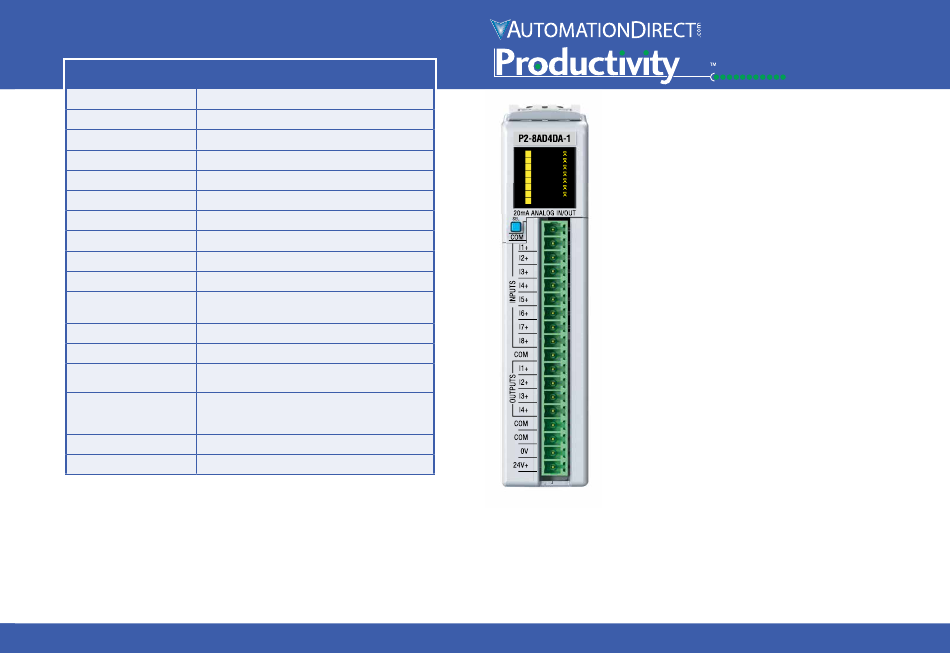

The P2-8AD4DA-1 Current Analog Input/Output
3I00.00
4I04.00
Module provides eight channels of 0-20 mA
5I00.00
6I04.00
inputs and four channels of 4-20 mA outputs
7I00.00
8I SPARE
for use with the Productivity2000 System.
General Specifications . . . . . . . . . . . . . . . . . . . . . . 1
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 3
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 4
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 5
Module Installation Procedure . . . . . . . . . . . . . . . . . 6
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 6
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 7
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Removable Terminal Block Specifications. . . . . . . . 8
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
