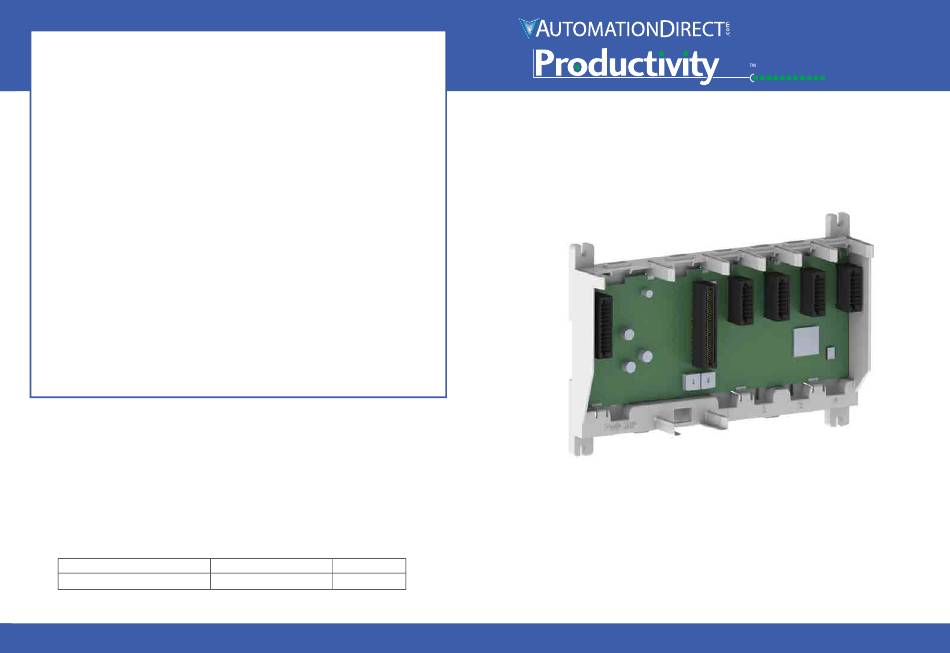

P2-04B, P2-07B, P2-11B,
P2-15B Bases

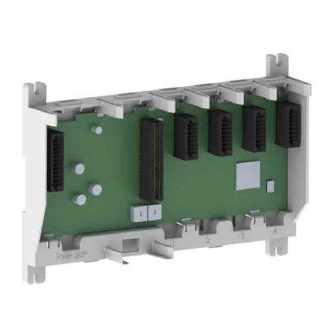

The P2-04B, P2-07B, P2-11B, and P2-15B are multi-slot I/O bases
for use with the Productivity2000 system.
Warning .........................................................................................................1
General Specifications ..................................................................................2
Base Specifications ......................................................................................2
Base Configuration and Dimensions .............................................................3
Panel Mounting Requirements ......................................................................4
DIN Rail Installation ......................................................................................6
Agency Approvals ........................................................................................7
Safety Guidelines .........................................................................................8
Date
Plan for Safety .............................................................................................8
5/14/2018
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
2000
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Automationdirect.com Productivity 2000 P2-07B
Summary of Contents for Automationdirect.com Productivity 2000 P2-07B
-
Page 1: Table Of Contents
Technical Support at 770-844-4200. This publication is based on information that was available at the time it was printed. At Automationdirect.com® we constantly strive to improve our products and services, so we reserve the right to make changes to the products and/or publications at any time without notice and without any obligation. -
Page 2: General Specifications
General Specifications Base Specifications Input or Output Modules per Base 4, 7, 11, or 15 Operating Temperature 0° to 60°C (32° to 140°F) Storage Temperature -20° to 70°C (-4° to 158°F) Power Supply Slots 1 (P2-01AC) Humidity 5 to 95% (non-condensing) CPU Slots 1 (P2-550) Environmental Air... -
Page 3: Base Configuration And Dimensions
Base Configuration and Dimensions 4.37 7.54 [111] [191.5] P2-04B P2-04B P2-04B 4.67 5.06 [118.6] [128.5] 6.99 [177.5] Rotary Switches are for setting the Remote Slave 10.49 [266.4] Node Address. See P2-RS insert for details. P2-07B P2-07B P2-07B inches Note: If CPU is installed 4.67 5.06 [118.6]... -
Page 4: Panel Mounting Requirements
Panel Mounting Requirements Enclosures Your selection of a proper enclosure is important to ensure safe and proper operation of your Productivity2000 system. Applications for the Productivity2000 system vary and may require additional hardware considerations. The minimum considerations for enclosures include: •... - Page 5 Grounding A good common ground reference (earth ground) is essential for proper operation of the Productivity2000 system. One side of all control circuits, power circuits and the ground lead must be prop- erly connected to earth ground by either installing a ground rod in 2”...
-
Page 6: Din Rail Installation
DIN Rail Installation Using Mounting Rails The Productivity2000 bases can be secured to the cabinet using Hook base mounting rails. You should use rails that conform to DIN EN onto DIN rail at standard 50 022. Refer to our catalog for a complete line of DIN top of mount- rail, DINnectors and DIN rail mounted apparatus. -
Page 7: Agency Approvals
Agency Approvals Some applications require agency approvals for particular components. The Productivity2000 agency approvals are listed below: • UL (Underwriters’ Laboratories, Inc.) • CUL (Canadian Underwriters’ Laboratories, Inc.) • CE (European Economic Union) Note: See the “EU Directive” topic in the Productivity2000 User manual. Information can also be obtained at: www.productivity2000.com Sales 800-633-0405 www.productivity2000.com... -
Page 8: Safety Guidelines
Safety Guidelines Plan for Safety WARNING: Providing a safe operating environment for personnel The best way to provide a safe operating environment is to make and equipment is your responsibility and should be your primary personnel and equipment safety part of the planning process. You goal during system planning and installation.
