Automationdirect.com Productivity 2000 P2-08NE3 Manual

Input Specifications

Inputs per Module
Voltage Rating
Input Voltage Range
Peak Voltage Range
AC Frequency
Input Current (typical)
Maximum Input Current
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Document Name
P2-08NE3-DS
Copyright 2015, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
8 (Sink/Source)
24 VAC/VDC
20.4 - 27.6 VAC/VDC
27.6 VAC/ 30VDC
47 - 63 Hz
3.4 mA @ 24 VAC/VDC
5.0 mA @ 27.6 VAC/VDC
> 12VDC, > 9VAC
< 10.5 VDC, < 9VAC
2.5 mA
0.5 mA
DC: 6ms > max
AC: 10ms
DC: 10ms > max
AC: 20ms
Logic Side (8 Points)
2 (4 points/common) Isolated
Edition/Revision Date
1st Ed. 2/26/2015

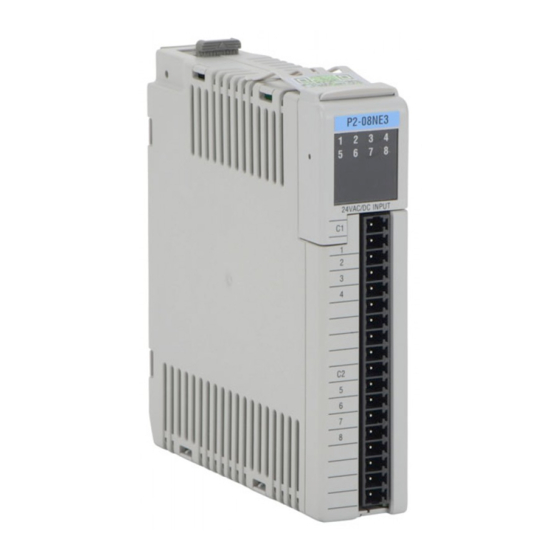

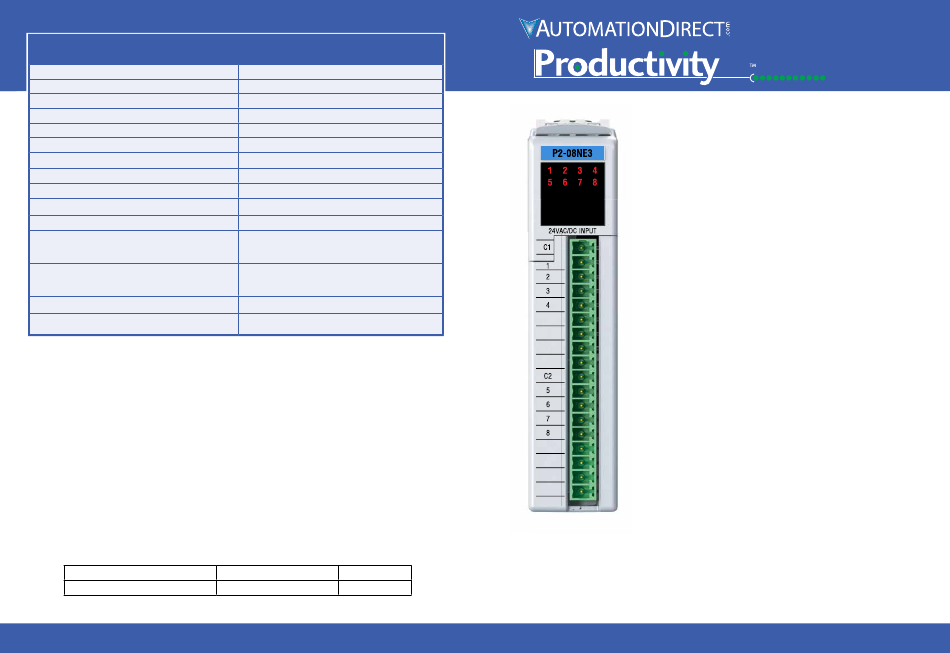

P2-08NE3 AC/DC Input
The P2-08NE3 AC/DC Input Module provides
eight 24VAC or VDC sink/source inputs for
use with the Productivity2000 system.
Input Specifications .................................................. 1
Module Installation ................................................... 2
Wiring Options .......................................................... 2
Wiring Diagram And Schematic ................................ 3
Qr Code .................................................................. 3
Hot Swap Information ............................................... 3
Warning .................................................................... 4
Removable Terminal Block Specifications ............... 4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 2).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
