WARNING:
To minimize the risk of potential safety problems, you should
follow all applicable local and national codes that regulate the installation
and operation of your equipment. These codes vary from area to area and
it is your responsibility to determine which codes should be followed, and to
verify that the equipment, installation, and operation are in compliance with
the latest revision of these codes.
Equipment damage or serious injury to personnel can result from the
failure to follow all applicable codes and standards. We do not guarantee
the products described in this publication are suitable for your particular
application, nor do we assume any responsibility for your product design,
installation, or operation.
If you have any questions concerning the installation or operation of
this equipment, or if you need additional information, please call Technical
Support at 770-844-4200.
This publication is based on information that was available at the time
it was printed. At AutomationDirect.com
our products and services, so we reserve the right to make changes to
the products and/or publications at any time without notice and without
any obligation. This publication may also discuss features that may not be
available in certain revisions of the product.
Removable Terminal Block Specifications
Part Number
P2-RTB
Number of
18 Screw Terminals
positions
30-16 AWG (0.051-1.31 mm²)
Solid / Stranded Conductor
Wire Range
3/64 in. (1.2 mm) Insulation Maximum
1/4 in (6-7 mm) Strip Length
Conductors
"USE COPPER CONDUCTORS, 75ºC" or equivalent.
Screw Driver
Width
Screw Size
M2
Screw Torque
2.5 lb·in (0.28 N·m)
*Recommended Screwdriver TW-SD-MSL-1
Sales 800-633-0405
we constantly strive to improve
®
P2-RTB-1
18 Spring Clamp Terminals
28-16 AWG (0.081-1.31 mm²)
Solid / Stranded Conductor
3/64 in (1.2 mm) Insulation Maximum
19/64 in (7-8 mm) Strip Length
0.1 in (2.5 mm) Maximum*
N/A
N/A
®

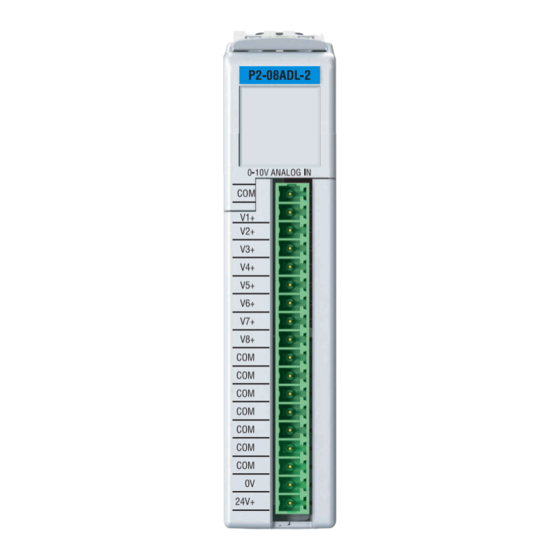

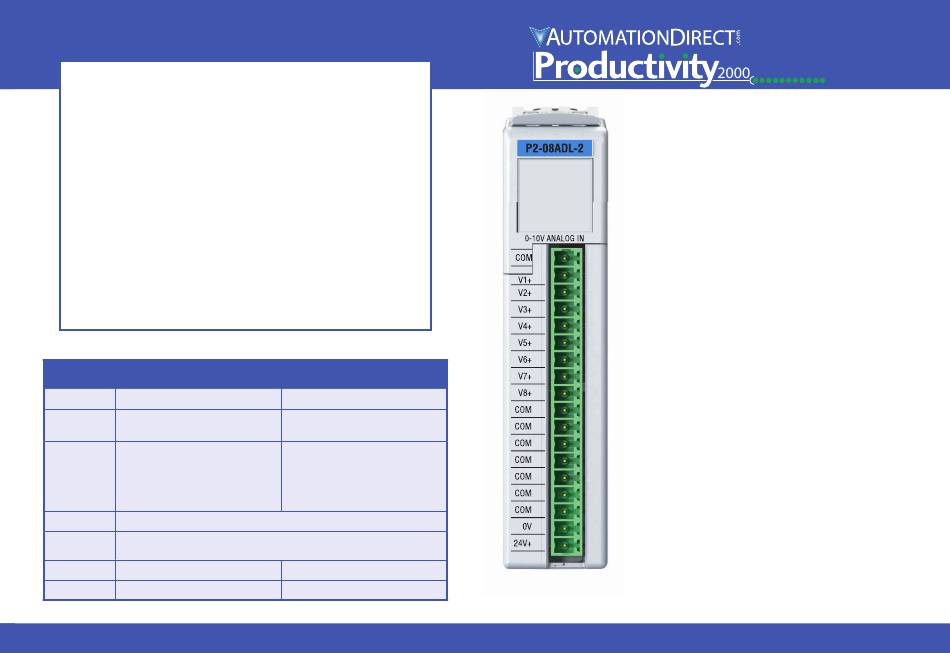

P2-08ADL-2 Analog Input
The P2-08ADL-2 Low Resolution Voltage Analog
Input Module provides eight channels for receiving
0-10 VDC signals for use with the Productivity2000
System.
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Removable Terminal Block Specifications. . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
Terminal Block sold separately, (see wiring options on page 5).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity2000.com for details).
www.productivity2000.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Automationdirect.com Productivity 2000 P2-08ADL-2
Summary of Contents for Automationdirect.com Productivity 2000 P2-08ADL-2
-
Page 1: Table Of Contents
Support at 770-844-4200. System. This publication is based on information that was available at the time it was printed. At AutomationDirect.com we constantly strive to improve ® Warning ........1 our products and services, so we reserve the right to make changes to Removable Terminal Block Specifications. -
Page 2: General Specifications
General Specifications Input Specifications Operating Temperature 0º to 60ºC (32º to 140ºF) Input Channels Storage Temperature -20º to 70ºC (-4º to 158ºF) Module Signal Input Range 0–10 VDC Humidity 5 to 95% (non-condensing) Resolution 13-bit Environmental Air No corrosive gases permitted Data Range 0–8191 counts Vibration... -
Page 3: Wiring Diagram And Schematic
Wiring Diagram Schematic Voltage Input Circuits INTERNAL MODULE CIRCUITRY 4-Wire Voltage Transmitter CH1 ADC CH2 ADC Transmitter AC or DC CH3 ADC Power Supply 4-Wire Transmitter CH4 ADC CH5 ADC CH6 ADC CH7 ADC CH8 ADC 3-Wire Voltage Transmitter – 24 VDC User Supplied Power 3-Wire Transmitter... -
Page 4: Module Installation Procedure
Before attempting to use the hot-swap feature, be sure to read the hot-swap topic in the programming software’s help file or our online docu- mentation at AutomationDirect.com for details on how to plan your installation for use of this powerful feature. www.productivity2000.com... -
Page 5: Wiring Options
Wiring Options Module Configuration ZIPLink Feed Through Modules and Cables¹ Using the Hardware Configuration tool in the Productivity Suite programming software, drag ZL-RTB20 and drop the P2-08ADL-2 module into the ZL-RTB20-1 base configuration. ZL-RTB20-1 Select Automatic Module Verification or No Verification and Enable Hot Swap. -
Page 6: Linear Scaling
Linear Scaling Non-Linear Scaling The Scale (Linear) function can be used to: The Scale (Non-Linear) function can be used for Non-Linear applications. • Convert analog field input signals from the range which is native to the analog input module to an application specific range. •... - Page 7 Sales 800-633-0405 www.productivity2000.com...
- Page 8 Document Name Edition/Revision Date P2-08ADL-2-DS 3rd Ed. 8/20/2019 Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity2000.com Tech Support 770-844-4200...
