Automationdirect.com Productivity 2000 P2-08NAS Manual

Input Specifications

Inputs per Module
Rated Voltage
Operating Voltage Range
AC Frequency
Input Current
Maximum Input Current @ Temp
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Sales 800-633-0405
8
100–120 VAC
80–144 VAC
47–63 Hz
8.5 mA @ 100VAC (50Hz)
10mA @ 100VAC (60Hz)
13mA @ 60°C (144VAC)
12kΩ (50Hz), 12kΩ (60Hz)
> 70VAC
< 20VAC
5mA
2mA
< 10ms
< 25ms
Logic side (8 points)
8 Isolated (1 point / common)
P2-08NAS AC Isolated
Input
P2-08NAS

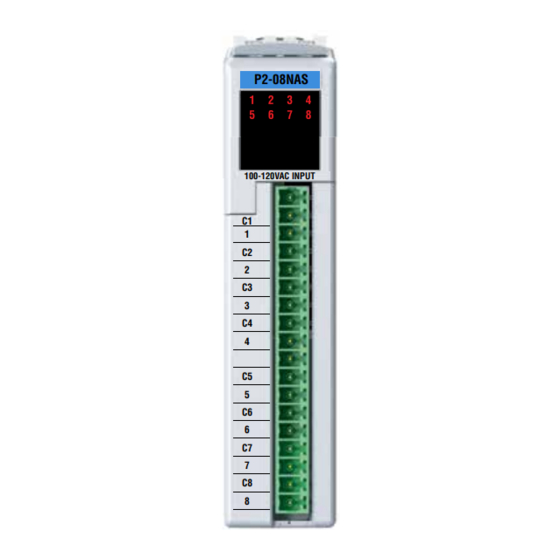

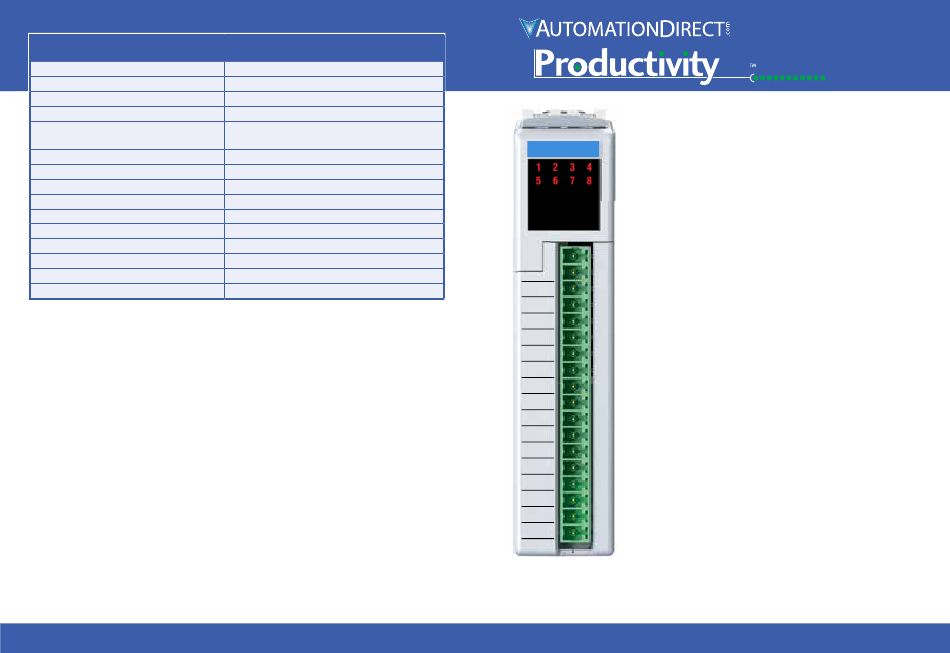

The P2-08NAS AC Isolated Input Module provides
eight 100–120 VAC isolated inputs for use with
the Productivity2000 system.
100-120VAC INPUT
Input Specifications . . . . . . . . . . . . 1
Module Installation Procedure . . . . 2
Terminal Block Removal . . . . . . . . 2
C1
Hot Swap Information . . . . . . . . . . 2
1
Wiring Options . . . . . . . . . . . . . . . . 3
C2
Schematic and Wiring Diagram . . . 3
2
Warning . . . . . . . . . . . . . . . . . . . . . 4
C3 Removable Terminal Block
Specifications . . . . . . . . . . . . . . . . 4
3
General Specifications . . . . . . . . . 4
C4
4
C5
5
C6
6
C7
7
C8
8
Terminal Block sold separately (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
