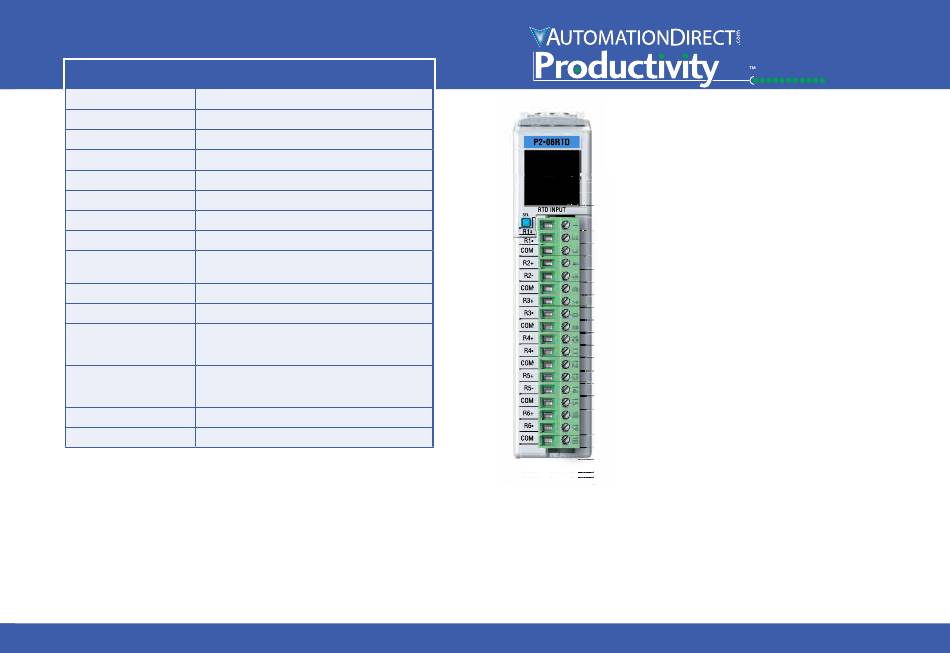

Automationdirect.com Productivity 2000 P2-06RTD Manual

General Specifications

Operating Temperature 0º to 60ºC (32º to 140ºF)
Storage Temperature -20º to 70ºC (-4º to 158ºF)
Humidity 5 to 95% (non-condensing)
Environmental Air No corrosive gases permitted
Vibration IEC60068-2-6 (Test Fc)
Shock IEC60068-2-27 (Test Ea)
Heat Dissipation 300mW
Enclosure Type Open Equipment
UL508 File E139594, Canada & USA
Agency Approvals
CE (EN61131-2*)
Module Keying to Backplane Electronic
Module Location Any I/O slot in a Productivity2000 System
Removable terminal block (included).
Field Wiring The P2-06RTD module is not compatible with the
ZIPLink wiring system.
See the "EU Directive" topic in the Productivity2000
EU Directive Help File. Information can also be obtained at:
www.productivity2000.com
Connector Type (included) 18-position removable terminal block
Weight 90g (3.2 oz)
*Meets EMC and Safety requirements. See the D.O.C. for details.
Sales 800-633-0405

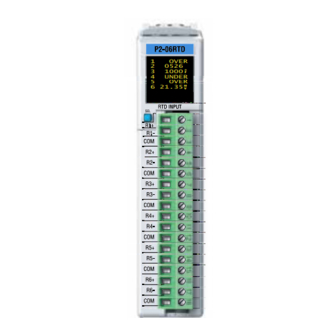

P2-06RTD Analog Input
1 1 OVER OVER
The P2-06RTD input module provides six differential
2 2 0526 0526
3 3 1000 1000 ° °
channels for receiving RTD and resistance input
F F
4 4 4 UNDER UNDER UNDER
5 5 5 5 5 OVER OVER OVER OVER OVER
signals for use with the Productivity2000 System.
6 21.35 6 21.35
M M
V V
General Specifications . . . . . . . . . . . . . . . . . . . . . . 1
RTD Input Specifications . . . . . . . . . . . . . . . . . . . . . 2
Resistance Input Specifications . . . . . . . . . . . . . . . 2
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Typical Application Example . . . . . . . . . . . . . . . . . . 6
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 7
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Removable Terminal Block Specifications. . . . . . . . 8
Terminal Block Included. Not Compatible with ZIPLink.
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity2000.com for details).
www.productivity2000.com
