Automationdirect.com Productivity 2000 P2-32NE3 Manual

Input Specifications
Inputs per Module
Operating Voltage Range (Tolerance)
Input Voltage Range
Peak Voltage Range
AC Frequency
Input Current
Maximum Input Current @ Temp
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons per Module
Sales 800-633-0405
32 (Sink/Source)
24 VAC/VDC
20.4 - 27.6 VAC/VDC
27.6 VAC/VDC
47-63 Hz
Typ 3.4mA @ 24VAC/VDC
5.0mA @ 27.6 VAC/VDC
> 12 VDC, > 9 VAC
< 10.5 VDC, < 9 VAC
2.5mA
0.5mA
DC: 10ms > max
AC: 20ms
DC: 20ms > max
AC: 40ms
Logic Side (32 Points)
4 Isolated (8 points/common)

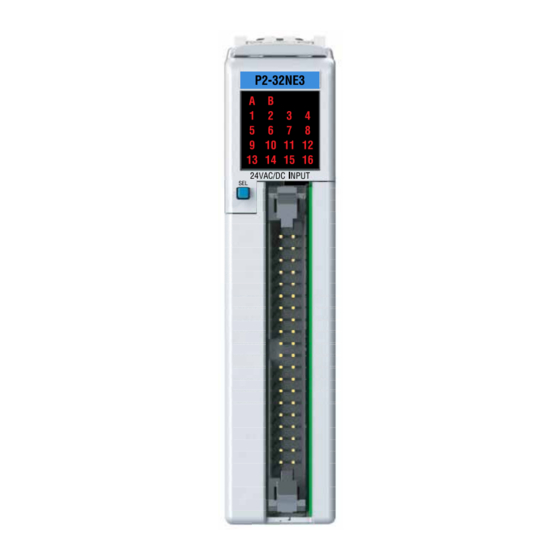

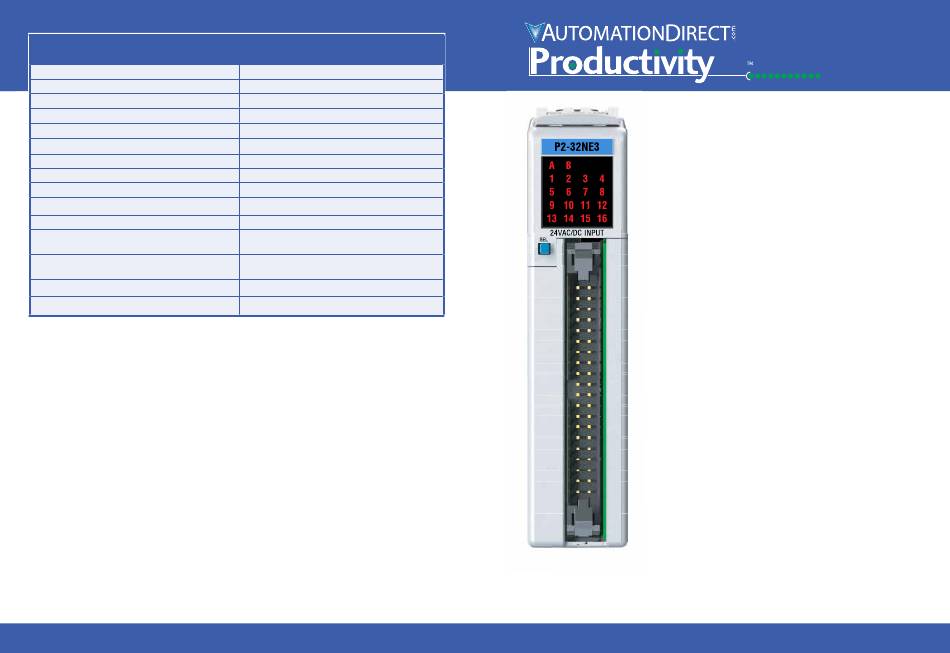

P2-32NE3 AC/DC Input
The P2-32NE3 AC/DC Input Module provides
thirty-two 24VAC or VDC sink/source inputs
for use with the Productivity2000 System.
Input Specifications .................................................. 1
Module Installation Procedure .................................. 2
QR Code .................................................................. 2
Hot Swap Information ............................................... 3
Wiring Options .......................................................... 3
Wiring Diagram and Schematic ................................ 3
Warning .................................................................... 4
Connector Specifications .......................................... 4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
