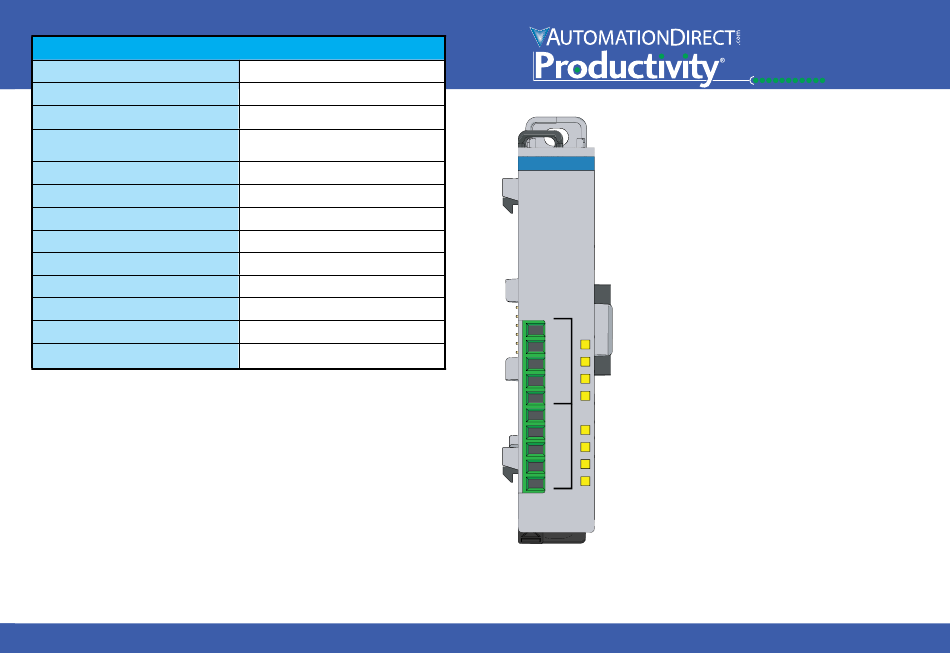

Automationdirect.com Productivity 1000 P1-08ND3 Manual

Input Specifications
Inputs per Module
Rated Voltage
Operating Voltage Range
Input Current
Maximum Input Current
Input Impedance
Minimum ON Current
Maximum OFF Current
ON Voltage Level
OFF Voltage Level
OFF to ON, ON to OFF Response
Status Indicators
Commons
Sales 800-633-0405
8 (sink/source)
12–24 VDC
10.2–26.4 VDC
3.5 mA @ 12VDC
8.4 mA @ 24VDC
10mA @ 26.4 VDC
3k:
1.4mA
1mA
>9.5 VDC
<4.5 VDC
2ms Maximum, 1ms Typical
Logic Side (8 points)
2 (4 points/common)
P1-08ND3 Fast Response Input
P1-08ND3

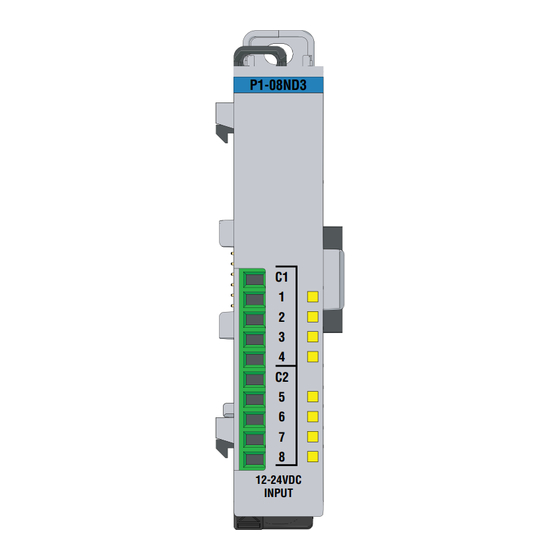

The P1-08ND3 Fast Response Input Module
provides eight inputs for switches and other
devices connected to ground or supplies
ranging from 12–24 VDC for use with the
Productivity1000 system.
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
C1
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
1
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
3
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4
C2
5
6
7
8
12-24VDC
INPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1000
1
