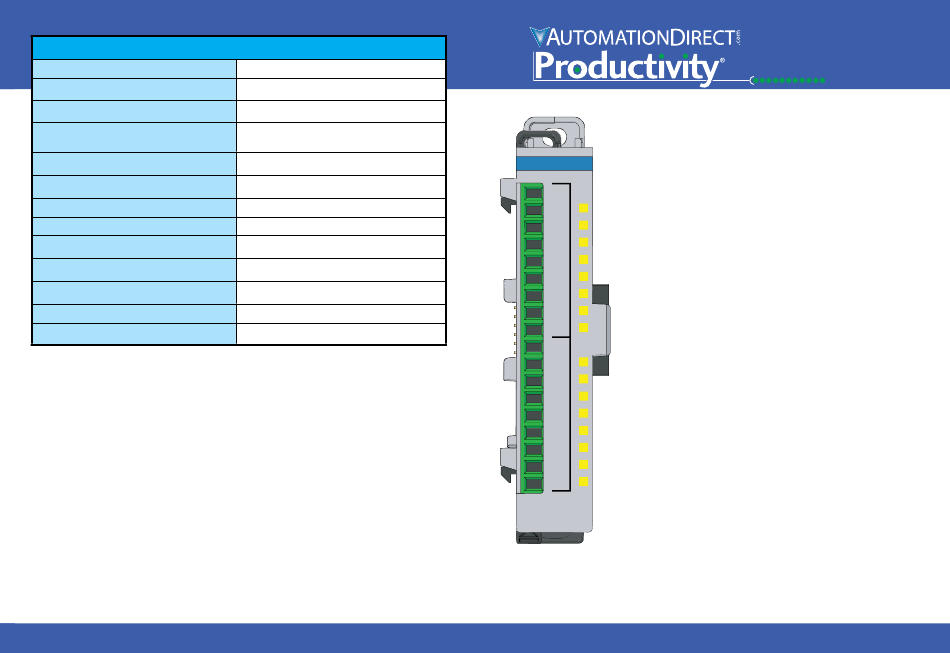

Automationdirect.com Productivity 1000 P1-16ND3 Manual

Automationdirect.com Productivity 1000 P1-16ND3 Manual

Fast response dc input

Advertisement

Quick Links

Input Specifications
Inputs per Module
Rated Voltage
Operating Voltage Range
Input Current
Maximum Input Current
Input Impedance
Minimum ON Current
Maximum OFF Current
ON Voltage Level
OFF Voltage Level
OFF to ON, ON to OFF Response
Status Indicators
Commons Per Module
Sales 800-633-0405
16 (sink/source)
12–24 VDC
10.2–26.4 VDC, Max 30VDC
3.5mA @ 12VDC
7.5 mA @ 24VDC
10mA @ 26.4 VDC
3k:
2mA
1.6 mA
>9VDC
<4.5 VDC
2ms Maximum, 1ms Typical
Logic Side (16 points)
2 (8 points/common) Isolated

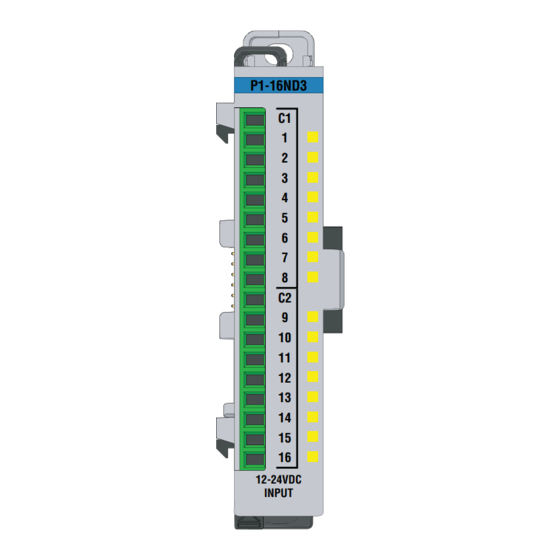

P1-16ND3 Fast Response DC Input
P1-16ND3
The P1-16ND3 Fast Response Input Module
provides sixteen 12–24 VDC sink/source
C1
inputs with two isolated commons for use with
1
the Productivity1000 System.
2
3
4
5
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
6
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
C2
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
9
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
10
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
11
12
13
14
15
16
12-24VDC
INPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1000
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Productivity 1000 P1-16ND3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Automationdirect.com Productivity 1000 P1-16ND3

  • Page 1 Input Specifications Inputs per Module 16 (sink/source) 1000 Rated Voltage 12–24 VDC Operating Voltage Range 10.2–26.4 VDC, Max 30VDC P1-16ND3 Fast Response DC Input 3.5mA @ 12VDC Input Current 7.5 mA @ 24VDC Maximum Input Current P1-16ND3 10mA @ 26.4 VDC The P1-16ND3 Fast Response Input Module Input Impedance provides sixteen 12–24 VDC sink/source...
  • Page 2 Module Installation QR Code WARNING: Do not add or remove modules with field power applied. Step One: With latch in “locked” position, align P1-08TD1 P1-08TD1 connectors on the side of each module and stack by pressing together. Click indicates lock is engaged.
  • Page 3 P1-16ND3 Schematic and Wiring Diagram Wiring Options ZIPLink Feed Through Modules and Cables¹ Equivalent Input Circuit ZL-RTB20 Internal Module Circuitry ZL-RTB20-1 12–24 VDC Optical Isolator ZL-RTB20-1 INPUT ZL-RTB20 0.5 m (1.6 ft) cable ZL-P1-CBL18 1.0 m (3.3 ft) cable ZL-P1-CBL18-1 2.0 m (6.6 ft) cable ZL-P1-CBL18-2 Terminal Block with pigtail cable...
  • Page 4 CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 Safety)* Screw Size *See CE Declaration of Conformance for details. Screw Torque 2.5 lb·in (0.28 N·m) *Recommended Screw Driver TW-SD-MSL-1 Document Name Edition/Revision Date P1-16ND3-DS 2nd Edition 9/17/2019 Copyright 2018, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity1000.com Tech Support 770-844-4200...
