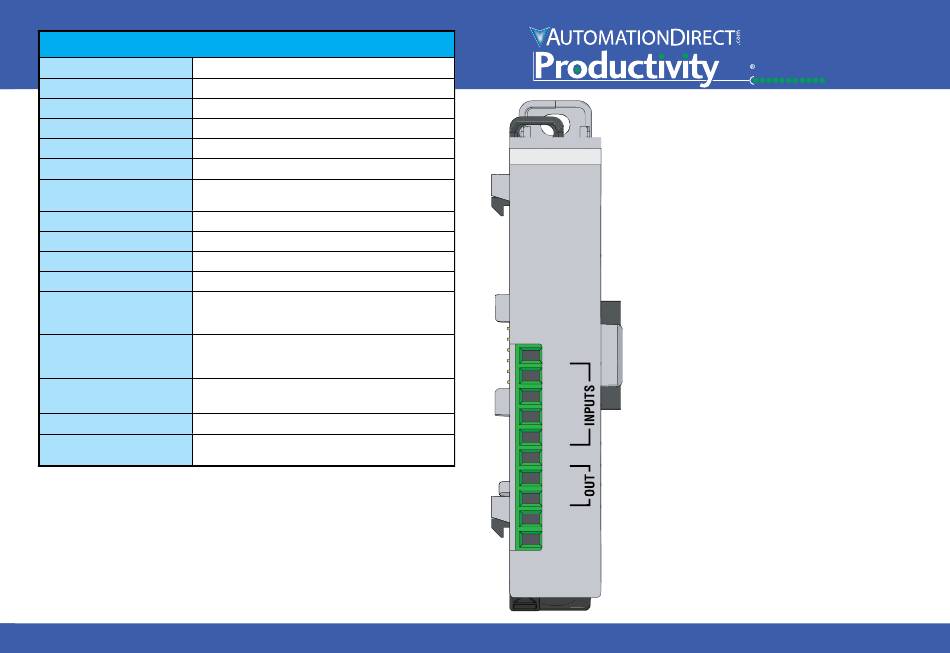

General Specifications
Operating Temperature
0º to 60ºC (32º to 140ºF)
Storage Temperature
-20º to 70ºC (-4º to 158ºF)
Humidity
5 to 95% (non-condensing)
Environmental Air
No corrosive gases permitted
Vibration
IEC60068-2-6 (Test Fc)
Shock
IEC60068-2-27 (Test Ea)
Field to Logic Side
1800VAC applied for 1 second
Isolation
Insulation Resistance
> 10M: @ 500VDC
Heat Dissipation
2470mW
Enclosure Type
Open Equipment
Module Location
Any I/O position in a Productivity1000 System
Removable terminal block (sold separately). Use ZIPLink
Field Wiring
Wiring System optional See "Wiring Options" on page 5.
See the "EU Directive" topic in the Productivity Suite Help
EU Directive
File. Information can also be obtained at:
www.productivity1000.com
Terminal Type
10-position Removable Terminal Block
(sold separately)
Weight
60g (2.1 oz)
UL61010-2-201 file E139594, Canada & USA
Agency Approvals
CE (EN61131-2 EMC and EN61010-2-201 Safety)*
*See CE Declaration of Conformance for details.
Sales 800-633-0405
P1-4ADL2DAL-1 Analog Input/
Output
P1-4ADL2DAL-1

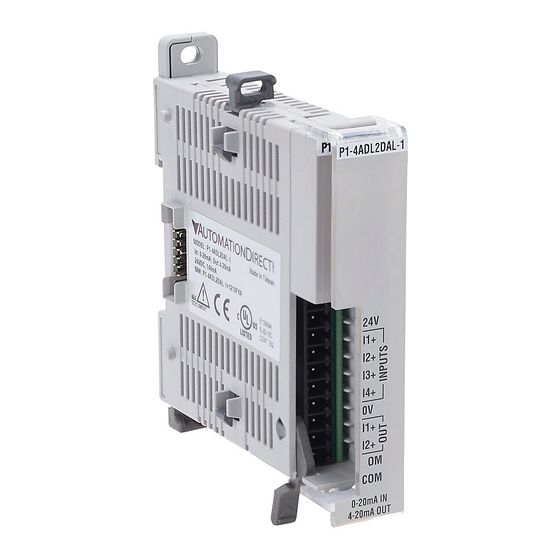

The P1-4ADL2DAL-1 Current Analog Input/Output
Module provides four 13 bit input channels at 0-20
mA and two 12 bit output channels at 4-20 mA for
use with the Productivity1000 system.
General Specifications . . . . . . . . . . . . . . . . . . . . . . 1
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
24V
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
I1+
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
I2+
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
I3+
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Removable Terminal Block Specifications. . . . . . . . 8
I4+
0V
I1+
I2+
COM
COM
0-20mA IN
Terminal Block sold separately, (see wiring options on page 5).
4-20mA OUT
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity1000.com for details).
www.productivity1000.com
1000
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Automationdirect.com Productivity 1000 P1-4ADL2DAL-1
Summary of Contents for Automationdirect.com Productivity 1000 P1-4ADL2DAL-1
- Page 1 General Specifications Operating Temperature 0º to 60ºC (32º to 140ºF) 1000 Storage Temperature -20º to 70ºC (-4º to 158ºF) Humidity 5 to 95% (non-condensing) Environmental Air P1-4ADL2DAL-1 Analog Input/ No corrosive gases permitted Vibration IEC60068-2-6 (Test Fc) Output P1-4ADL2DAL-1 Shock IEC60068-2-27 (Test Ea) The P1-4ADL2DAL-1 Current Analog Input/Output Field to Logic Side...
-
Page 2: Input Specifications
Output Specifications Input Specifications Outputs per Module Inputs per Module Output Range 4–20 mA Module Signal Input Range 0–20 mA Signal Resolution 12-bit Signal Resolution 13-bit Resolution Value of LSB 4–20 mA = 3.9 µA / count (least significant bit) 1 LSB = 1 count Resolution Value of LSB 0–20 mA = 2.44 µA per count... - Page 3 P1-4ADL2DAL-1 Schematic P1-4ADL2DAL-1 Wiring Diagram Current Input Circuits An Edison S500-32-R INTERNAL – 0.032A fast-acting fuse fuse MODULE CIRCUITRY is recommended for all .032A 2-Wire 4-20 mA 4-20 mA current loops. Transmitter ISOLATED ANALOG CIRCUIT POWER – CH1 ADC +24VDC User 2-Wire Transmitter Supplied Power CH2 ADC...
-
Page 4: Module Installation
Module Installation QR Code WARNING: Do not add or remove modules with field power applied. Step One: With latch in “locked” position, align P1-08TD1 P1-08TD1 connectors on the side of each module and stack by pressing together. Click indicates lock is engaged. -
Page 5: Wiring Options
Module Configuration Wiring Options ZIPLink Feed Through Modules and Cables¹ Using the Hardware Configuration tool in the ZL-RTB20 Productivity Suite programming software, drag ZL-RTB20-1 and drop the P1-4ADL2DAL-1 module into the configuration. ZL-RTB20-1 If desired, assign a User Tagname to each ZL-RTB20 0.5 m (1.6 ft) cable ZL-P1-CBL10... -
Page 6: Non-Linear Scaling
Linear Scaling Non-Linear Scaling The Scale (Linear) function can be used to: Non-Linear Scalin • Convert analog field input signals from the range which is native to the The Scale (Non-Linear) function can be used for Non-Linear applications. analog input module to an application specific range. •... - Page 7 Sales 800-633-0405 www.productivity1000.com...
-
Page 8: Terminal Block Specifications
0.1 in (2.5 mm) Maximum* Screw Size Screw Torque 2.5 lb·in (0.28 N·m) *Recommended Screw Driver TW-SD-MSL-1 Document Name Edition/Revision Date P1-4ADL2DAL-1-DS 1st Edition 5/18/2018 Copyright 2018, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity1000.com www.productivity1000.com Tech Support 770-844-4200 Tech Support 770-844-4200...
