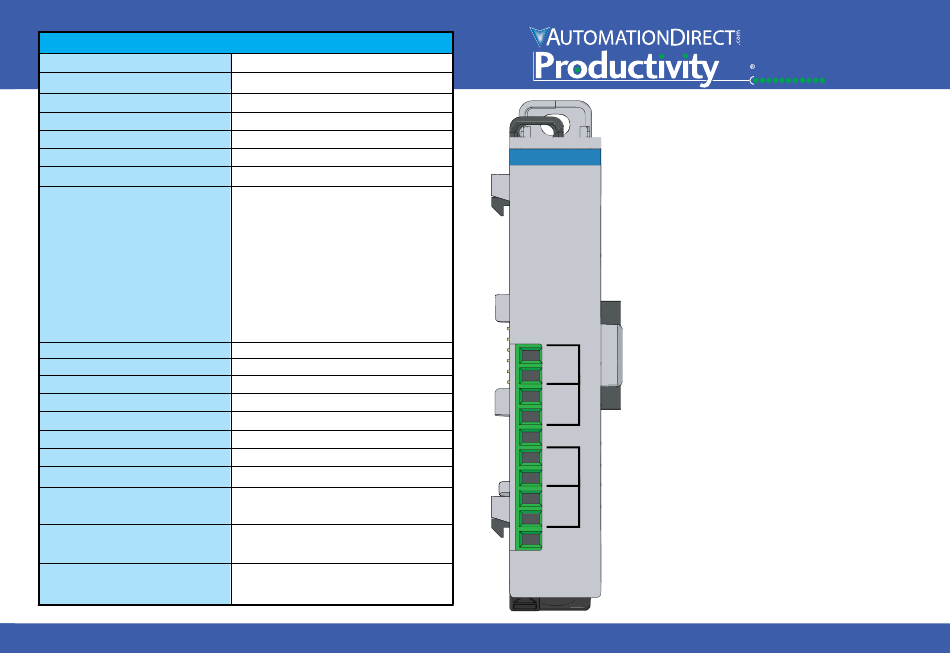

Automationdirect.com Productivity 1000 P1-04THM Manual

Thermocouple Input Specifications
Input Channels
Data Format
Common Mode Range
Common Mode Rejection
Input Impedance
Maximum Ratings
Resolution
Thermocouple Input Ranges
Thermocouple Linearization
Cold Junction Compensation
Sample Duration Time
All Channel Update Rate
Open Circuit Detection Time
Conversion Method
Accuracy vs. Temperature
Maximum Inaccuracy
Linearity Error
Warm-up Time
External Power Supply
Required
Sales 800-633-0405
4 differential
Floating Point
±1.25 V
100dB @ DC
>5MΩ
Fault Protected Inputs to ±50V
16-bit, ±0.1 °C or °F
Type J -190° to 760°C (-310° to 1400°F)
Type E - 210° to 1000°C (-346° to 1832°F)
Type K -150° to 1372°C (-238° to 2505°F)
Type R 65° to 1768°C (149° to 3214°F)
Type S 65° to 1768°C (149° to 3214°F)
Type T -230° to 400°C (-382° to 752°F)
Type B 529° to 1820°C (984° to 3308°F)
Type N -70° to 1300°C (-94° to 2372°F)
Type C 65° to 2320°C (149° to 4208°F)
Automatic
Automatic
270ms
1.08 s
Within 5s
Sigma-Delta
±50ppm per °C (maximum)
±3°C maximum (excluding thermocouple error)
±1°C maximum (±0.5 °C typical)
Monotonic with no missing codes
30 minutes for ±1% repeatability
2 minutes to reach voltage specifications
None
P1-04THM Analog Input
P1-04THM

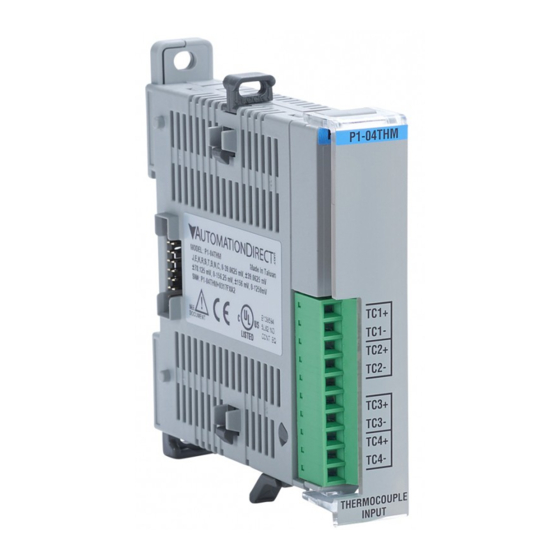

The P1-04THM
provides four differential channels for receiving
thermocouple and voltage input signals for use with
the Productivity1000 system.
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Removable Terminal Block Specifications. . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
TC1+
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TC1-
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
TC2+ Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TC2-
TC3+
TC3-
TC4+
TC4-
THERMOCOUPLE
INPUT
Terminal Block Included. Not Compatible with ZIPLink.
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1000
Thermocouple Input Module
1
