Automationdirect.com Productivity 1000 P1-08NA Manual

Automationdirect.com Productivity 1000 P1-08NA Manual

Ac input

Advertisement

Quick Links

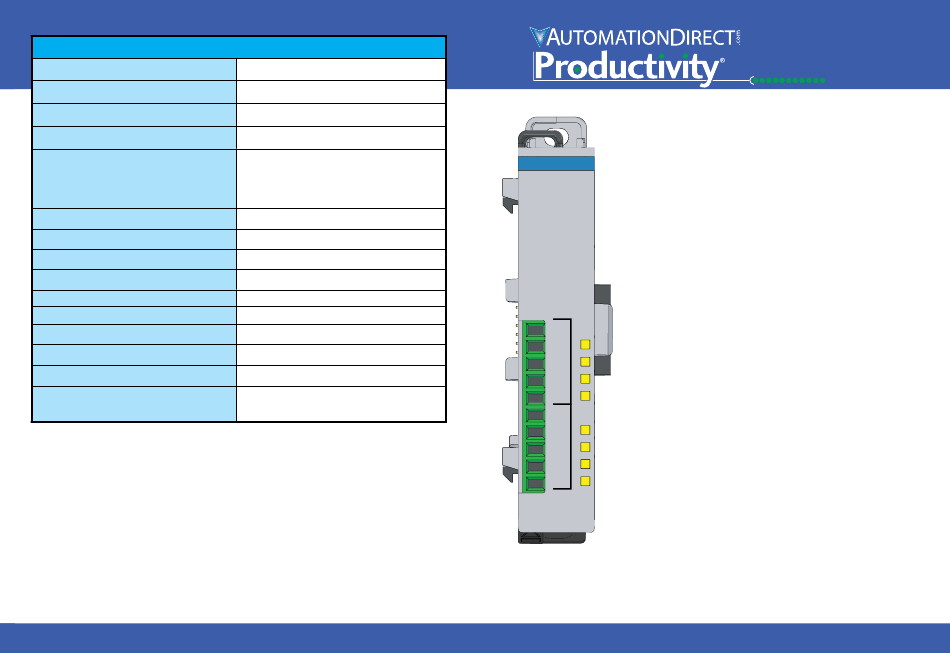

Input Specifications
Inputs per Module
Rated Voltage
Operating Voltage Range
AC Frequency
Input Current
Maximum Input Current @ Temp
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons per module*
*C1 and C2 must be jumped together by an external wire during 240VAC applications.
Sales 800-633-0405
8
100–240 VAC
80–288 VAC
47–63 Hz
7mA @ 100VAC (50Hz)
8.5 mA @ 100VAC (60Hz)
14.2 mA @ 240VAC (50Hz)
17mA @ 240VAC (60Hz)
26mA @ 60°C (288VAC)
15k: (50Hz), 12k: (60Hz)
> 70VAC
< 20VAC
5mA
2mA
< 10ms
< 25ms
Logic Side (8 points)
2 Isolated (4 points/common) @ 120VAC
2 Non-Isolated @ 240VAC

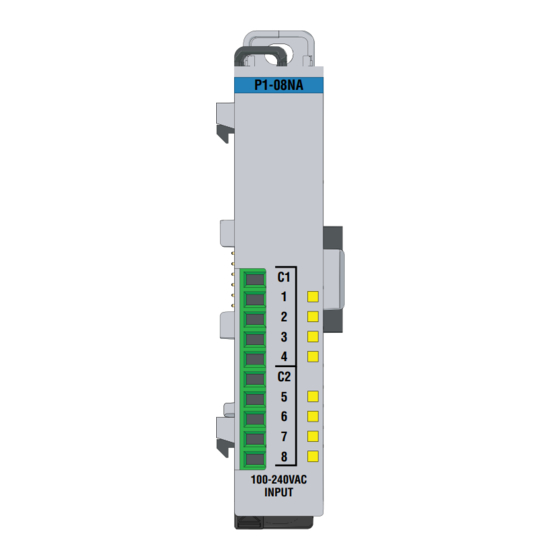

P1-08NA AC Input
P1-08NA
The P1-08NA AC Input Module provides
eight 100–240 VAC inputs for use with the
Productivity1000 system.
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
C1
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
1
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
3
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4
C2
5
6
7
8
100-240VAC
INPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1000
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Productivity 1000 P1-08NA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Automationdirect.com Productivity 1000 P1-08NA

  • Page 1 Input Specifications Inputs per Module 1000 Rated Voltage 100–240 VAC Operating Voltage Range 80–288 VAC P1-08NA AC Input AC Frequency 47–63 Hz 7mA @ 100VAC (50Hz) P1-08NA 8.5 mA @ 100VAC (60Hz) The P1-08NA AC Input Module provides Input Current 14.2 mA @ 240VAC (50Hz) eight 100–240 VAC inputs for use with the 17mA @ 240VAC (60Hz)
  • Page 2 Module Installation QR Code WARNING: Do not add or remove modules with field power applied. Step One: With latch in “locked” position, align P1-08TD1 P1-08TD1 connectors on the side of each module and stack by pressing together. Click indicates lock is engaged.
  • Page 3 P1-08NA Schematic Wiring Options ZIPLink Feed Through Modules and Cables¹ ZL-RTB20 C1/C2 ZL-RTB20-1 ZL-RTB20-1 100–240 VAC 47–63Hz ZL-RTB20 0.5 m (1.6 ft) cable ZL-P1-CBL10 1.0 m (3.3 ft) cable ZL-P1-CBL10-1 2.0 m (6.6 ft) cable ZL-P1-CBL10-2 Terminal Block with pigtail cable 1.0 m (3.3 ft) cable ZL-P1-CBL10-1P ZL-P1-CBL10-2P...
  • Page 4 CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 Screw Size Safety)* *See CE Declaration of Conformance for details. Screw Torque 2.5 lb·in (0.28 N·m) *Recommended Screw Driver TW-SD-MSL-1 Document Name Edition/Revision Date P1-08NA-DS 2nd Edition 9/17/2019 Copyright 2018, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity1000.com Tech Support 770-844-4200...
