Automationdirect.com Productivity 1000 P1-08NE3 Manual

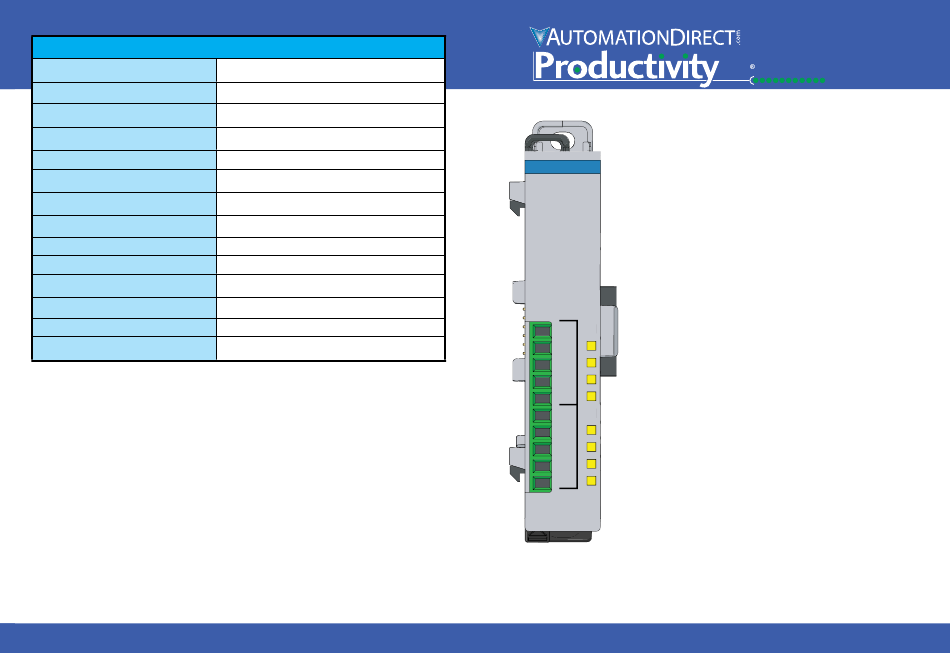

Input Specifications
Inputs per Module
Rated Voltage
Operating Voltage Range
AC Frequency
Input Current
Maximum Input Current
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons per module
Sales 800-633-0405
8 (sink/source)
24VAC/VDC
20.4–27.6 VAC/VDC, Max 27.6 VAC, 30VDC
47–63 Hz
8mA @ 24VAC/VDC
10mA @ 27.6 VAC/VDC
>9.5 VDC, >8VAC
<4.5VDC, <4VAC
2.5 mA
0.5 mA
AC: 10ms DC:6ms > max
AC: 20ms DC: 10ms > max
Logic Side (8 points)
2 (4 points/common) isolated
1000

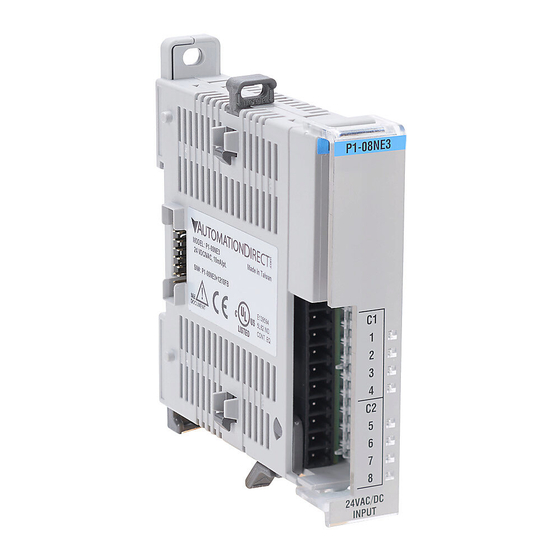

P1-08NE3 AC/DC Input
P1-08NE3
The P1-08NE3 AC/DC Input Module provides
eight 24VAC or VDC sink/source inputs
with two isolated commons for use with the
Productivity1000 system.
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
C1
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
1
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
3
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4
C2
5
6
7
8
24VAC/DC
INPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
