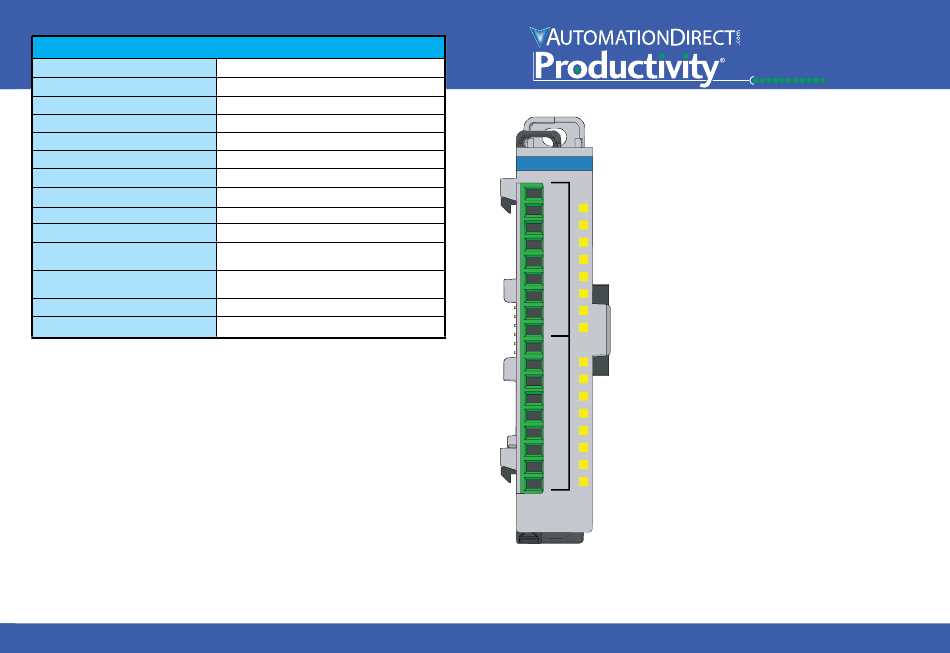

Automationdirect.com Productivity 1000 P1-16NE3 Manual

Input Specifications

Inputs per Module
Rated Voltage
Operating Voltage Range
AC Frequency
Input Current
Maximum Input Current
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons Per Module
Sales 800-633-0405
16 (sink/source)
24VAC/VDC
20.4–27.6 VAC/VDC, Max 30VAC/VDC
47–63 Hz
3.4 mA @ 24VAC/VDC
10mA @ 30VAC/VDC
> 12VDC, > 9VAC
< 10.5 VDC, < 9VAC
2.5 mA
0.5 mA
DC: 6ms > max
AC: 10ms
DC: 10ms > max
AC: 20ms
Logic Side (16 points)
2 (8 points/common) isolated

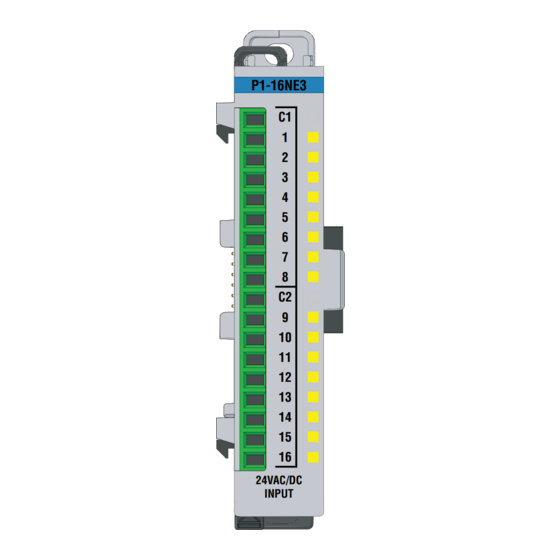

P1-16NE3 AC/DC Input
P1-16NE3
The P1-16NE3 AC/DC Input Module provides
sixteen 24VAC or VDC sink/source inputs
C1
with two isolated commons for use with the
1
Productivity1000 system.
2
3
4
5
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
6
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7
Qr Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
C2
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
9
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
10
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
11
12
13
14
15
16
24VAC/DC
INPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1000
1
