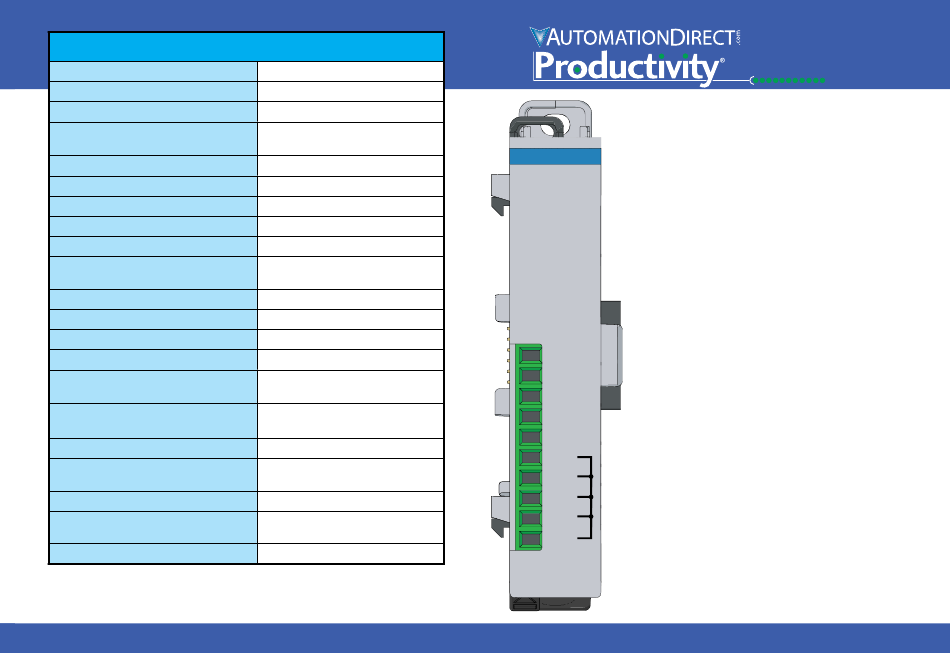

Automationdirect.com Productivity 1000 P1-04ADL-2 Manual

Input Specifications

Input Channels
Input Range
Signal Resolution
Resolution Value of LSB
(least significant bit)
Data Range
Input Type
Maximum Continuous Overload
Input Impedance
Hardware Filter Characteristics
Sample Duration Time
All Channel Update Rate
Open Circuit Detection Time
Conversion Method
Accuracy vs. Temperature
Maximum Inaccuracy
Linearity Error
Input Stability and Repeatability
Full Scale Calibration Error
(including offset)
Offset Calibration Error
Max Crosstalk at DC, 50Hz and
60Hz
External Power Supply Required
Sales 800-633-0405
4
0–10 VDC
13-bit
0–10 VDC = 1.22 mV per count
(1LSB = 1 count)
0–8191 counts
Single-ended (1 common)
±100VDC
150kΩ
Low Pass, -3dB @ 300Hz
2.5 ms per channel
(does not include ladder scan time)
10ms
Zero reading within 100ms
Successive approximation
±75PPM / ºC maximum
0.5% of range
(including temperature drift)
±0.036% of range
Monotonic with no missing codes
±0.024% of range
±0.097% of range
±0.097% of range
±0.049% of range
24VDC (-20% / + 25%), 30mA

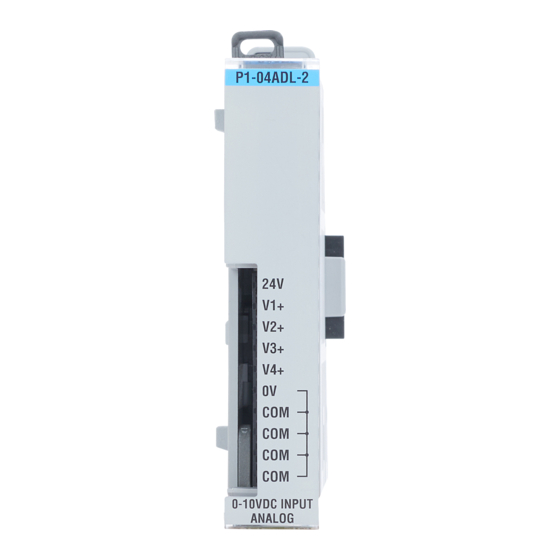

P1-04ADL-2 Analog Input
P1-04ADL-2
The P1-04ADL-2 Low Resolution Voltage Analog
Input Module provides four channels for converting
0–10 VDC analog signals to digital values of 0–8191
(13-bit) for use with the Productivity1000 system.
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Terminal Block Specifications . . . . . . . . . . . . . . . . . 2
Wiring Diagram And Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
24V
Qr Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
V1+
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
V2+ Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
V3+
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
V4+
0V
COM
COM
COM
COM
0-10VDC INPUT
Terminal Block sold separately, (see wiring options on page 5).
ANALOG
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
