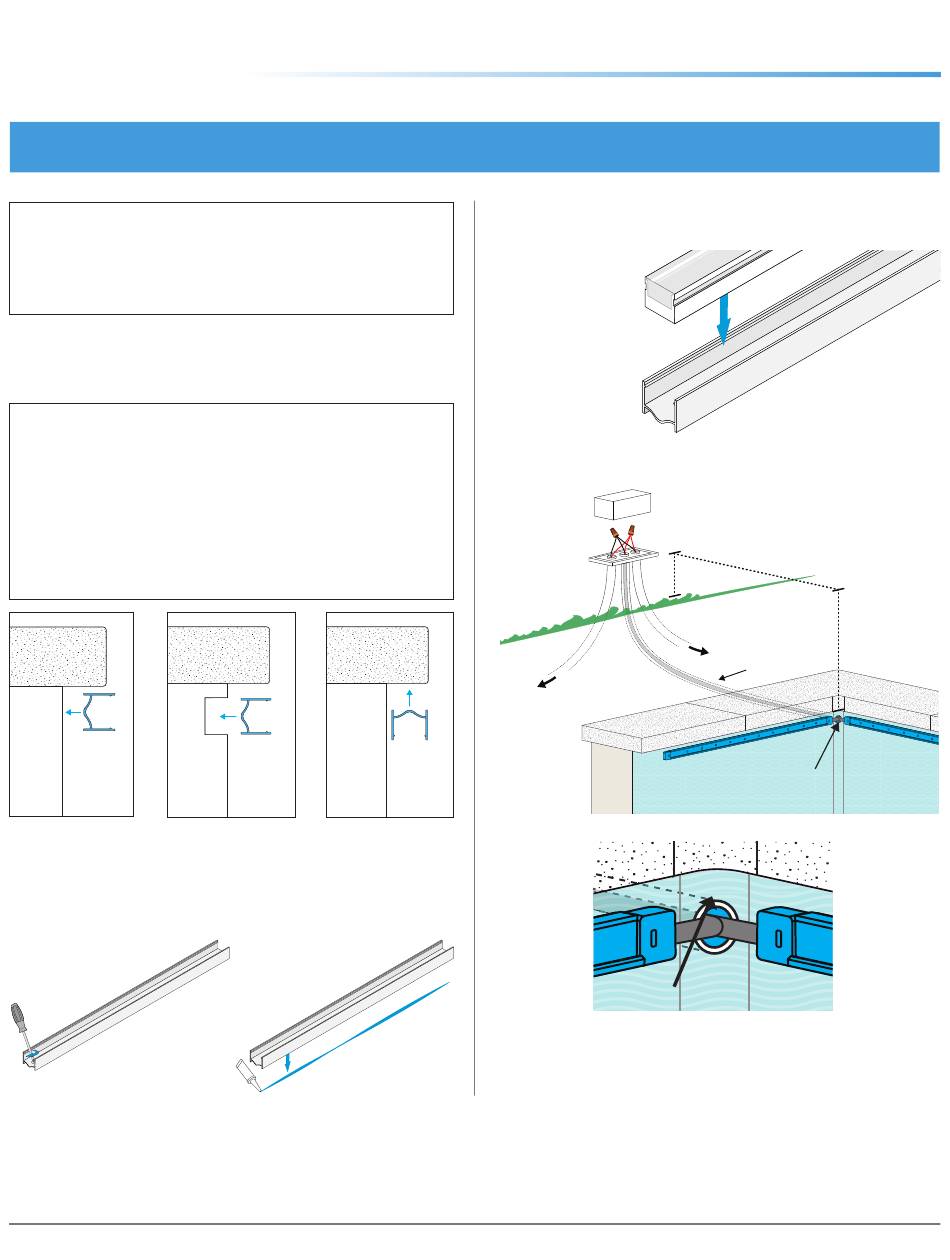

DIODE LED AlphaTECH LED STRIP LIGHT Installation Manual page 5

NEC 680
When installing in water, install in accordance with NEC 680. Per
UL instructions It is required to mount strip light with AlphaTech
Mounting Channel for these applications.
CHANNEL & MOUNTING CLIPS
ATTENTION: FIBERGLASS & VINYL LINED POOLS
Unlike concrete pools, most fiberglass and vinyl lined pools have
strict warranty guidelines that do not allow the user to deface the
pool wall surface. Diode LED does not recommend mounting to
fiberglass or vinyl pool walls and/or defacing the surface in any way
(ex. drilling into surface to route lead wires). It is recommended
to mount to a separate pool coping or lip to ensure your pool
warranty is not voided. Always consult with your pool supplier and
contractor for proper installation of 3rd party products.
Wall Mount
Recessed Mount
(Channel only)
(Channel or Clips)
Concrete Pools Only
Concrete Pools Only
Mount channel to dry surface using either a mounting clip, or chlorine
resistant waterproof adhesive. Allow adhesive to cure/dry.
LED Strip Light INSTALLATION GUIDE
AlphaTECH
®
UNDERWATER/POOL INSTALLATION (UL676)
Coping Mount
(Channel only)
Concrete Pools
Fiberglass Pools
Vinyl-Line Pools
AlphaTECH
®
Once adhesive is dry, firmly press AlphaTECH® into mounting
channel or clips working one end to the other.
Pool / Spa
Junction Box
To Class 2 LED Driver,
GFCI, & Circuit Breaker
For concrete pools, seal conduit entry with pool-grade silicone
sealant. DO NOT drill holes in fiberglass pools/hot tubs or vinyl-
lined pools. An alternate method is to route the wire directly
out of pool.
5 OF 8
LED STRIP LIGHT
INSTALLATION GUIDE
48 in. Min.
J-Box to Edge of Pool
4 in. Min.
To Additonal
AlpaTECH®
Corrosion
Resistant Conduit
Seal Conduit Entry with
pool-grade silicone sealant
8 in. Min.
Bottom of J-box
to Top of Water Line
IG121620-3.0
